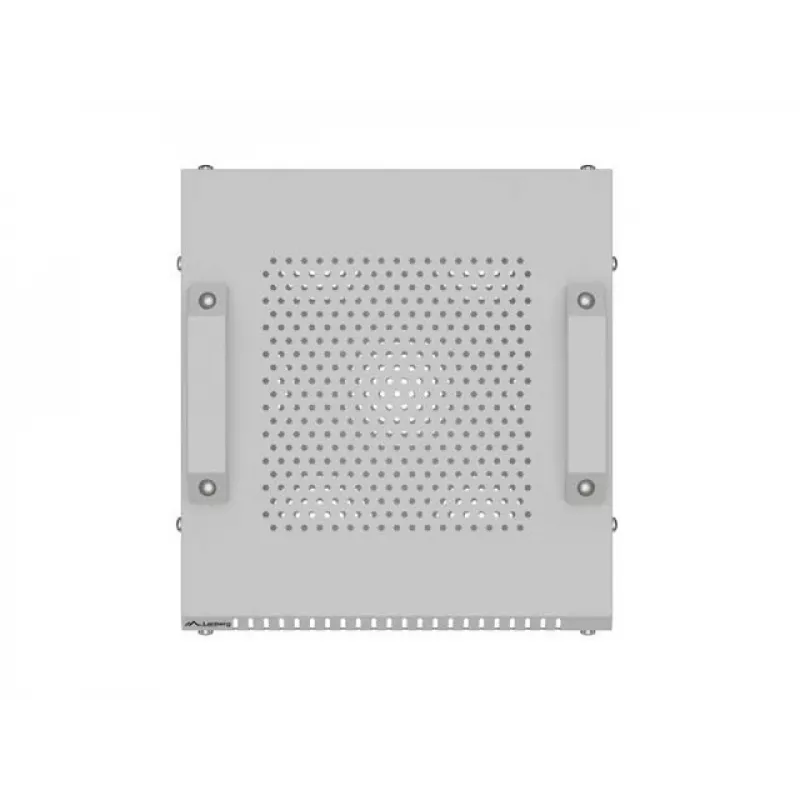

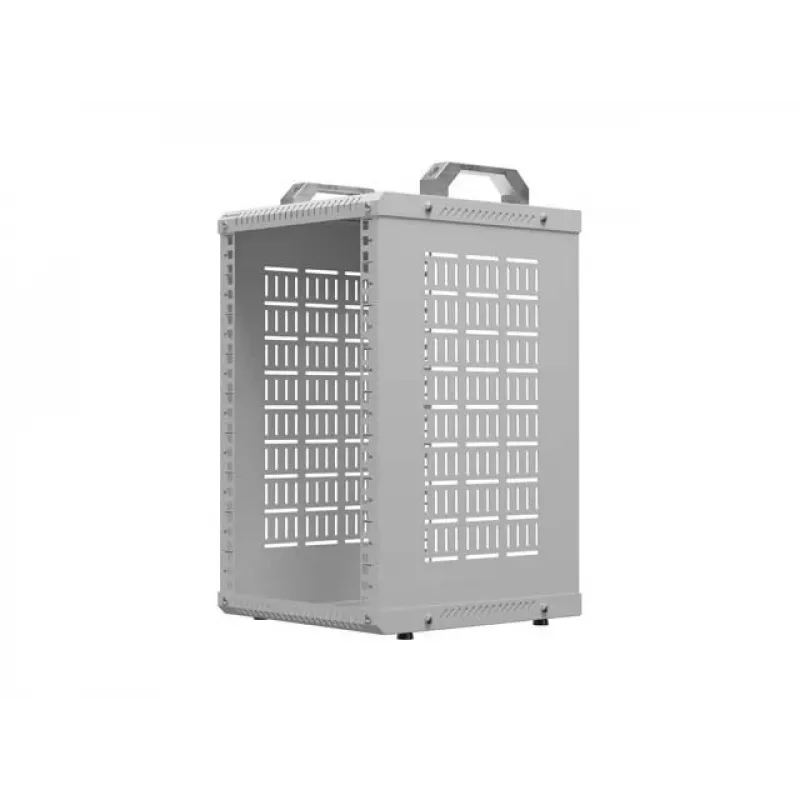

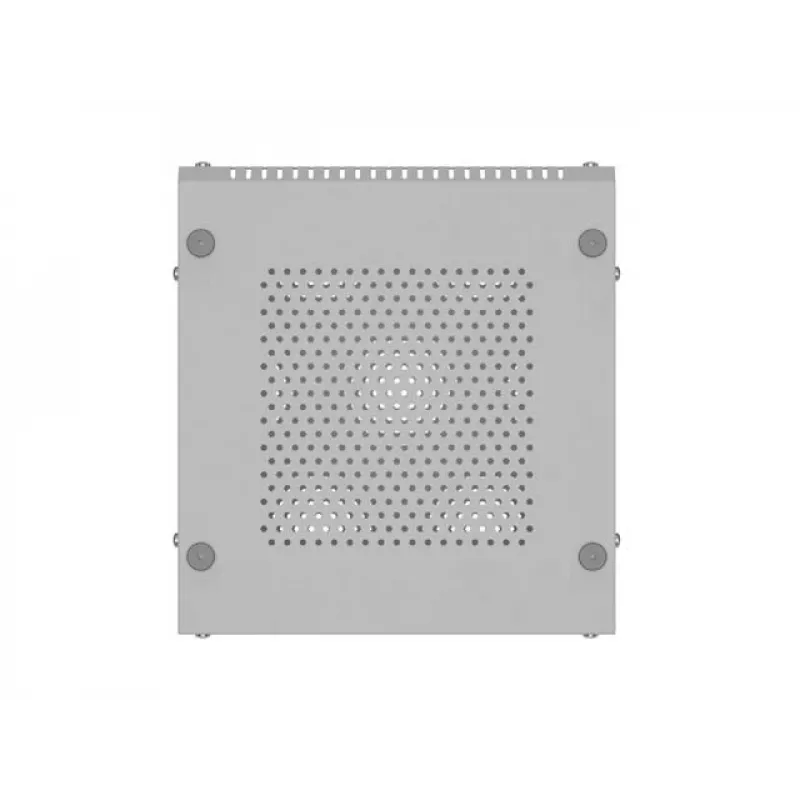

LANBERG OR10-2309-S Open Rack 10 inch 9U 280x300 Grey Wall-Mount/Desktop Steel Rack

For compact IT installations where a full-size 19-inch cabinet would be overkill, the LANBERG OR10-2309-S offers a space-saving 10-inch open frame with 9U capacity. Its 280×300 mm footprint and light grey powder-coated steel construction make it a practical choice for small network enclaves, home labs, or branch offices that need tidy equipment mounting without the bulk.

Highlights

• 9U rack capacity in a 10-inch format, ideal for compact switches, patch panels, and small servers.
• Open frame design ensures passive airflow and easy access to cabling from all sides.
• Wall-mountable or desktop placement – flexible installation to suit your space.
• Sturdy steel frame with RAL 7035 light grey powder coating, rated for up to 20 kg static load.
• Complies with EIA-310-D mounting standards, with M6 cage nuts and screws included.

In daily use

The open frame means no trapped heat: devices stay cool without extra fans, and you can route cables freely through the sides. Assembly is straightforward with the included hardware, and once mounted on a wall or placed on a desk, the rack holds your equipment securely. The light grey finish blends into most office or technical environments.

Full specifications

• Rack type: Open frame rack
• Rack capacity: 9U
• Rack standard width: 10 inches
• External dimensions: 280 mm (W) × 300 mm (D) × 460 mm (H)
• Material: Steel
• Colour: Grey (RAL 7035)
• Mounting type: Wall-mountable / desktop
• Maximum static load: 20 kg
• Assembly: Self-assembly (flat-packed)
• Standard compliance: EIA-310-D
• Ventilation: Passive (open design)
• Cable management: Open frame design
• Included accessories: Mounting screws, M6 cage nuts
• Application: Network, IT, telecommunication installations
• Construction: Modular, bolted
• Finish: Powder coated

Final note

When you need a reliable, no-frills mounting solution for small-scale IT gear, the OR10-2309-S delivers exactly what's required – nothing more, nothing less.
