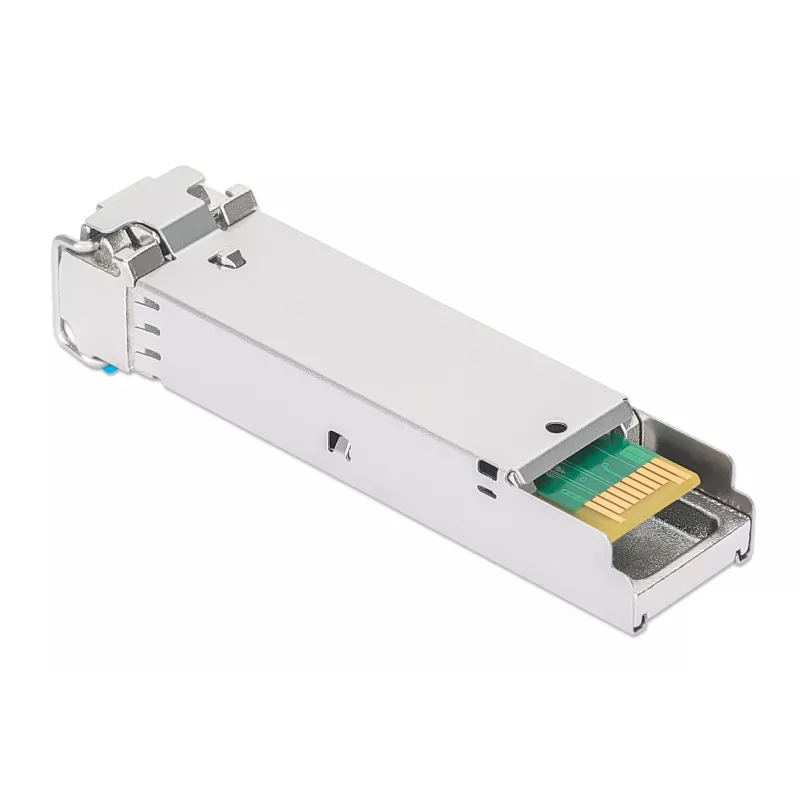

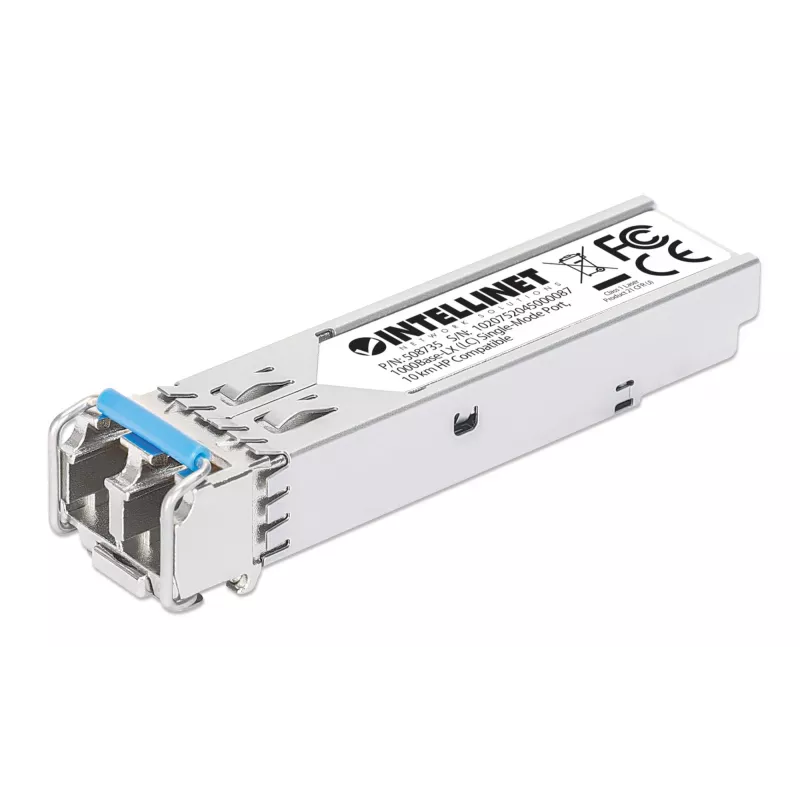

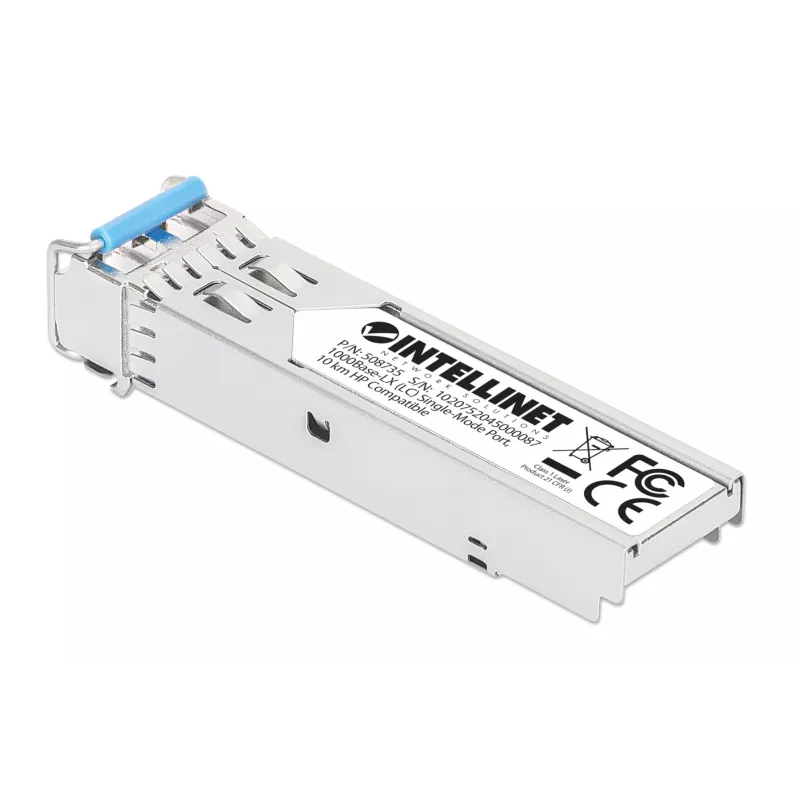

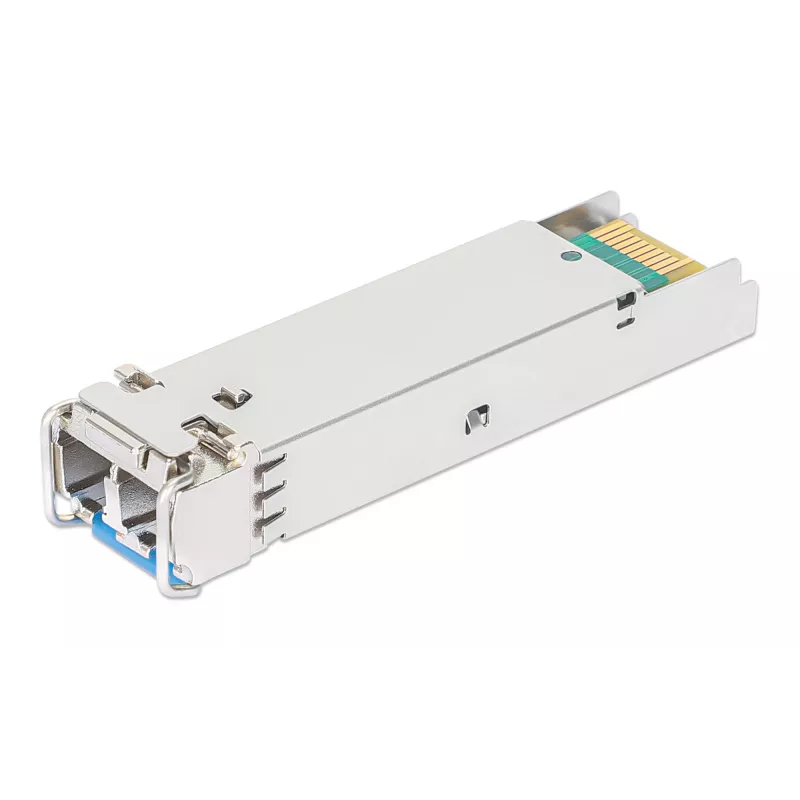

Intellinet Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX (LC) Single-Mode Port, 10 km (6.2 mi.), HPE-compatible, Silver

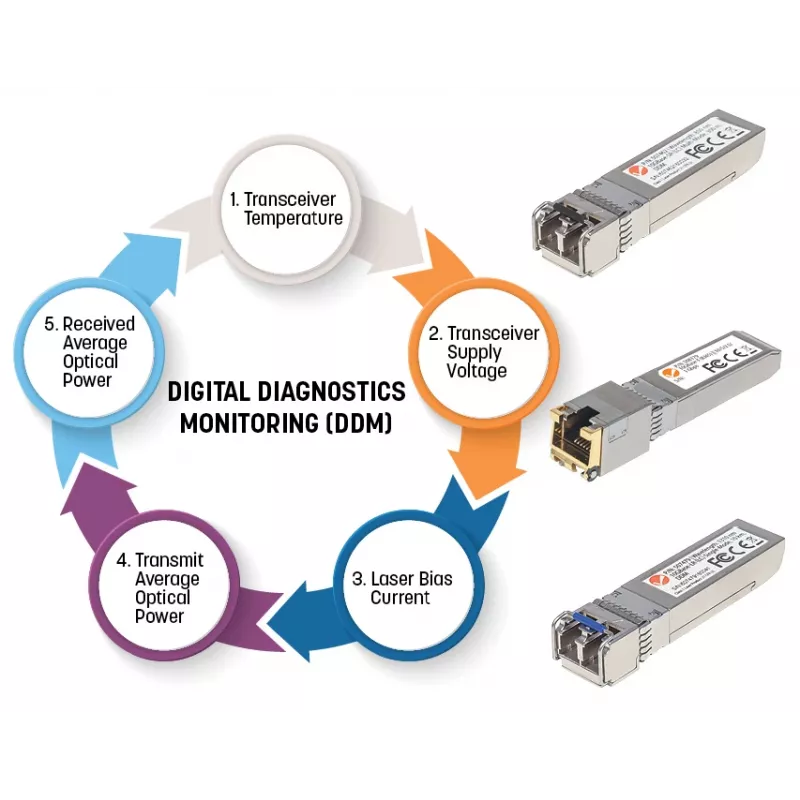

The Intellinet Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX is a single-mode SFP transceiver with an LC connector and a transmission range up to 10 km. HPE-compatible and housed in a metal enclosure, the module supports a data rate of 1000 Mbit/s and includes Digital Diagnostics Monitoring (DDM) for real-time monitoring of optical output/input power, temperature, laser bias current and supply voltage. The compact mini-GBIC form factor is suitable for high-density fiber installations and the unit is hot-pluggable, allowing installation without restarting network equipment.

Advantages

The metal housing improves durability and reduces electromagnetic interference. Compatibility with HP/HPE is provided by broadcasting vendor part numbers J4859A/J4859B/J4859C/J4859D, allowing the transceiver to work with HPE switches and routers. The small SFP form factor saves space in high-density setups, and DDM provides live diagnostic data to help maintain link performance. The transceiver is RoHS, FCC, NDAA, UKCA and CE compliant.

Suitable for

• Single-mode fiber links up to 10 km
• High-density switch and router ports using LC connectors
• HPE-compatible networking equipment requiring 1000Base-LX SFP modules

Key specifications

• Standard: 1000Base-LX
• Connector type: LC
• Fiber type: Single-mode
• Maximum data rate: 1000 Mbit/s
• Maximum transfer distance: 10000 m
• Form factor: SFP (mini-GBIC)
• Housing: Metal (silver)
• Weight: 0.02 kg
• Compatibility: HPE-compatible (broadcasts J4859A/J4859B/J4859C/J4859D)
• Monitoring: Digital Diagnostics Monitoring (DDM/DOM)
• Approvals: RoHS, FCC, NDAA, UKCA, CE

How to use

Insert the SFP transceiver into an appropriate SFP slot on a compatible switch or router until it clicks into place. Connect a single-mode LC fiber cable to the module's LC port, observing correct TX/RX orientation. Because the module is hot-pluggable, it can be installed or removed while the device is powered without interrupting network traffic. Use network management tools or the host device's interface to verify link status and read DDM parameters.

Recommendations

Install the module in equipment that supports 1000Base-LX and HPE-compatible SFPs. For reliable links, use single-mode fiber with appropriate launch power and observe connector cleanliness. Monitor DDM values periodically to detect degradation in optical performance.
