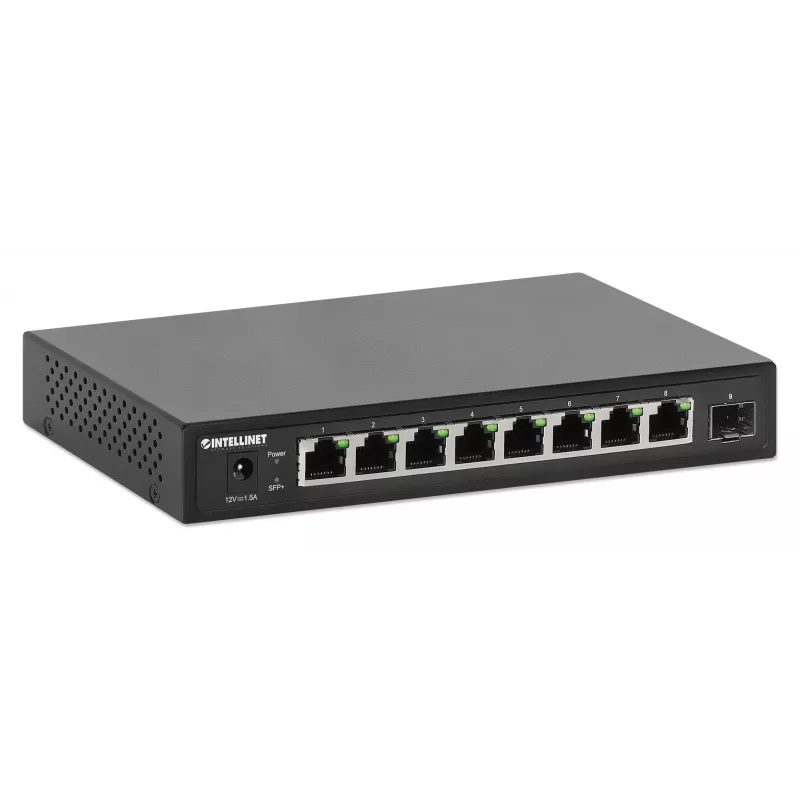

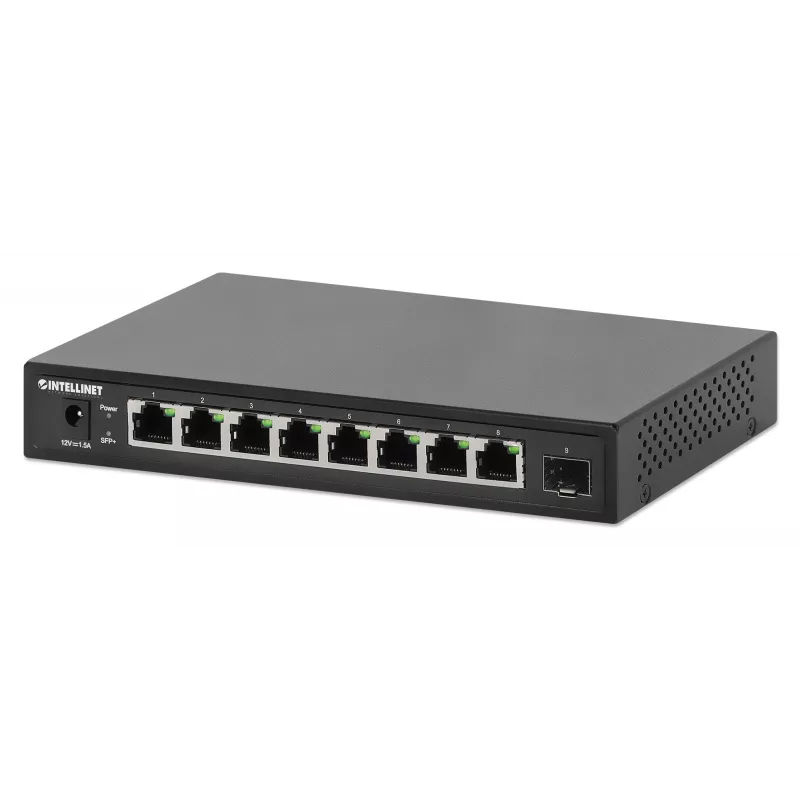

Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink

Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
R3,064
Next-gen 2.5 Gbps Desktop 8+1 Port Network Switch - Supports 10/100/1000/2500 Mbps and 10G UplinkThe 9-Port Switch with 8 x 2.5G Ethernet Ports and 1 SFP+ Uplink from Intellinet Network Solutions passes data to a number of end devices. Equipped with eight multi-gigabit Ethernet copper ports, this Sw... Read More
Stock 9 Code 2374711 Brand Intellinet Model 562096 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Next-gen 2.5 Gbps Desktop 8+1 Port Network Switch - Supports 10/100/1000/2500 Mbps and 10G Uplink
The 9-Port Switch with 8 x 2.5G Ethernet Ports and 1 SFP+ Uplink from Intellinet Network Solutions passes data to a number of end devices. Equipped with eight multi-gigabit Ethernet copper ports, this Switch can deliver network speeds up to 2500 Mbps.

Eliminate bottlenecks with 2.5G capability - great for high-bandwidth Wi-Fi 6 IEEE 802.11ax Access Points and more
Since at least the arrival of Wi-Fi 6 (but even with legacy Wi-Fi 5 [802.11ac]), "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.

10 Gigabit Ethernet (IEEE 802.3ae) on the SFP+ Uplink
Equipped with a 10G SFP+ open slot, this switch is the ideal solution for cost-sensitive organizations considering 10 Gigabit Ethernet. With 10G technology going mainstream and becoming ever more popular, the need for additional bandwidth has become more urgent than ever - even in smaller networks. Whether you wish to connect servers, network-attached-storage units or NVRs at 10 Gbps, or even simply connect to another gigabit switch without resorting to LACP techniques, 10G provides the solution. And in case you are not quite ready for 10G just yet, it will happily take standard 1G SFP transceiver modules until the time is right for you to make the switch.

Intellinet 9 Port Switch 8 x 2.5G Ethernet-Ports and 1 SFP+ Uplink. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Wall mountable

Key Highlights
  • Eight ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
  • 10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
  • One small-form-factor pluggable SFP/SFP+ module slot for 10G uplink capability
  • 60 Gbps switch fabric / switching capacity
  • Backward compatible with 10/100/1000 Mbps devices
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • Supports jumbo frames up to 12 kBytes
  • Store and forward switching architecture
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Supports 4k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 8.1 Mbits
  • Compact desktop format with rugged metal housing
  • LEDs for power and link/activity
  • Fanless design for silent operation
  • Desktop-size metal case

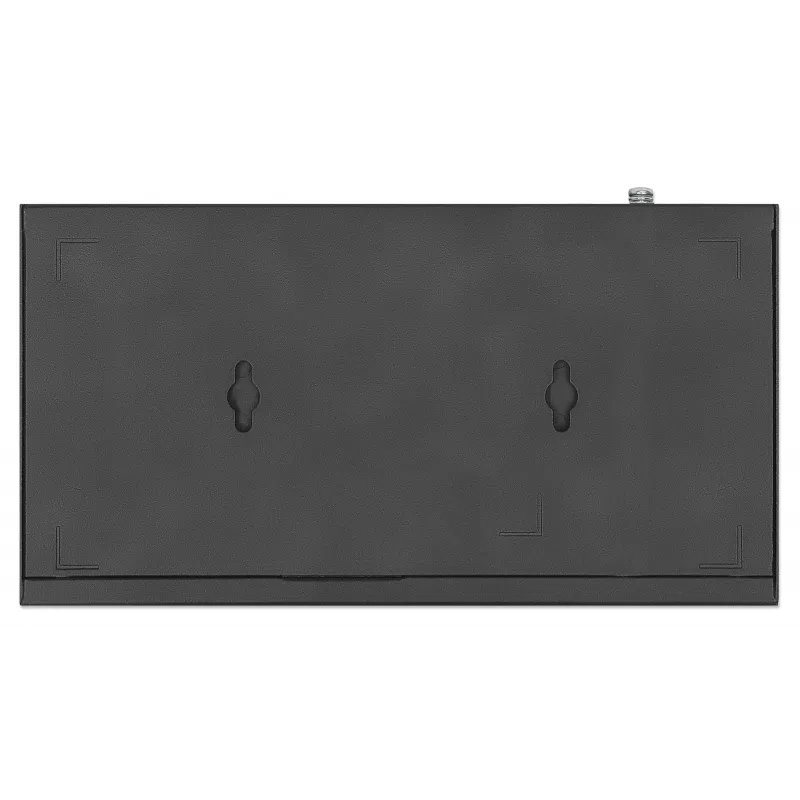

  • Built-in wall-mounting holes and four rubber feet for desktop use
  • Fully NDAA-compliant
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
  • MAC address table: 4000 entries Switching capacity: 60 Gbit/s

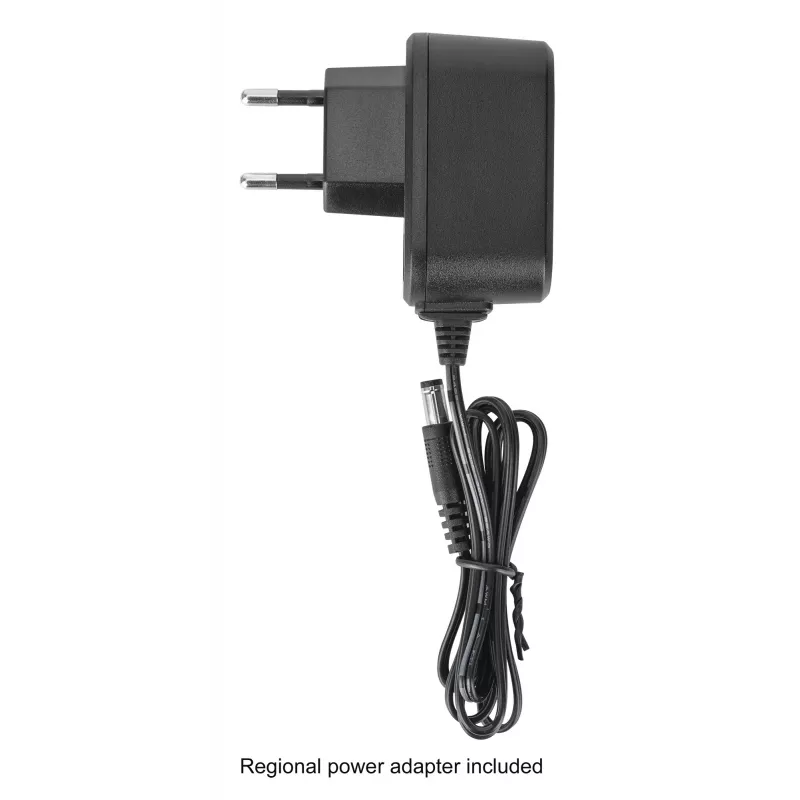

  • DC Power supply included
Specifications
10G support
No
2.5G Ethernet (copper) ports quantity
8
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Auto-sensing
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a
Cables included
AC
Certification
FCC, CE, RoHS, UKCA
Compliance certificates
CE, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
DC input voltage
12 V
Depth
100 mm
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Fanless
Yes
Flow control support
Yes
Forwarding rate
44.64 Mpps
Full duplex
Yes
Half duplex
Yes
Height
28 mm
Housing material
Metal
Input current
1.5 A
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Jumbo frames
12000
Jumbo frames support
Yes
LED indicators
Activity, Link, Power
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
4000 entries
Manual
Yes
Master (outer) case gross weight
8.09 kg
Master (outer) case height
229 mm
Master (outer) case length
360 mm
Master (outer) case width
324 mm
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
209 mm
Package height
68 mm
Package type
Box
Package weight
750 g
Package width
153 mm
Packet buffer memory
8.1 MB
Power connector
DC-in jack
Power consumption (typical)
18 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black
Products per master (outer) case
10 pc(s)
Rack mounting
No
SFP+ module slots quantity
1
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch type
Unmanaged
Switching capacity
60 Gbit/s
Wall mountable
Yes
Warranty period
3 year(s)
Weight
500 g
Width
190 mm

Manual

Open Manual

Leaflet

Open Leaflet
