R230
+R1 reward for you
The Cat6a 10G Shielded Toolless Slim Keystone Jack, Black from Intellinet Network Solutions is designed for quick, seamless side-by-side deployment. Without any special tools, this module easily snaps into blank patch panels, wall plates or surface connection boxes. It is suitable for solid conducto... Read More
Add to Cart
Add to Wish List Compare this Product
Stock 16 Code 880056 Brand Intellinet Model 791298 Warranty 2 Years
CategoryRJ45 Keystone

Shipping & Returns

Estimated delivery Thursday, November 19
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Description

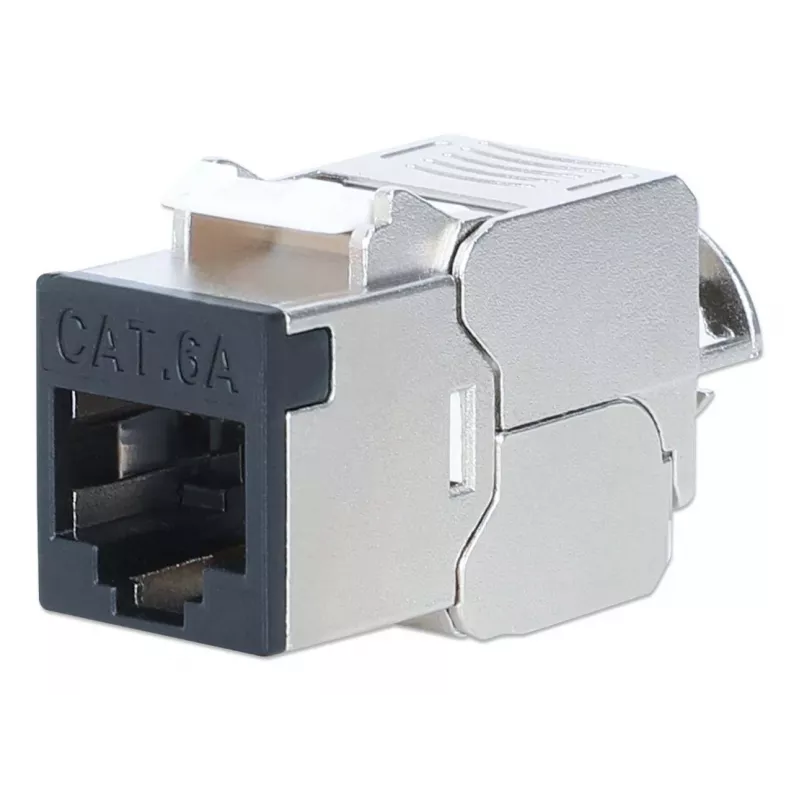

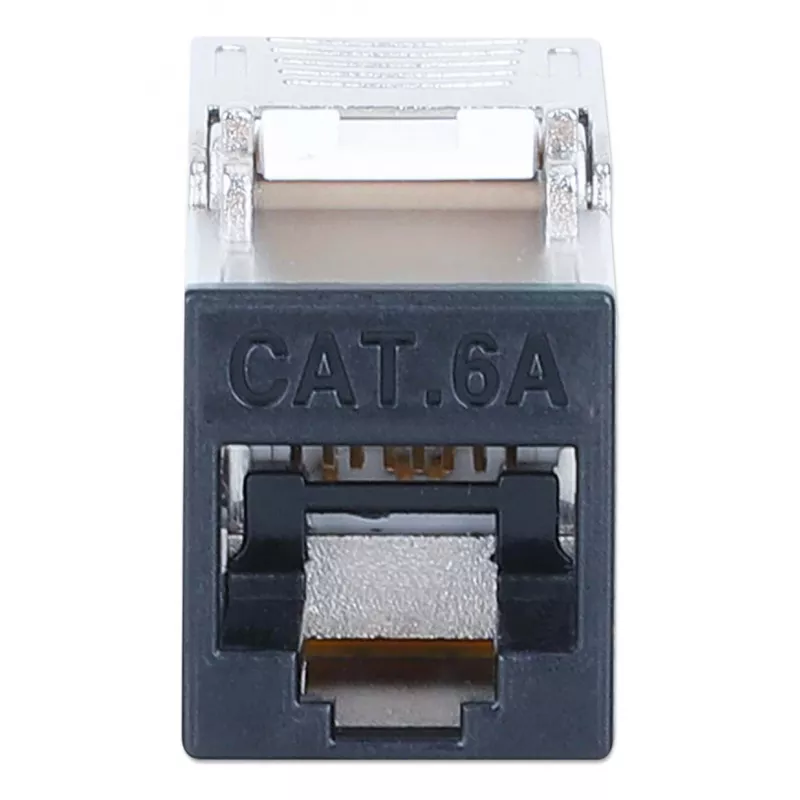

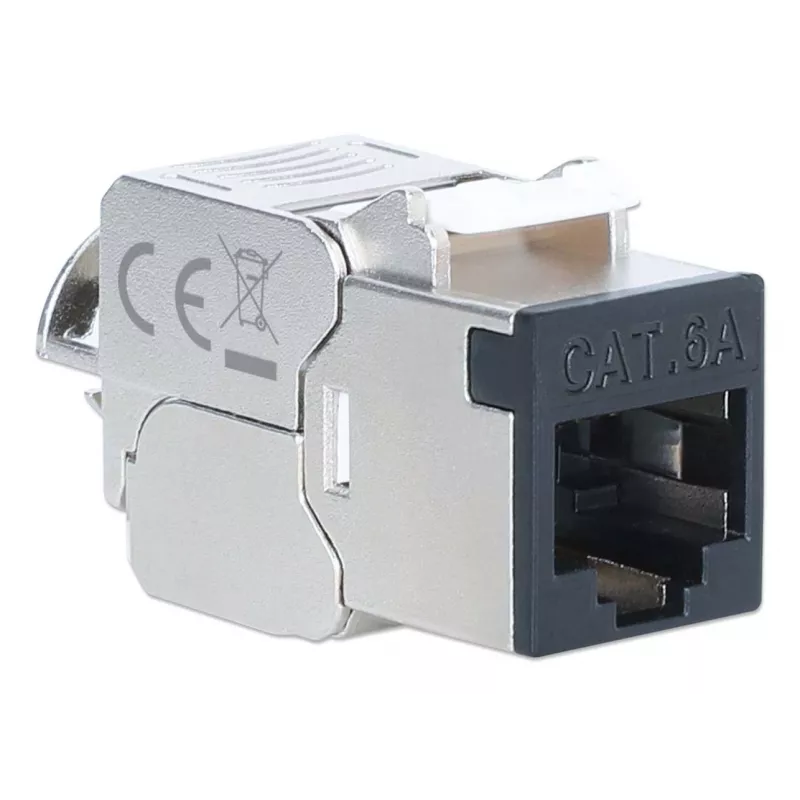

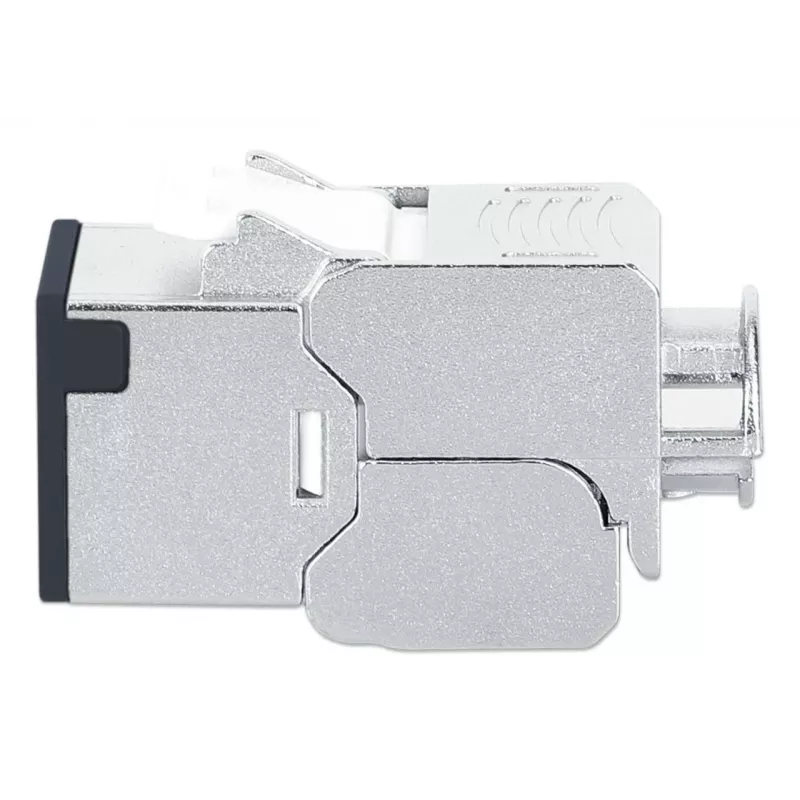

The Cat6a 10G Shielded Toolless Slim Keystone Jack, Black from Intellinet Network Solutions is designed for quick, seamless side-by-side deployment. Without any special tools, this module easily snaps into blank patch panels, wall plates or surface connection boxes. It is suitable for solid conductor cables in high-performance network applications up to 10GBase-T and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding.

Intellinet 791298. Construction type: Flat, Product colour: Black, Stainless steel, Connector 1: RJ-45. Width: 14.8 mm, Depth: 36 mm, Height: 20 mm. Package weight: 20 g. Quantity per pack: 1 pc(s)

Key Highlights

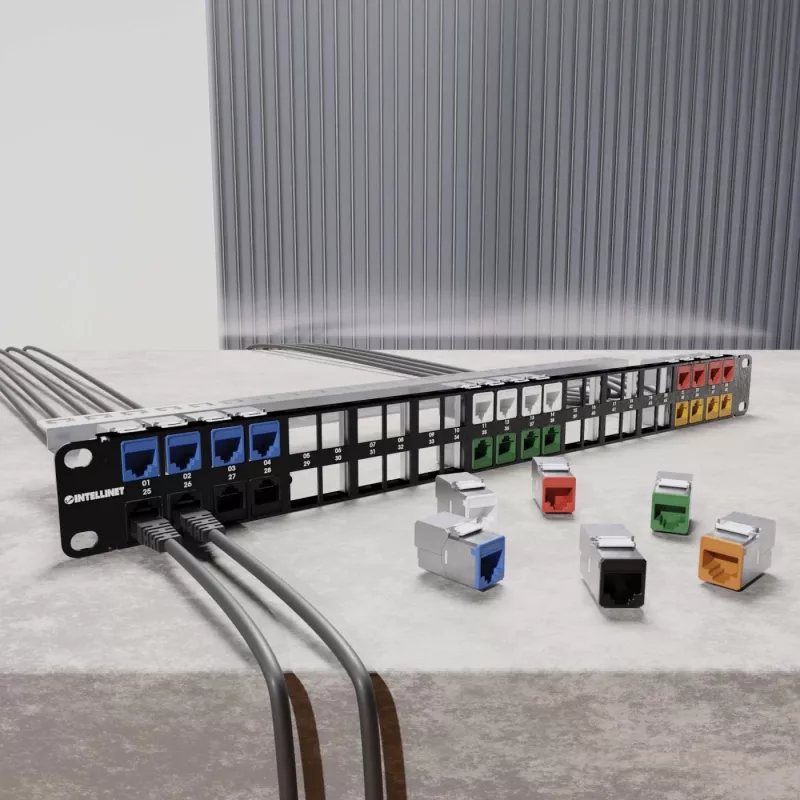

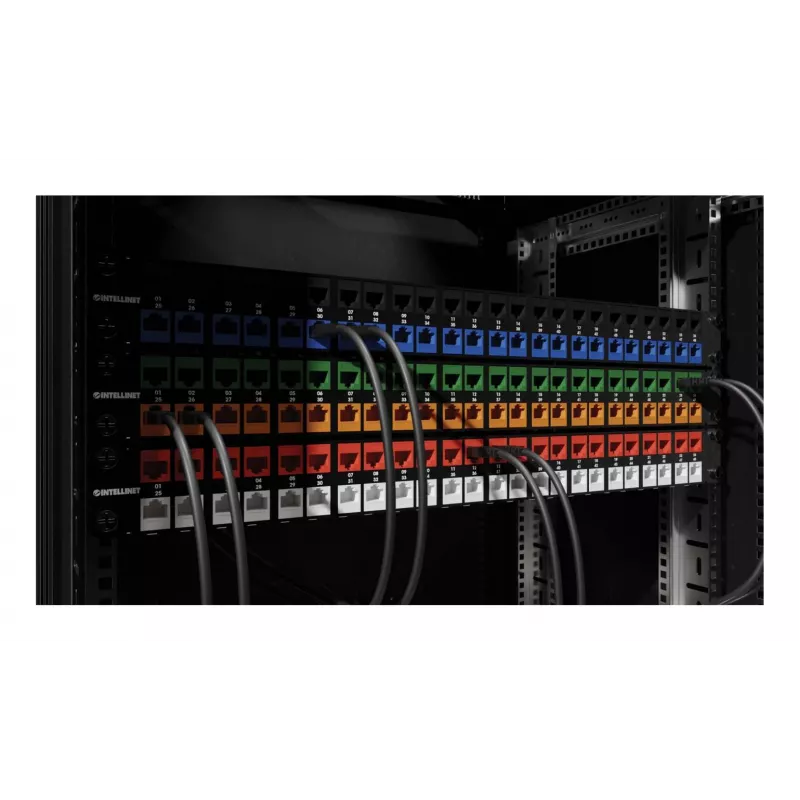

  • For easy, time-saving and tool-free deployment in blank patch panels, wall plates or surface connection boxes
  • Slimline design, only 14.8 mm (0.58 in.) wide for comfortable side-by-side installation
  • Cat6a Class EA RJ45 module with 10G and 500 MHz in accordance with ISO/IEC 11801
  • STP 360° shielded RJ45 module for PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • 6 micro-inch gold-plated contacts
  • Supports solid wire with 22/1 to 26/1 AWG
  • Standard 8P8C design, compatible with all network RJ45 connections

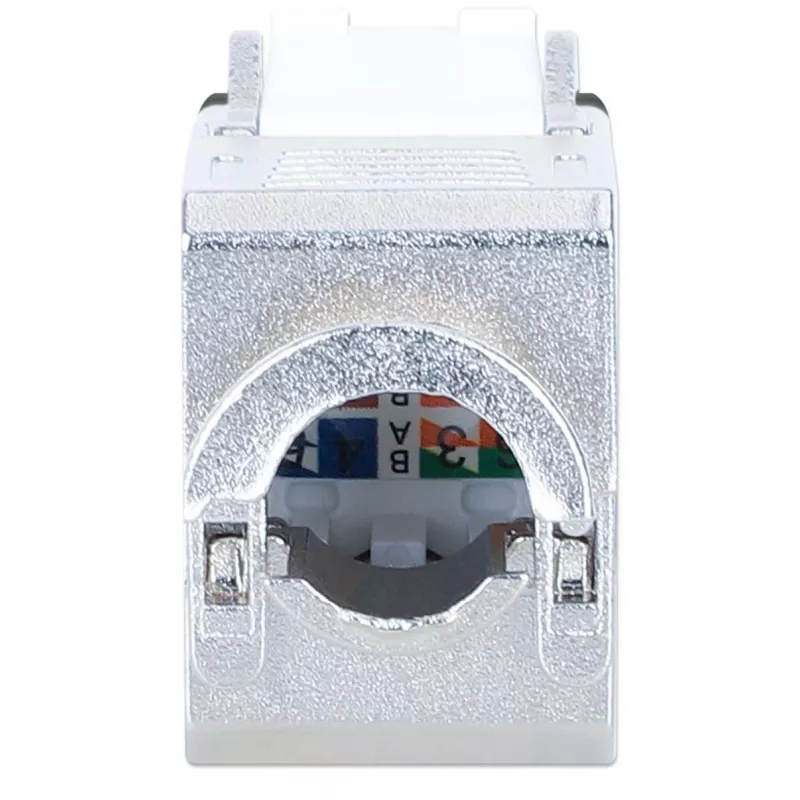

  • Compatible and color-coded with T568A and T568B
  • Fully backward compatible with all the previous cable categories, including Category 6, 5e and 5

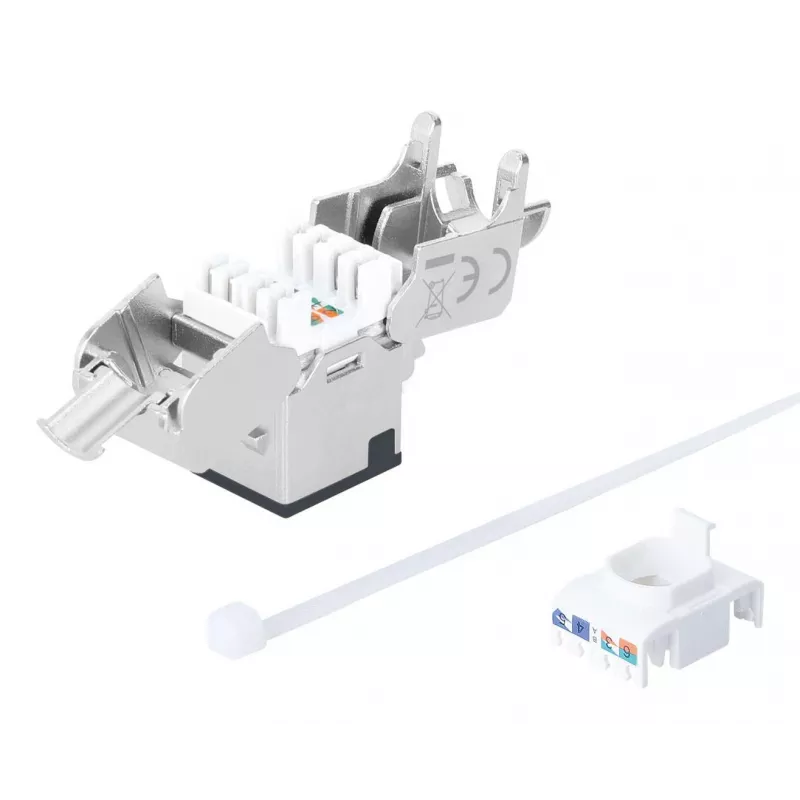

  • Cable tie included
  • Flat
  • RJ-45 Female
  • 10GBase-T
  • Cat6a
  • 500 MHz
  • Power over Ethernet (PoE)
  • Black, Stainless steel
  • 1 pc(s)

Specifications

Specifications
Cable types supported
Cat6a
Cabling technology
10GBase-T
Compliance certificates
CE, REACH, RoHS, UKCA
Connector 1
RJ-45
Connector 1 gender
Female
Connector contacts plating
Gold
Construction type
Flat
Depth
36 mm
Frequency
500 MHz
Height
20 mm
Housing material
Zinc
Networking standards
IEEE 802.3bt
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-10 - 60 °C
Package weight
20 g
Plug/connector retention force
30 N
Power over Ethernet (PoE)
Yes
Product colour
Black, Stainless steel
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-40 - 70 °C
Weight
10 g
Width
14.8 mm
