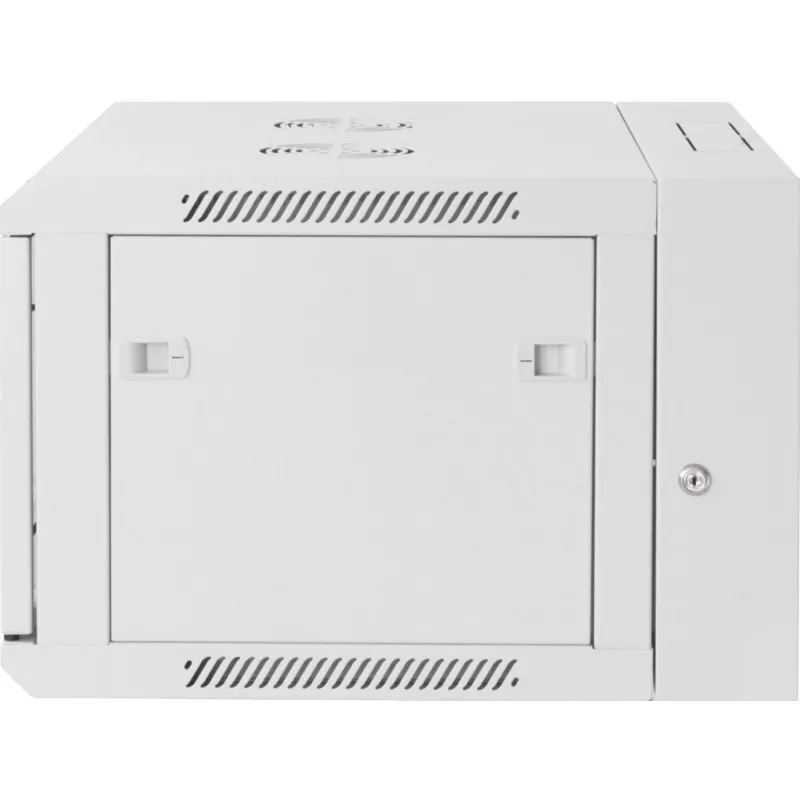

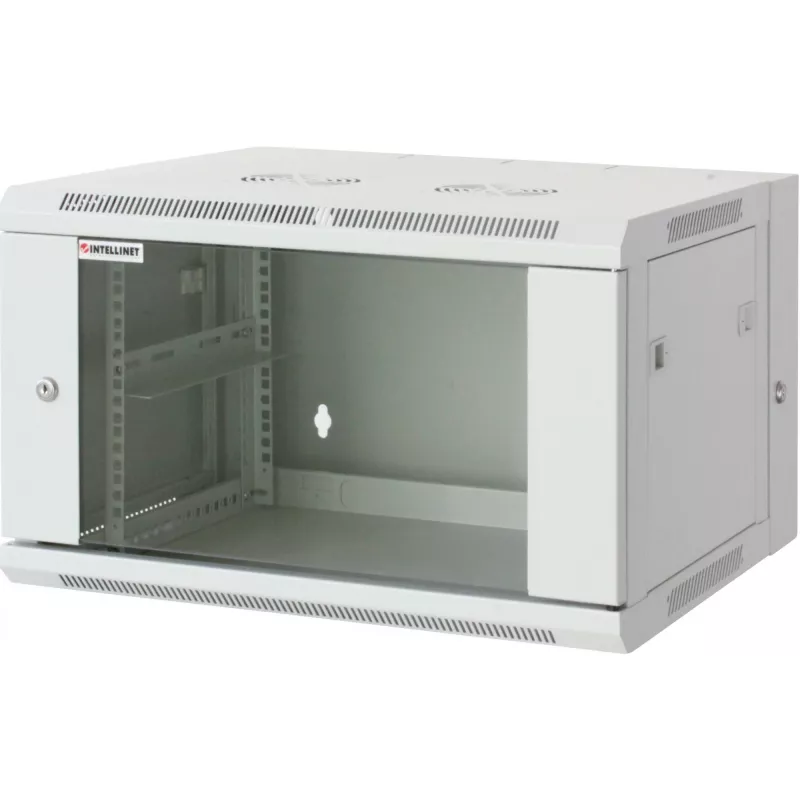

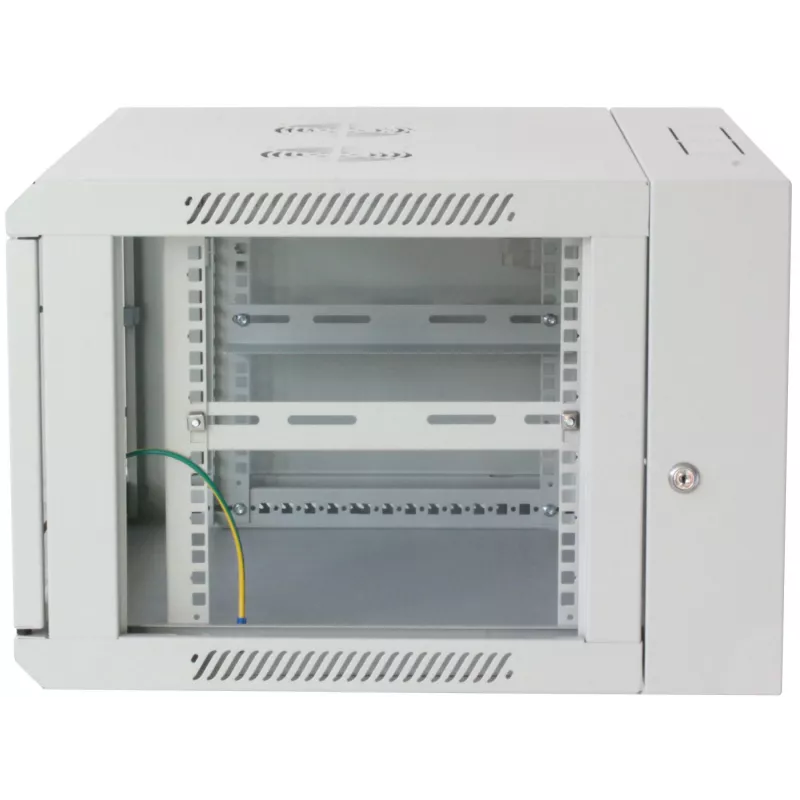

Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included

Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
Intellinet 19 inch Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included
R12,331
The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing... Read More
Stock Out Of StockNo Stock Code 2191547 Brand Intellinet Model 712026 Warranty 2 Years
CategoryWallmount Server Cabinets

Shipping & Returns

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & grey (RAL7035)._x000D_
We offer you a solution for every need. _x000D_
_x000D_
Various options include:_x000D_
Removable side panels (some lockable)._x000D_
Tempered/Toughened glass doors. _x000D_

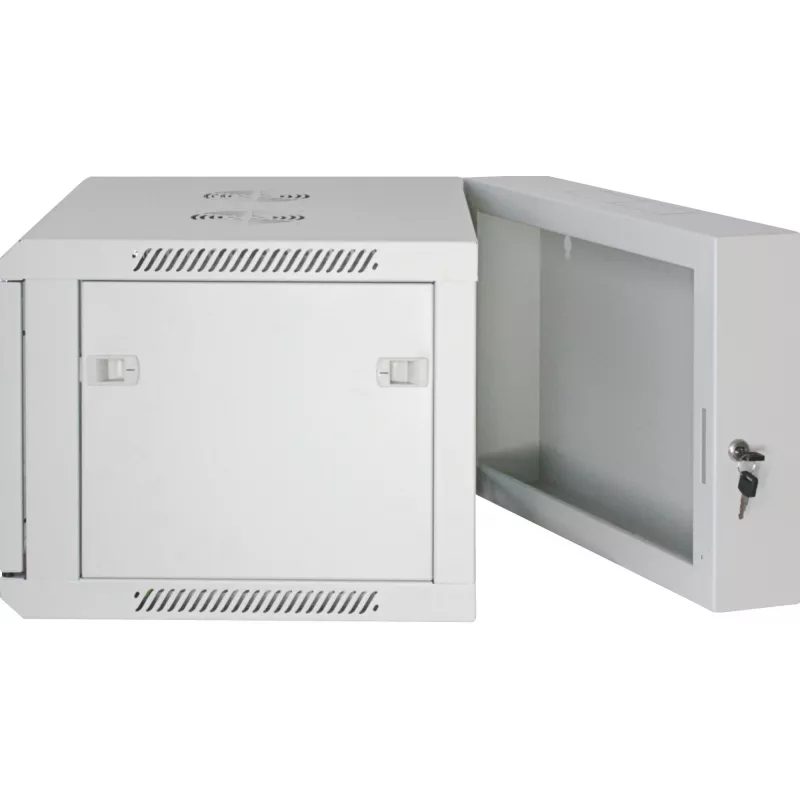

Double Section, making cabling and component exchange simple.

Intellinet 19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Grey, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 425mm, Parts for wall installation not included. Type: Wall mounted rack, Rack capacity: 15U, Maximum weight capacity: 30 kg. Weight: 30 kg. Product colour: Grey

Key Highlights
  • Ideal for 19" rackmount applications
  • Maximum static load of 30 kg
  • Tempered-glass door can be opened more than 180°
  • Cable entry via top panel
  • Rear door for easy access to back of cabinet
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Reversible Front door
  • Easily removable side panels
  • Ships assembled
  • Three-Year Warranty
  • 15U Wall mounted rack 30 kg
  • Frame type: Closed
  • Removable side panels
  • Grey
Specifications
Certification
ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Depth
550 mm
Frame type
Closed
Front door construction
Glass
Harmonized System (HS) code
85381000
Height
770 mm
Maximum weight capacity
30 kg
Product colour
Grey
Rack capacity
15U
Removable side panels
Yes
Side panels included
Yes
Size (imperial)
48.3 cm (19")
Type
Wall mounted rack
Weight
30 kg
Width
600 mm

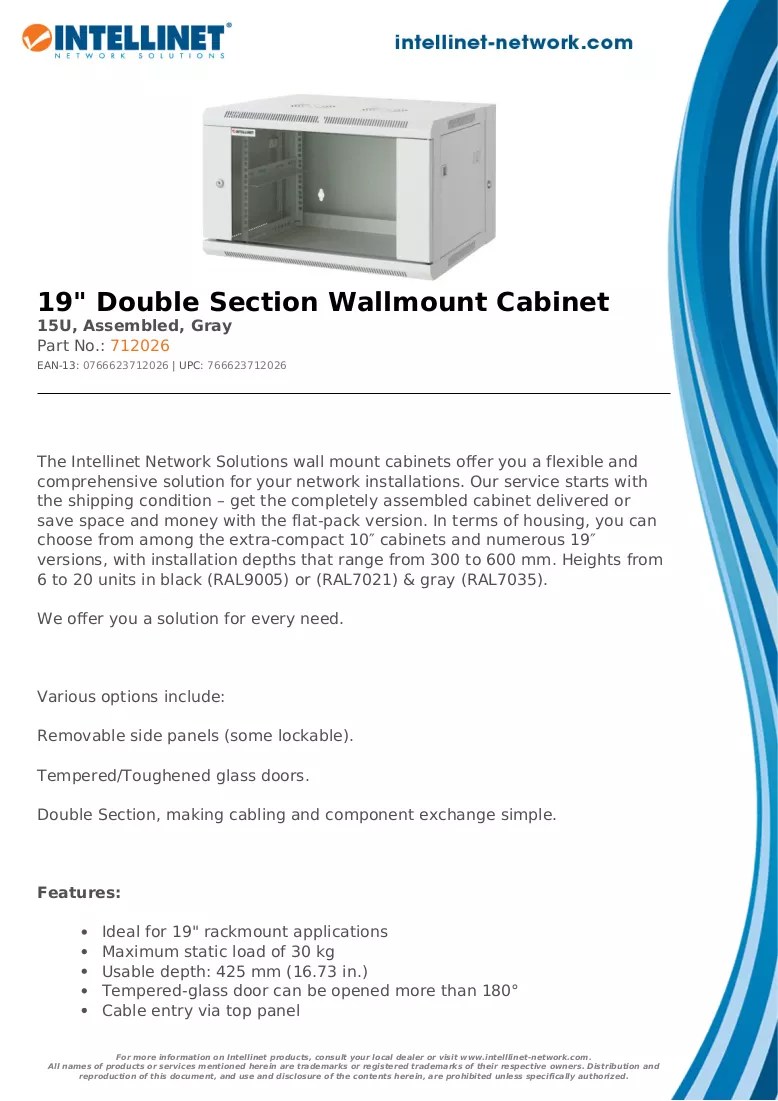

Leaflet

Open Leaflet
