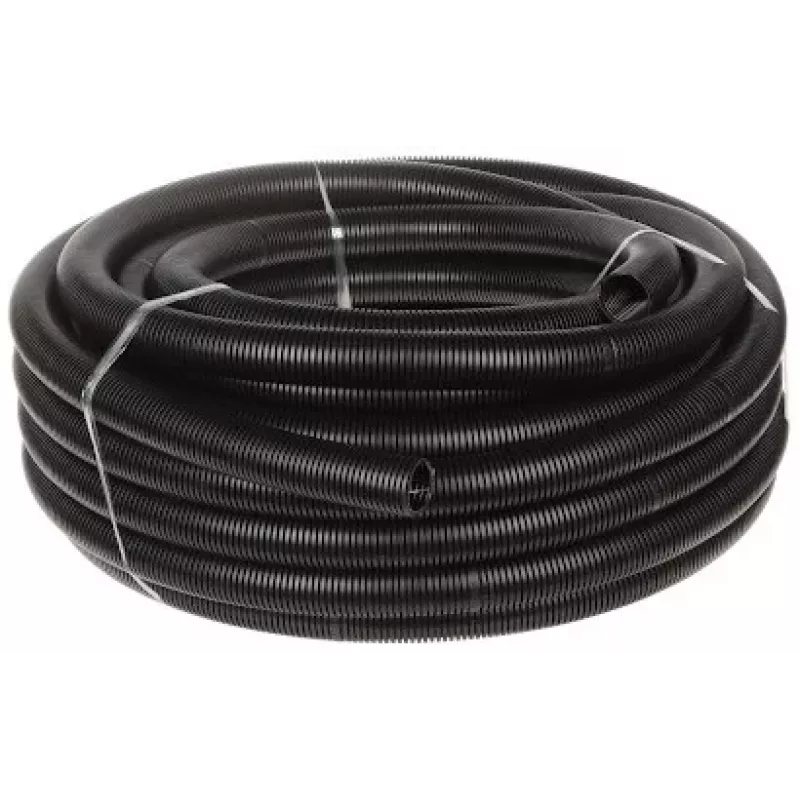

INNE KRK-40P-UV/25M Corrugated Conduit 25 m Black

The INNE KRK-40P-UV/25M is a high-quality corrugated conduit designed for reliable cable protection in electrical and telecommunication installations. Made from durable polypropylene (PP), this flexible conduit offers excellent UV resistance, making it suitable for outdoor use. With a nominal diameter of 40 mm and a length of 25 meters, it provides ample coverage for medium-sized cable runs.

Advantages

This conduit combines flexibility with robust protection. Its corrugated structure allows easy bending around corners, while the self-extinguishing material enhances safety. The UV-resistant formulation ensures long-lasting performance even under direct sunlight. Good chemical and impact resistance further extend its service life in demanding environments.

Suitable for

• Electrical cable protection in residential, commercial, and industrial buildings
• Telecommunication and data cable routing
• Outdoor installations exposed to UV radiation
• Concealed or surface-mounted cable management

Key specifications

• Product Type: Corrugated Conduit
• Material: Polypropylene (PP)
• Nominal Diameter (DN): 40 mm
• Outer Diameter: 40 mm
• Inner Diameter: 32.5 mm
• Length: 25 m
• Color: Black
• UV Resistance: Yes
• Crush Resistance: 320 N (medium)
• Temperature Range: -25°C to +60°C
• Flammability Class: Self-extinguishing
• Protection Class: IP40 (without seals)
• Standard: EN 61386-22

Recommendations

For optimal performance, ensure proper sealing at connection points to maintain IP40 protection. This conduit is compatible with standard fittings and accessories. Always follow local electrical codes and regulations during installation.
