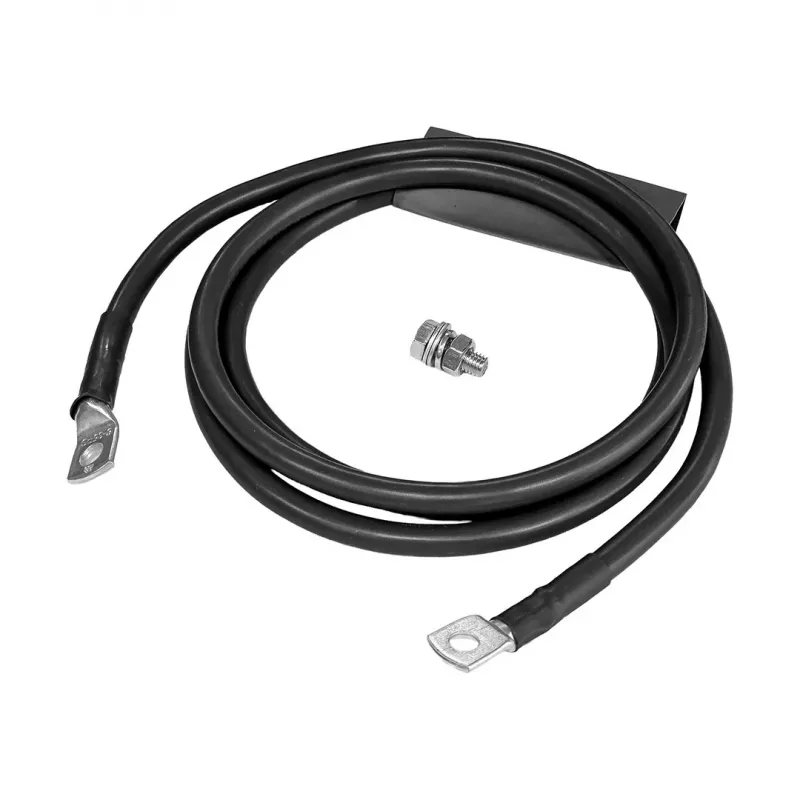

INNE PA35/8/2 Battery Connection Extension Cable 35mm² 0.8m Black

Where standard battery cables stop at fixed lengths, the INNE PA35/8/2 extension steps in with a pre-assembled 0.8 m run of highly flexible 35 mm² copper conductor, terminated on both ends with M8 ring terminals. This is a direct, no-splice solution for battery banks, inverters, solar arrays, automotive setups, and UPS systems that need a short, robust link without custom crimping.

Highlights

• Pre-assembled battery connection cable with M8 ring terminals on both ends
• 35 mm² cross-section supports high current loads up to approximately 150–200 A
• H07V-K cable standard with Class 5 flexibility for easy routing in tight spaces
• Electrolytic copper conductor ensures low resistance and efficient power transfer
• PVC insulation rated for 450/750 V AC and up to 1000 V DC
• RoHS compliant, black jacket, operating range from -30°C to +70°C

In daily use

The 0.8 m length is ideal for bridging short gaps between battery terminals, busbars, or inverter connections where a longer cable would create clutter. The highly flexible Class 5 stranding lets you bend the cable sharply without stressing the conductor, and the pre-attached M8 ring terminals save installation time. Whether you are wiring a solar charge controller, adding a battery monitor shunt, or extending an existing battery link, this cable provides a clean, professional finish.

Full specifications

• Product type: Pre-assembled battery connection cable
• Cable standard: H07V-K
• Conductor cross-section: 35 mm²
• Cable length: 0.8 m (80 cm)
• Terminal type: Ring terminal M8 (both ends)
• Conductor material: Electrolytic copper
• Insulation material: PVC (Polyvinyl Chloride)
• Cable colour: Black
• Rated voltage (AC): 450/750 V
• Rated voltage (DC): Up to 1000 V
• Max current rating: Approx. 150–200 A
• Operating temperature range: -30°C to +70°C
• Flexibility class: Class 5 (highly flexible)
• Number of conductors: 1 (single core)
• Outer diameter (approx.): 11.5 mm
• Environmental compliance: RoHS compliant

Final note

For installers and DIY enthusiasts alike, the INNE PA35/8/2 removes the guesswork from short battery connections. Its heavy-duty copper core and ready-to-use terminals make it a dependable choice in demanding electrical environments.
