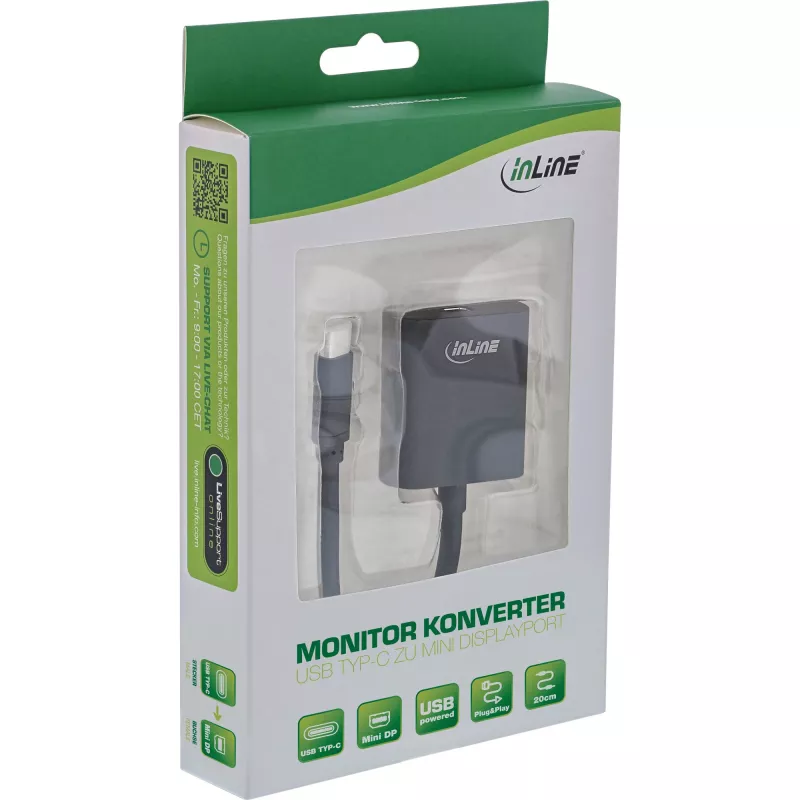

InLine USB Display converter, USB-C male to Mini DisplayPort 4K/60Hz black

USB Display Converter InLine 64105B USB-C to Mini DisplayPort 4K 60Hz connects computers and devices with a USB Type-C port that supports DisplayPort Alternate Mode or Thunderbolt 3 to Mini DisplayPort monitors. The adapter transmits both video and audio signals, supports resolutions up to 3840 x 2160 at 60 Hz with RGB and YCbCr 4:4:4, and is USB powered for plug-and-play operation. It complies with USB 3.1 and VESA DisplayPort 1.2 standards and is compatible with Windows (from Windows 7), macOS (from 10.9) and devices with Thunderbolt 3.

Advantages

The converter provides reliable 4K@60Hz output over a short, compact cable, ensuring high-quality video and audio transmission without an external power supply. Compatibility with Thunderbolt 3 and DisplayPort Alternate Mode broadens device support, while adherence to USB 3.1 and DisplayPort 1.2 standards ensures stable signal transfer. The black, lightweight design and 0.2 m cable length make it convenient for mobile and desktop setups.

Suitable for

Key specifications

How to use

Connect the USB Type-C plug to a host device that supports DisplayPort Alternate Mode or to a Thunderbolt 3 port. Plug the Mini DisplayPort connector into the target monitor. The adapter is powered via the USB-C connection and requires no additional drivers on supported systems; after connecting, set the desired display mode (extend or mirror) in the operating system display settings.

Recommendations

Ensure the source device’s USB-C port supports DisplayPort Alternate Mode (often marked with a DisplayPort logo). For optimal results, use monitor and graphics settings that match 3840 x 2160 @60Hz and verify cable connections if the image does not appear.
