MEAN WELL SBTN01M-05 power adapter 1 W Input voltage 10.8 - 13.2 V Output voltage 5 V

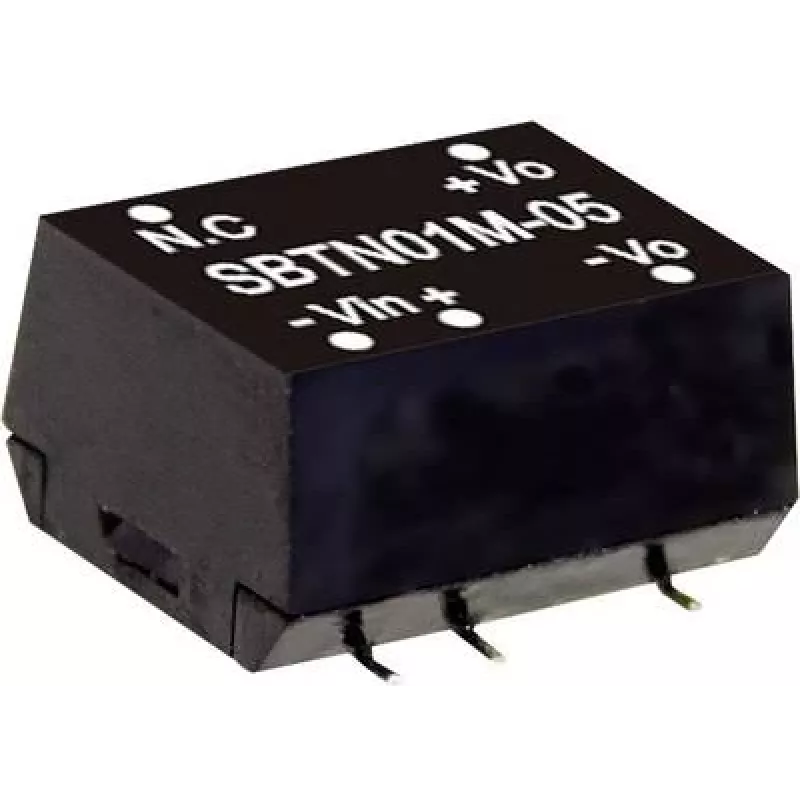

The MEAN WELL SBTN01M-05 is a compact PCB-mount DC-DC converter designed for applications with an input voltage between 10.8 and 13.2 Vdc. The module delivers a regulated 5 Vdc output with an output current range of 0.02–0.2 A (1 W maximum) in an SMD-style package and is RoHS compliant.

Advantages

This DC-DC converter provides a stable 5 V output from automotive or similar 12 V systems within the specified input range. Its PCB-mount SMD package saves board space and simplifies assembly. With low power rating and regulated output, it is suitable for powering small electronics while meeting RoHS environmental requirements.

Suitable for

• Powering small sensors and microcontroller boards
• Low-power automotive or vehicle electronics (12 V systems)
• Embedded modules and compact consumer electronics requiring 5 V at low current

Key specifications

• Manufacturer: MEAN WELL
• Model / MPN: SBTN01M-05
• Input voltage: 10.8–13.2 Vdc
• Output voltage: 5 Vdc
• Output current: 0.02–0.2 A (max 1 W)
• Mounting: PCB mount, SMD package
• Compliance: RoHS
• EAN: 4021087041966

How to use

Solder the SBTN01M-05 onto the PCB according to the manufacturer’s recommended footprint and polarity. Apply an input voltage within 10.8–13.2 Vdc and verify the output with a meter before connecting sensitive loads. Ensure proper board layout and decoupling per MEAN WELL guidelines to maintain stability and reduce noise.

Recommendations

Use this converter only within the specified input and output ranges and avoid exceeding the 0.2 A output limit. Provide adequate thermal conditions on the PCB and follow MEAN WELL application notes for mounting and circuit protection to ensure reliable operation.
