InLine Slatwall Monitor bracket short 6.5 kg capacity 13 inch

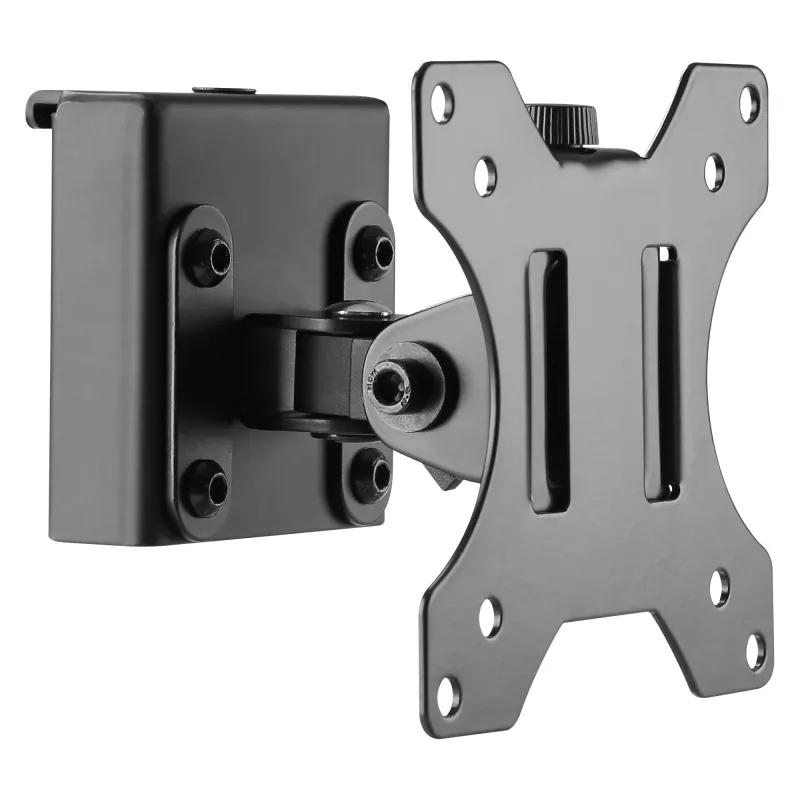

The InLine Slatwall Monitor bracket short supports monitors up to 13" (33 cm) and a maximum weight of 6.5 kg. Designed for integration with the InLine Slatwall system, the bracket enables mounting of a single display with VESA compatibility from 75 x 75 mm to 100 x 100 mm and is finished in black.

Advantages

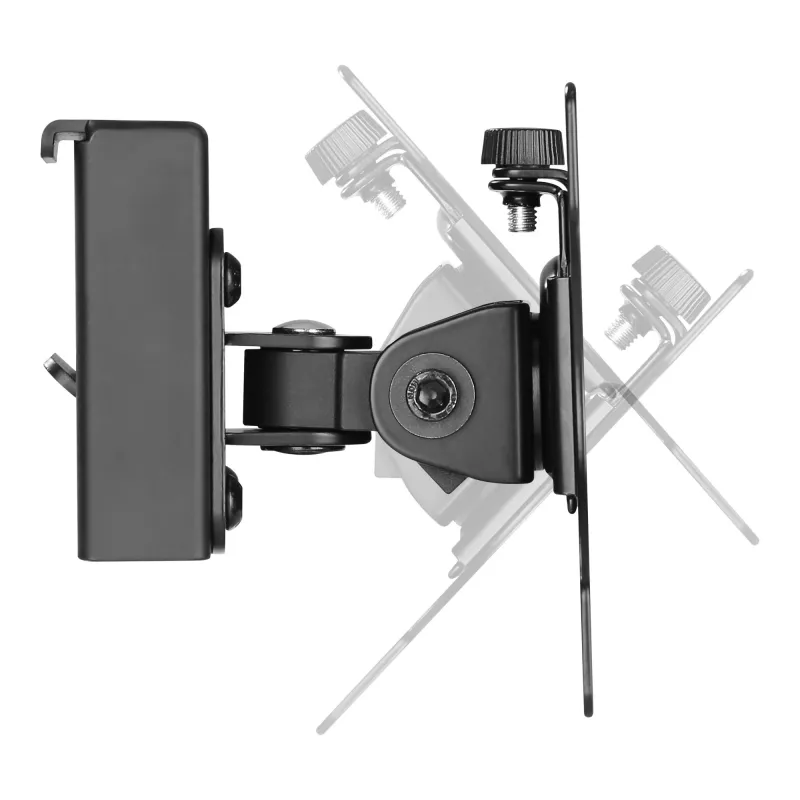

The bracket provides both tilt (-45° to 45°) and swivel (-15° to 15°) adjustment ranges for flexible screen positioning. It is suitable for attachment to the Slatwall system and supports a compact 13" monitor while maintaining a low profile and reliable 6.5 kg load capacity.

Suitable for

• Mounting a single 13" monitor on an InLine Slatwall
• Workstations that require compact, space-saving displays
• Dual-user desk arrangements using opposing Slatwall mounts

Key specifications

• Maximum weight capacity: 6.5 kg
• Maximum screen size: 13" (33 cm)
• Number of displays supported: 1

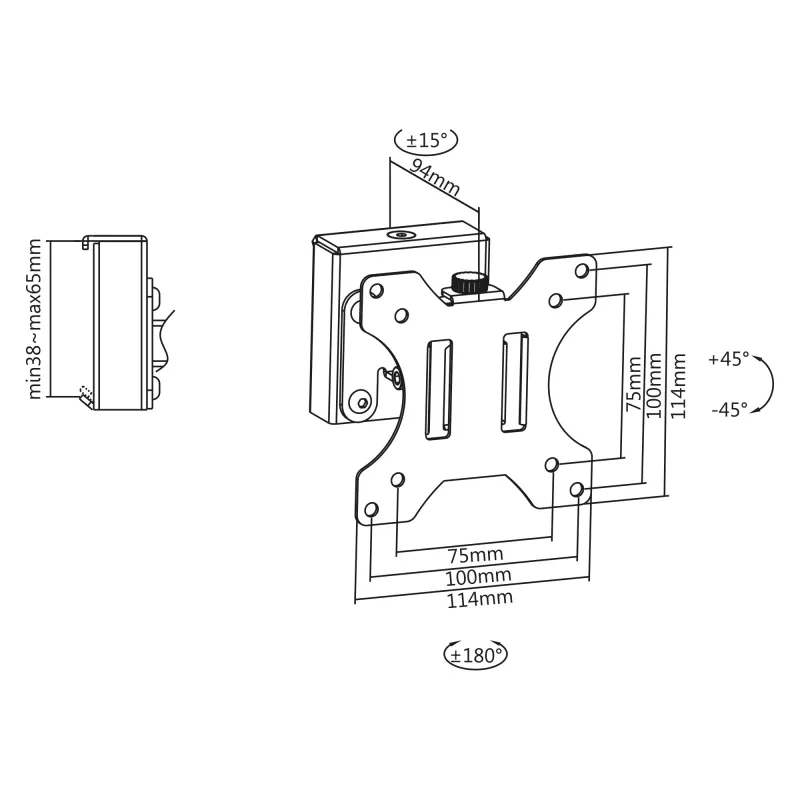

• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Swivel range: -15° to 15°
• Tilt range: -45° to 45°
• Colour: Black

How to use

Attach the bracket to the InLine Slatwall system according to the Slatwall installation instructions. Secure the monitor to the VESA mounting plate using the appropriate screws for 75 x 75 mm or 100 x 100 mm patterns. Adjust tilt and swivel to the required viewing angle and ensure all fasteners are tightened to support the monitor's 6.5 kg weight.

Recommendations

Use the bracket only with monitors within the specified maximum screen size and weight. Verify VESA hole pattern before installation and periodically check mounting hardware for tightness to maintain safe operation.
