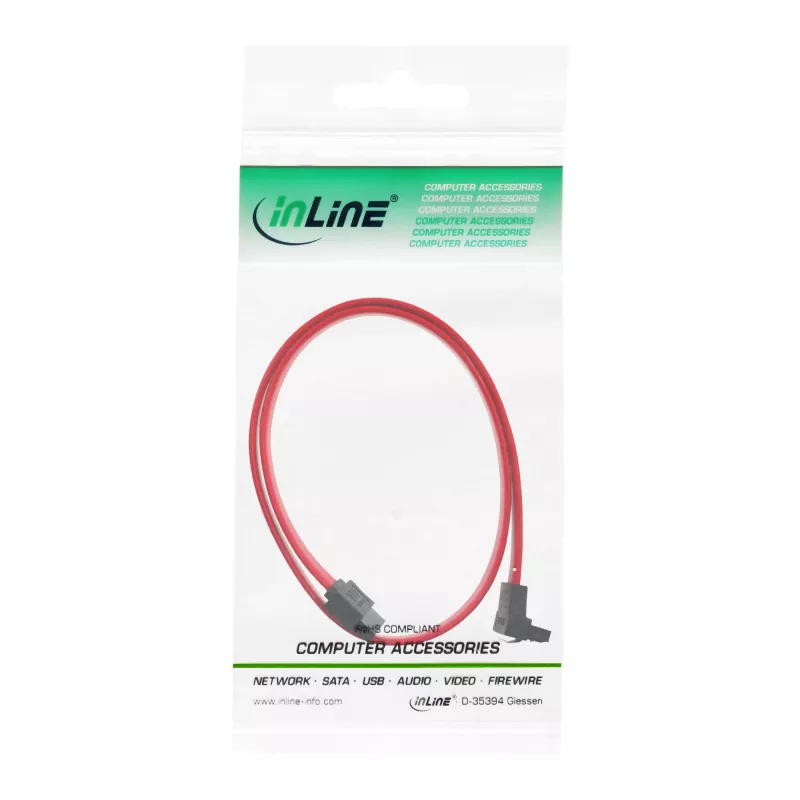

InLine SATA Cable for 150 / 300 / 600 S-ATA links angled with latches 90° 0.3m

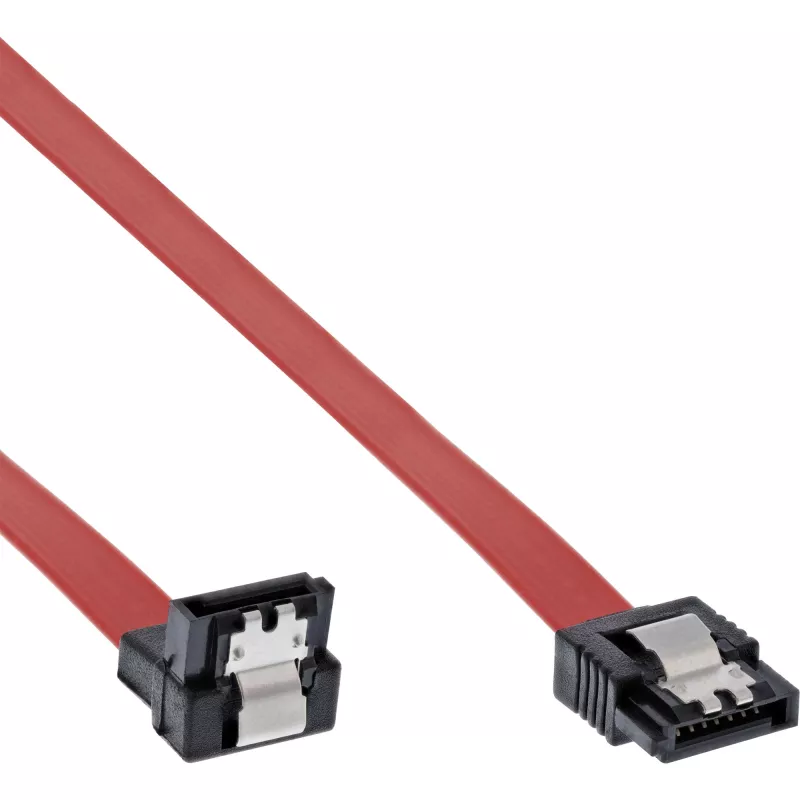

The InLine SATA Cable 90° 0.3m Red 27703V is a short internal data cable with a right-angled connector designed for comfortable connection of hard disks and SSDs in confined PC cases. It measures 0.3 m and is finished in red. The cable supports SATA I/II/III data rates for reliable high-speed transfers and features latches for secure mating with drives and controllers.

Advantages

The 90° angled connector reduces strain and saves space inside compact or crowded enclosures, while the integrated latches help prevent accidental disconnection. Its compatibility with SATA 150, 300 and 600 ensures it works with a wide range of motherboards and storage devices. The short 0.3 m length minimizes cable clutter and improves airflow within the case.

Suitable for

• Connecting 2.5" or 3.5" SATA hard drives and SATA SSDs in small form-factor PCs
• Systems where straight connectors would be obstructed or cause cable bending
• Internal cable routing to improve airflow and reduce clutter

Key specifications

• Brand: InLine
• Model / MPN: 27703V
• EAN: 4043718090396
• Cable length: 0.3 m
• Connector orientation: 90° angled
• Colour: Red
• Supported SATA standards: SATA 150 / 300 / 600
• Type: Internal SATA data cable with latches

How to use

Align the SATA connector with the drive or motherboard SATA port and press until the latch clicks into place. For the angled connector, orient the cable so it follows the intended cable routing path inside the case to avoid unnecessary bending. To disconnect, press the latch to release and pull the connector straight out. Use the 0.3 m length for short, direct connections between nearby ports and drives.

Recommendations

Use this short 90° SATA cable when internal space is limited or when you need a tidy connection between closely located SATA ports and drives; avoid excessive bending near the connector and keep the latch free from obstructions.
