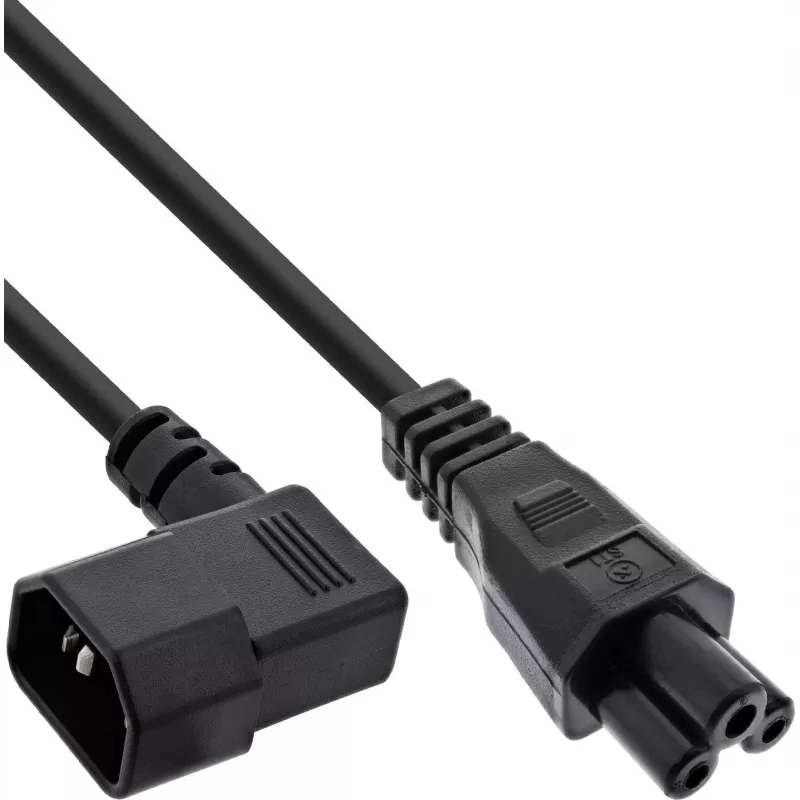

InLine® Mains Cable C14 Female Angled to C5 Male, Black, 3m

Many notebooks and compact devices use a three-pin C6 inlet, but standard power cords often have a straight C14 connector that blocks adjacent sockets or creates awkward cable routing. This InLine® mains cable solves that with a 90-degree angled C14 female connector, allowing the cable to hug the wall or power strip while the C5 male end plugs neatly into your device. At 3 metres long, it gives you the reach to connect equipment in tight spaces without clutter.

Who is it for

IT technicians, office managers, and home users who need a reliable power connection for notebooks, small appliances, or AV equipment with a C6 inlet. It’s especially useful in server racks, behind desks, or anywhere space is limited.

Main features

• Angled C14 female connector (90°) for flush mounting and better cable management
• Straight C5 male connector (Mickey Mouse style) fits standard notebook power bricks
• 3-metre length provides flexibility in positioning devices
• 3 x 0.75 mm² copper conductors support up to 2.5 A at 250 V AC
• Durable PVC jacket and insulation for long-lasting performance
• CE and RoHS certified for safety and environmental compliance

Specifications

• Cable type: Power cable
• Connector 1: IEC 60320 C14 female, angled (90°)
• Connector 2: IEC 60320 C5 male, straight
• Cable length: 3 m
• Colour: Black
• Conductor cross-section: 3 x 0.75 mm²
• Rated voltage: 250 V AC
• Rated current: 2.5 A
• Jacket material: PVC
• Conductor material: Copper
• Insulation material: PVC
• Operating temperature: -20°C to 70°C
• Certifications: CE, RoHS
• Number of conductors: 3
• Shielding: Unshielded
• Connector plating: Nickel

Tips

Check your device’s power inlet before ordering: the C5 connector is commonly found on notebook power adapters, while the C14 angled end connects to standard IEC outlets on power distribution units or wall sockets. For best results, route the cable away from heat sources and avoid sharp bends.
