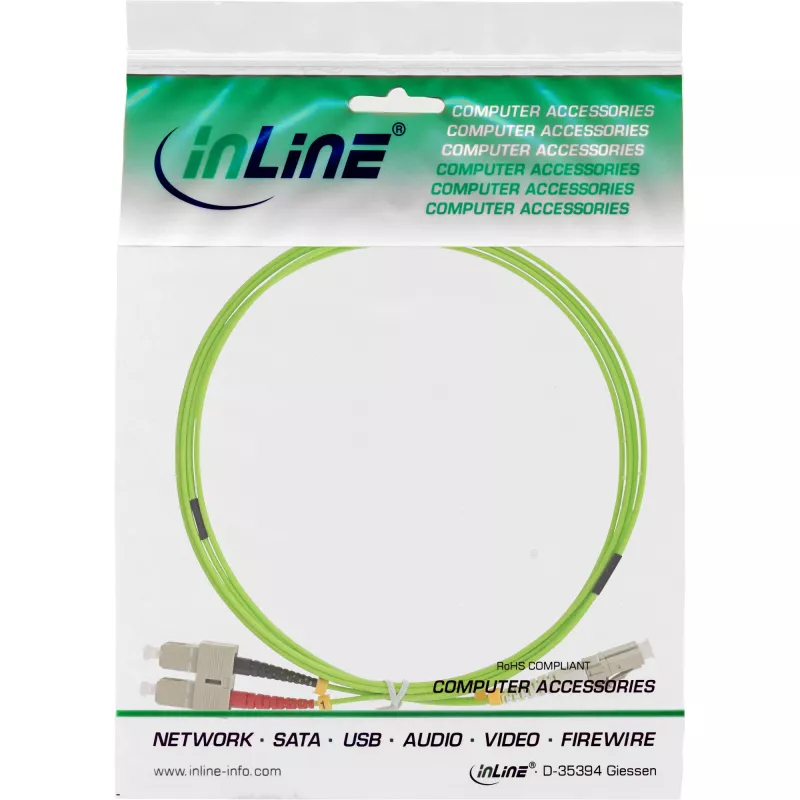

InLine Fiber Optical Duplex Cable LC/SC 50/125µm OM5 3m

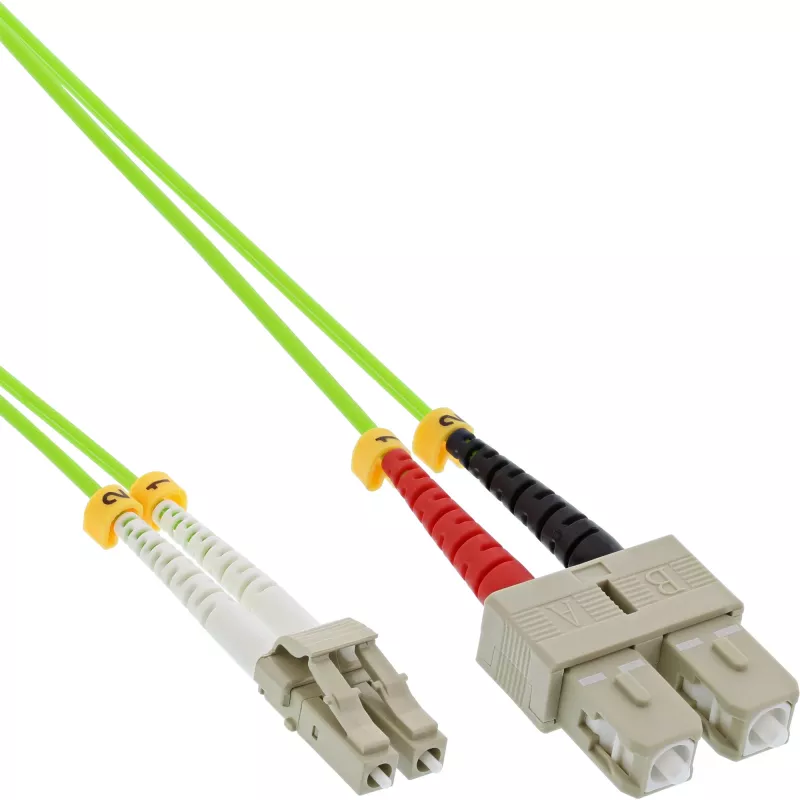

The InLine Fiber Optical Duplex Cable LC/SC 50/125µm OM5 3m is a multimode duplex patch cable engineered for high-speed data transmission in structured networks. With two LC connectors at one end and two SC connectors at the other, this 3-meter cable uses OM5 fiber with a 50/125 µm core/cladding profile to support short- and medium-range multimode links. The cable is suitable for connecting transceivers, patch panels and network switches where duplex LC-to-SC connectivity is required, and its construction supports reliable signal integrity and low insertion loss.

Advantages

The OM5 fiber type optimizes wideband multimode performance and is compatible with common multimode systems, allowing improved support for wavelength-division multiplexing over short distances. The duplex configuration provides simultaneous transmit and receive paths, reducing cabling complexity for bidirectional links. LC and SC connector types offer a mix of compact and robust terminations to fit various equipment ports. The 3 m length balances flexibility and reach for typical rack-to-rack or equipment-to-panel connections.

Suitable for

• Data center patching between switches, transceivers and patch panels
• High-speed multimode links in enterprise LAN and campus networks
• Fiber channel and Ethernet multimode connections up to multimode distance limits
• Upgrading or extending existing LC-to-SC duplex runs

Key specifications

• Fiber type: OM5 multimode
• Core/cladding diameter: 50/125 µm
• Connector A: Duplex LC (2 fibers)
• Connector B: Duplex SC (2 fibers)
• Length: 3 m
• Polarity: Duplex (separate TX and RX fibers)
• Typical application: Multimode patching and short-reach links

How to use

Inspect both connector endfaces and equipment ports for dust or damage before insertion. Align and insert the LC duplex connector into the LC port and the SC duplex connector into the SC adapter or port until secure. Maintain correct polarity by matching transmit to receive channels on each end. Avoid bending the cable beyond its minimum bend radius and secure the cable to prevent strain at the connector interfaces. When disconnecting, pull from the connector body rather than the cable jacket to protect fiber integrity.

Recommendations

For best performance, use in combination with clean adapters and compliant multimode transceivers; perform end-face cleaning and inspection periodically, and route the cable to avoid tight bends, kinks or compressive forces that could increase attenuation or cause physical damage.
