InLine 92504H wire connector USB-A / Terminal block, 5-pin Black, Green

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.

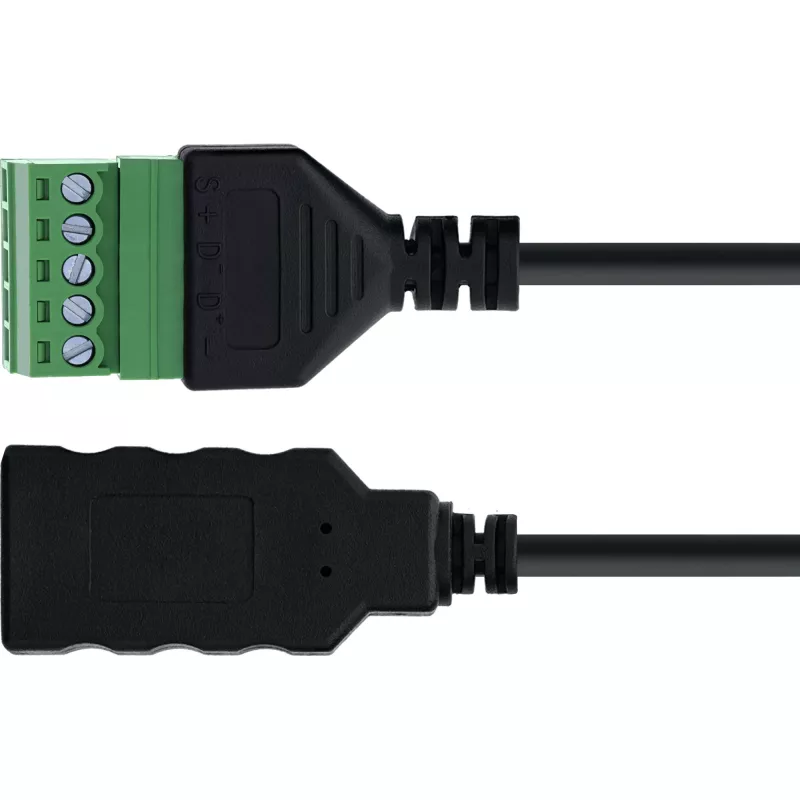

Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

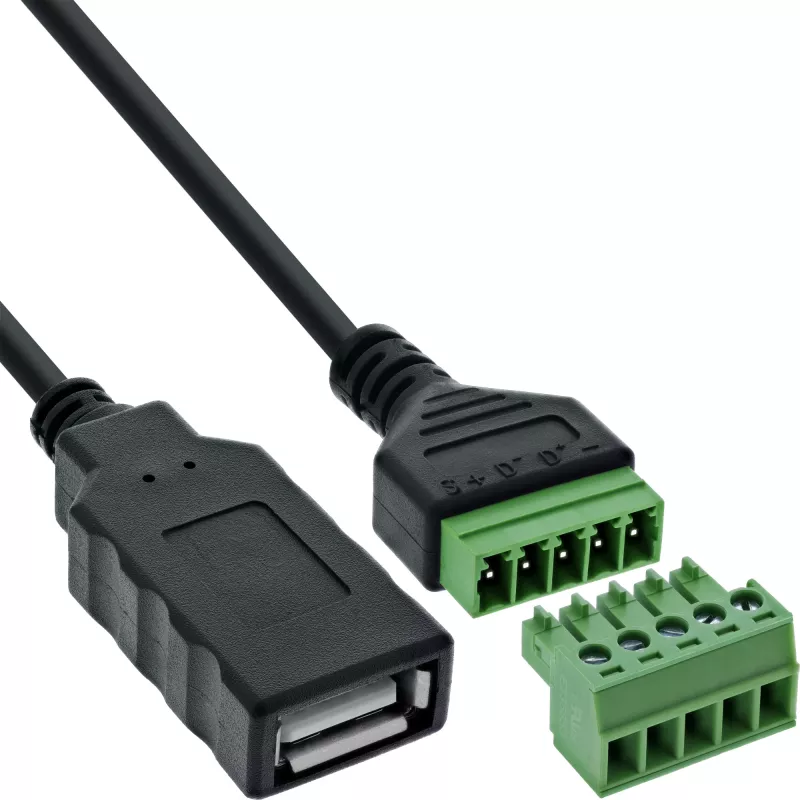

The InLine® USB‑A 2.0 terminal block adapter with socket and permanently integrated connection cable enables easy connection of USB signals to a 5‑pin screw terminal strip – without any soldering. The terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and support wires in the range of 16–26 AWG. Tool-assisted wiring is performed using a flat-head screwdriver ≤ 2.5 mm.
With a cable length of 1 meter, the adapter is ideal for test setups, laboratory environments, or embedded systems. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.

USB interface:USB‑A 2.0, female connector
Cable length:approx. 1 m (PVC, permanently integrated)
Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

InLine 92504H. Connector(s): USB-A / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 22 x 1015 x 12 mm, Weight: 39 g, Cable length: 1 m. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

How to use

Strip wires within the supported 16–26 AWG range, insert each conductor into the corresponding numbered terminal (1: ground, 2: D+, 3: D–, 4: VBUS, 5: shield) and secure with the pressure plate using a flat-head screwdriver up to 2.5 mm. Plug the USB‑A device or cable into the female USB‑A 2.0 socket. Position the adapter on a non-conductive surface or use the EVA insulating layer when mounting on conductive surfaces. Ensure correct polarity and shielding connections before powering the VBUS line.

Recommendations

For reliable operation, use copper conductors within the specified AWG range, avoid excessive bending or mechanical stress on the integrated cable, and verify terminal tightening periodically in long-term installations. Do not exceed the rated current of 0.7 A per pin and keep the adapter within the specified temperature range.
