Indoor ceiling/wall light Steinel RS PRO P1 flat S PMMA neutral white 9.5 W 1010 lm IP54 with motion sensor

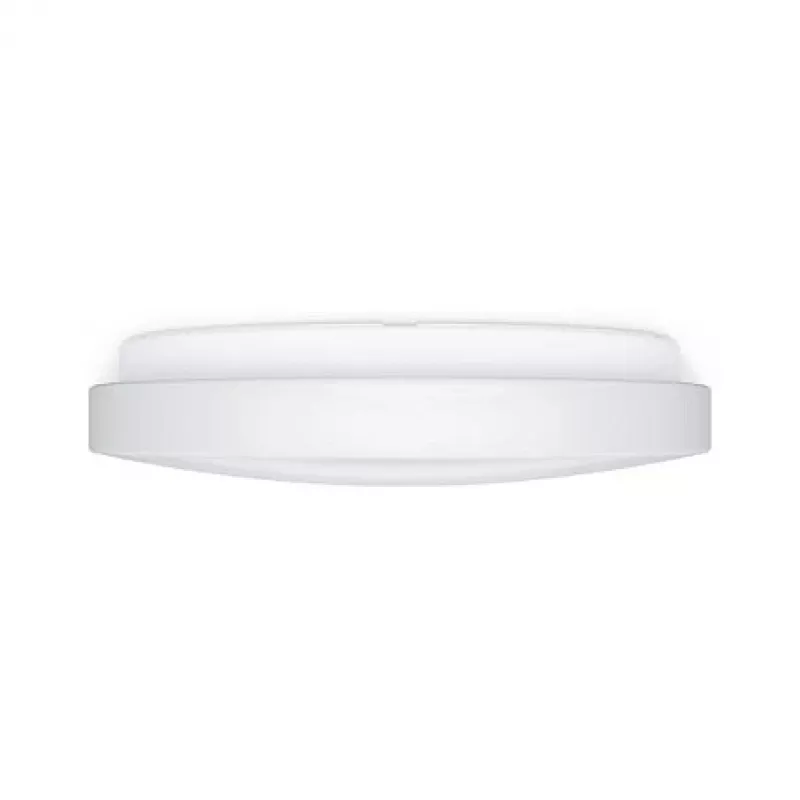

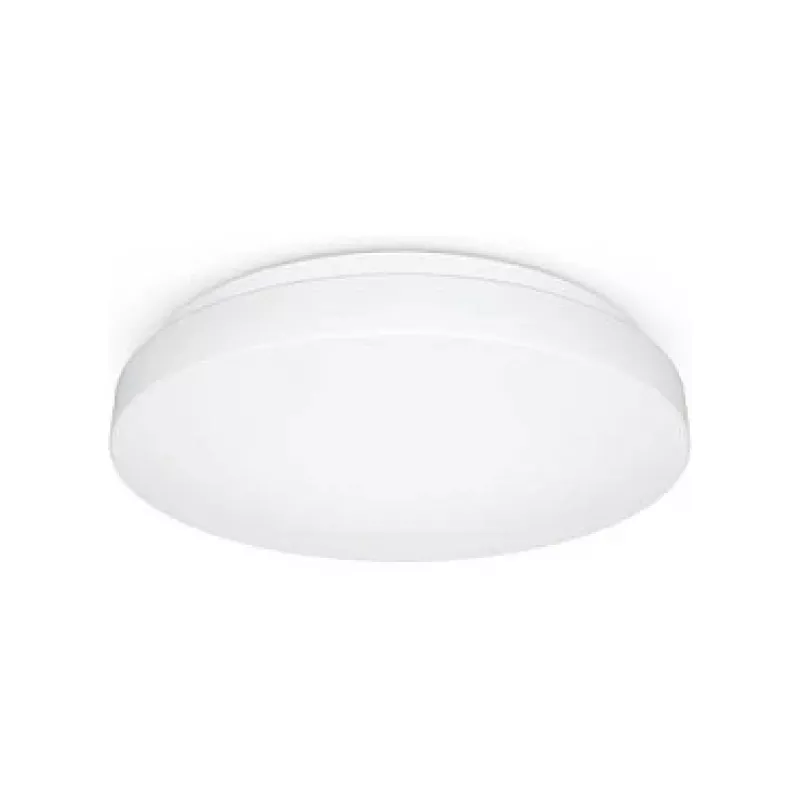

Steinel RS PRO P1 flat S is an indoor ceiling and wall luminaire with an integrated motion sensor, finished in neutral white. The flat PMMA diffuser and compact design deliver uniform, glare-controlled light suitable for corridors, stairways, utility rooms and entrance areas. With a rated power of 9.5 W and luminous flux of approximately 1010 lm, the luminaire combines low power consumption with sufficient brightness for general-purpose indoor lighting while offering IP54 protection for dusty or damp indoor environments.

Advantages

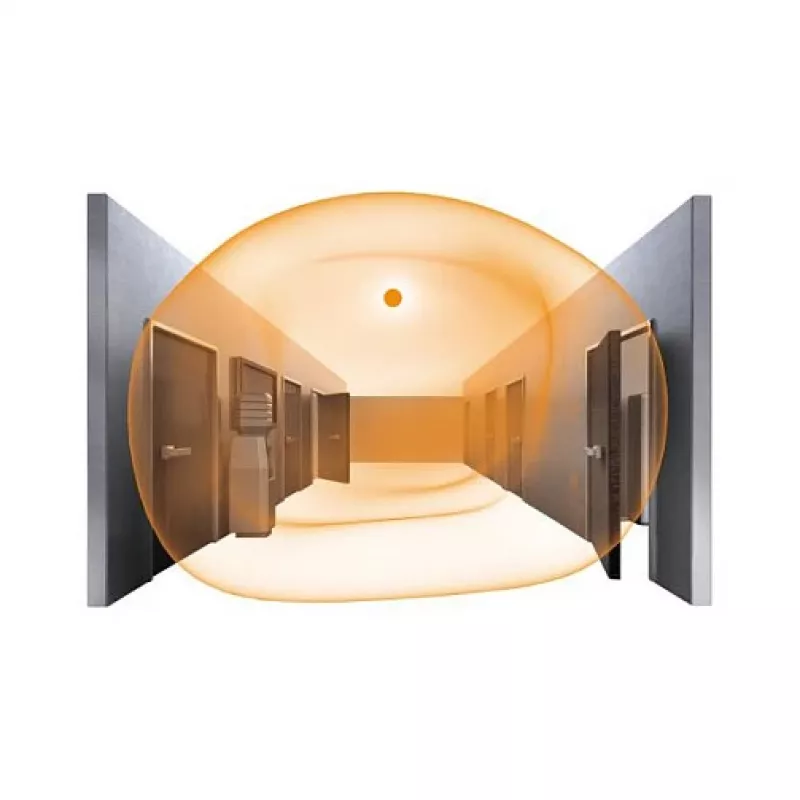

The fixture integrates a presence detector to switch lighting automatically when movement is detected, reducing unnecessary energy use. The PMMA flat diffuser ensures even light distribution and restricted glare, while the compact flat profile enables unobtrusive ceiling or wall installation. IP54 protection provides resistance to dust ingress and splashing water, making it suitable for corridors, stairwells and service areas where occasional moisture or dust is present. The neutral white color temperature supports clear visibility and a neutral appearance in functional spaces.

Suitable for

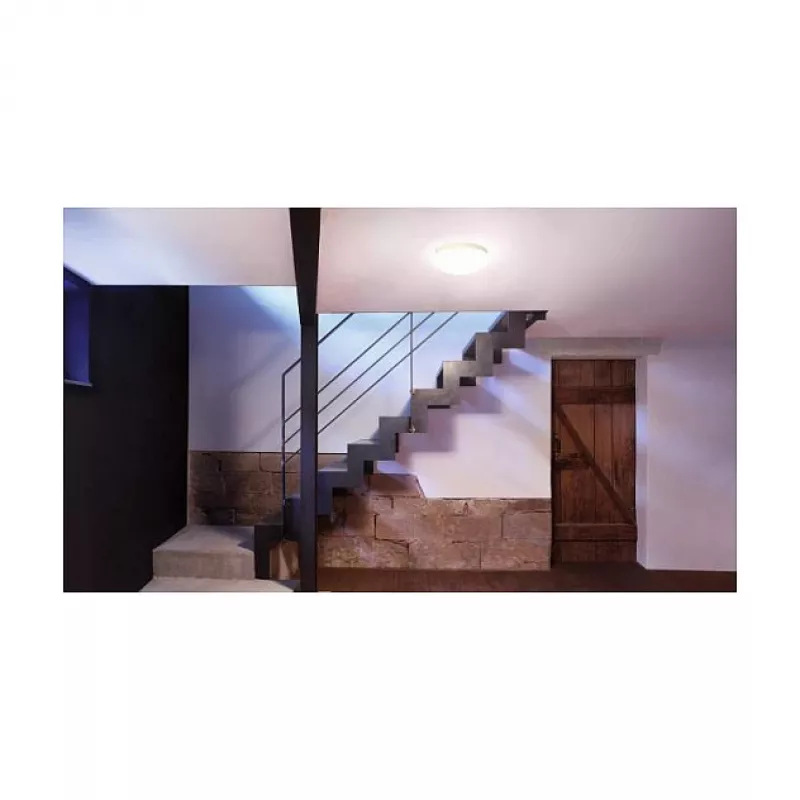

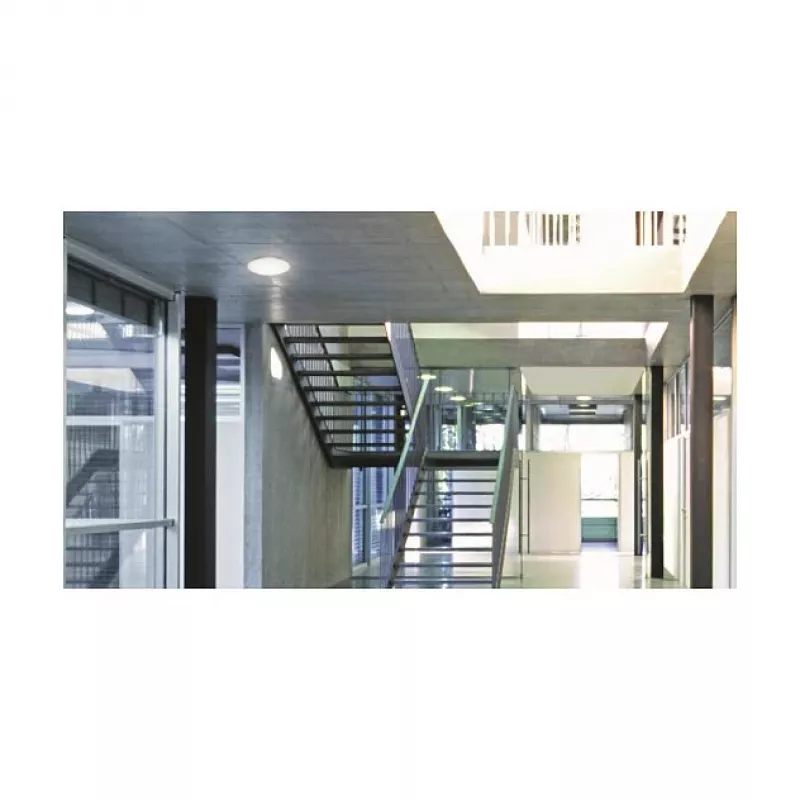

• Corridors and hallways in residential and commercial buildings
• Staircases and landings where automatic presence detection improves safety
• Utility rooms, storage areas and technical rooms with occasional dust or moisture
• Building entrances and vestibules requiring hands-free automatic lighting

Key specifications

• Light source type: integrated LED module
• Rated power: 9.5 W
• Luminous flux: 1010 lm (nominal)
• Light color: neutral white
• Diffuser material: PMMA (flat)
• Protection rating: IP54 (splash and dust resistant)
• Mounting: ceiling and wall
• Integrated motion/presence sensor

How to use

Mount the luminaire on a suitable flat ceiling or wall surface following local electrical regulations and switching off power before installation. Connect mains wiring to the fixture’s terminal block according to the wiring diagram provided by the manufacturer. Adjust sensor orientation and, if available, time and sensitivity settings to suit the specific location so the light activates reliably when presence is detected. The integrated LED module requires no lamp replacement during normal lifetime; periodic cleaning of the PMMA diffuser with a soft, damp cloth helps maintain light output.

Recommendations

For reliable operation, install at the recommended mounting height and orient the sensor toward areas of expected movement. Avoid mounting where direct exposure to strong water jets or continuous outdoor weather occurs, as the product is designed for indoor use with IP54 protection. For stairways and corridors, set a short turn-off delay to avoid frequent switching while maintaining energy savings; in storage or infrequently used rooms, increase detection sensitivity and delay time as needed.
