Imou DB60 Kit Black Wireless Security Camera 5MP 2560x1920

DB60 Kit

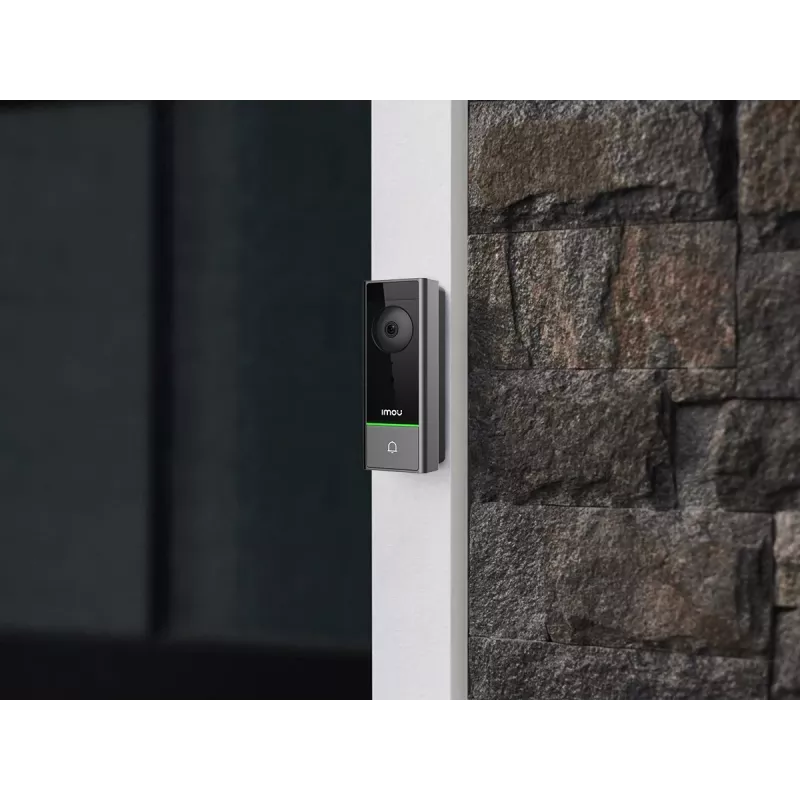

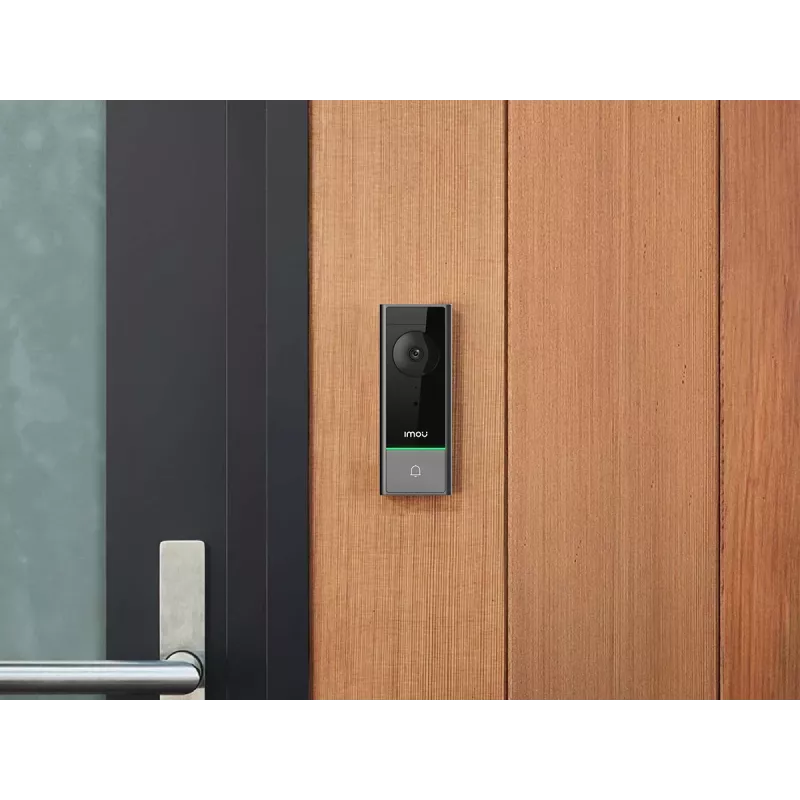

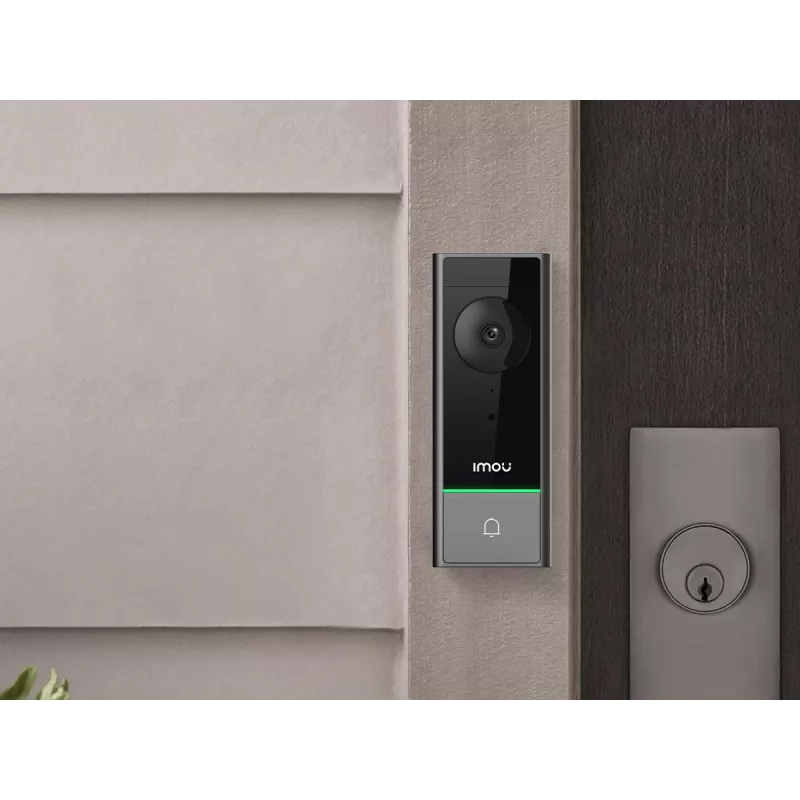

The wireless DB60 doorbell delivers high quality images thanks to the 5 megapixel resolution. Capture all details with the wide 164° fish eye lens. The DB60 features two-way talk and quick response, ensuring you to see and answer to visitors from anywhere at any time in a practical way.
The battery of this video doorbell can last up to 6 months under normal conditions. Furthermore, the DB60 is IP65 certified to withstand any weather condition and features night vision for clear images even in pitch dark. Recordings can be saved locally via a SD card or NVR, but you can also opt for Cloud service. Included in the DB60 kit is a chime to ensure you always hear the ring of the bell, even if you do not have your smart device at hand.

Video resolution
The 5MP (QHD) lens offers a great image quality to monitor your front door area, also at night thanks to the night vision mode. The H.265 image compression technique that is used ensures high-quality recordings and streams take up relatively little space and thus require less bandwidth. In this way, the available storage space and bandwidth can be used optimally. The Imou DB60 video doorbell uses 2.4 GHz WiFi and offers a great stable connection in combination with the Chime which is also a Wi-Fi extender.

Two-way talk and quick response
The DB60 features a wide fish eye lens providing a head-to-toe view of every person in front of your door. You can listen and respond to visitors with the two-way talk function. Which is also handy when you have a parcel delivery that can be left by the door. In addition the DB60 has a quick response feature, making it possible to reply to visitors with pre-recorded messages. Thanks to the high-end motion sensor and smart AI algorithm the DB60 sends out real-time notifications when someone is detected. In the settings you are able to set the detection region to only focus on specific areas.

Up to 180 days security on a single charge
This video doorbell features a rechargeable battery. Fully charged the 6.200 mAh battery can last up to 180 days under normal circumstances, based on 5 minutes of recording per day. Battery performance depends on the number of times the camera is activated. An extraordinarily high frequency will be at the expense of battery lifetime.

Chime

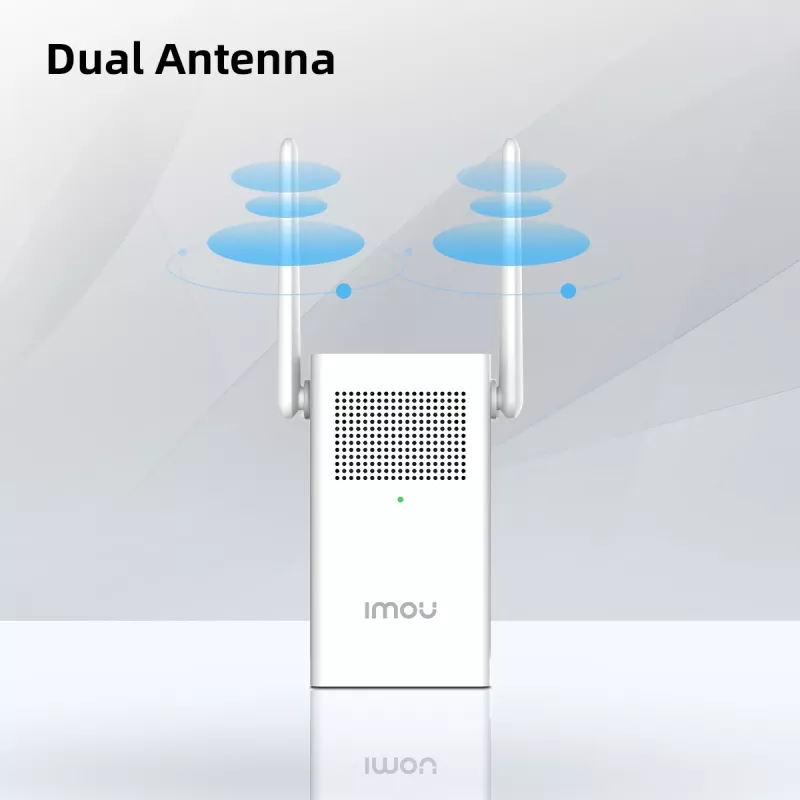

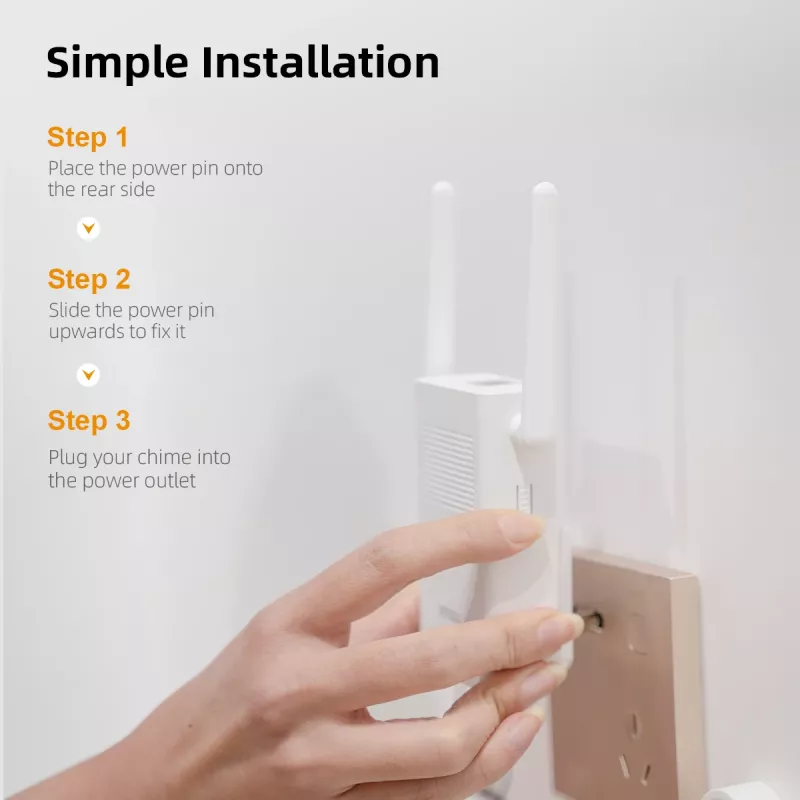

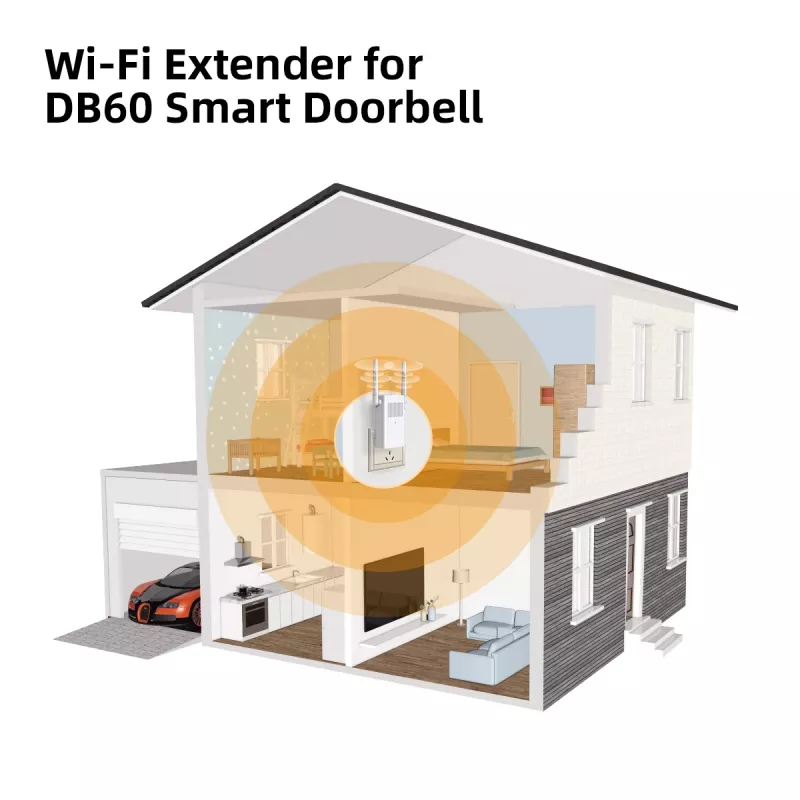

Imou DS21 chime is included in package to make sure you also hear the ring of the bell when you do not have your smart device at hand. The DS21 chime also functions as Wi-Fi extender to optimize the connectivity.

Installation
Download the Imou Life app (iOS, Android or Windows) and create an Imou account. After logging in, select the "+" sign at the top right of the Imou app to add a device. Scan the QR code on the doorbell and follow the steps in the app. Then select the WiFi network and make sure the device is close to the router during the installation process. The doorbell is ready for use in no time! For recording images, you can opt for the Imou Cloud service, but also for local storage by using a MicroSD card.

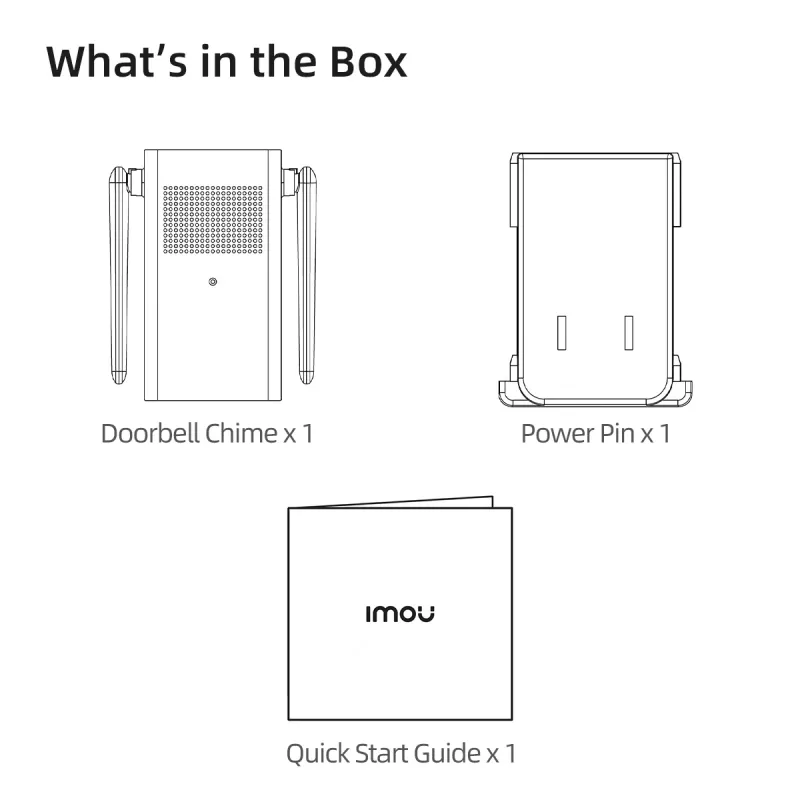

What’s in the box?
- 1 × Doorbell
- 1x Chime
- 1 × Mounting Bracket
- 1 × Angled Bracket (15° horizontally)
- 1 × Angled Bracket (5° vertically)
- 2 × Extension Wires
- 1 × Charging Cable
- Installation materials
- Quick start guide

How to use

Install the Imou Life app on an iOS, Android or Windows device and create an Imou account. Use the app's device-adding function to scan the doorbell QR code, follow the on-screen setup steps and select your 2.4 GHz Wi‑Fi network. Place the chime within range of the router during setup to improve connection stability. Mount the doorbell using the included straight or angled brackets to achieve the desired viewing angle, then insert a microSD card for local recording if required or enable cloud storage in the app. Charge the built-in battery before first use and monitor battery status in the app.

Recommendations

Mount the DB60 at a height and angle that capture faces within the 164° field of view; use the included angled brackets for optimal framing. For best wireless performance, position the chime between router and doorbell to serve as extender. Limit frequent activations to extend battery life and enable motion detection zones in the app to reduce false alerts and conserve storage.
