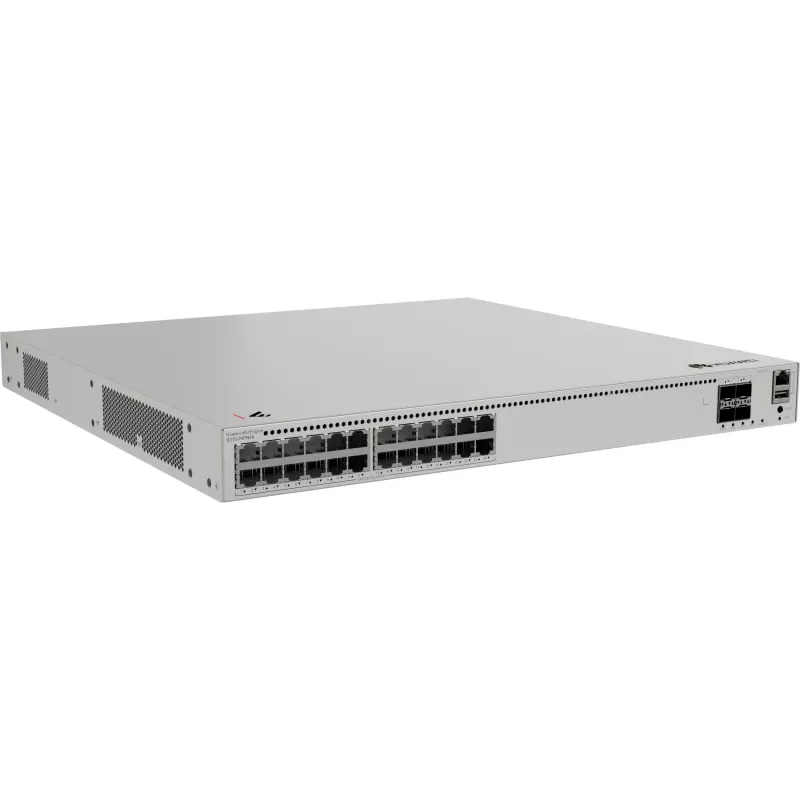

Huawei eKitEngine S310-24PN4X Managed L2+ PoE+ Switch - 24x 2.5G PoE+ Ports + 4x 10G SFP+ Uplinks, 400W PoE Budget, Rack-Mountable

The Huawei eKitEngine S310-24PN4X is a high-performance managed L2+ PoE+ switch designed for enterprise and SMB networks. It features 24 10/100/1000/2.5GBASE-T PoE+ ports and 4 1/10 Gigabit SFP+ uplink ports, delivering a switching capacity of 176 Gbps and a forwarding rate of 130.94 Mpps. With a PoE budget of 400 W, it supports IEEE 802.3af/at for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch supports advanced Layer 3 routing protocols, intelligent stacking (iStack), and comprehensive security features including 802.1X, DHCP snooping, and ARP inspection. It can be managed via CLI, Web UI, SNMP, or the Huawei eKit App for cloud-based management. The switch is rack-mountable (1U) with front-to-side airflow, making it suitable for standard 19-inch racks.

Advantages

High port density with 24 2.5G PoE+ ports and 4 10G SFP+ uplinks, providing flexible and high-speed connectivity. The 400 W PoE budget allows simultaneous powering of multiple devices. Advanced security mechanisms protect against network threats, while iStack enables virtual stacking of multiple switches for simplified management. The switch supports fast PoE and perpetual PoE for uninterrupted power to connected devices.

Suitable for

• Enterprise access layer deployments requiring high-bandwidth PoE+ for IoT devices
• SMB networks needing a cost-effective, managed switch with Layer 3 capabilities
• Surveillance systems with multiple PoE cameras
• Wireless LANs with PoE-powered access points

Key specifications

• Ports: 24 x 10/100/1000/2500BASE-T PoE+ + 4 x 1/10G SFP+
• PoE Standard: IEEE 802.3af/at (PoE+)
• PoE Power Budget: 400 W
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.94 Mpps
• MAC Address Table: 16K entries
• VLAN Support: 4094 VLANs
• Jumbo Frame: Up to 9 KB
• Mounting: Rack-mountable, 1U
• Airflow: Front-to-side
• Management: CLI, Web UI, SNMP v1/v2c/v3, Telnet, SSH v2.0, eKit App
• Power Supply: Internal AC 100-240V, 50/60 Hz
• Operating Temperature: 0°C to 50°C
• Security: 802.1X, DHCP Snooping, IP Source Guard, ARP Inspection, Port Security
• QoS: SP, WRR, SP+WRR, DRR, 8 queues per port

Recommendations

For optimal performance, use Category 6a or higher cabling for 2.5G connections. Ensure adequate ventilation for front-to-side airflow. The switch is ideal for networks requiring high PoE power and advanced management features.
