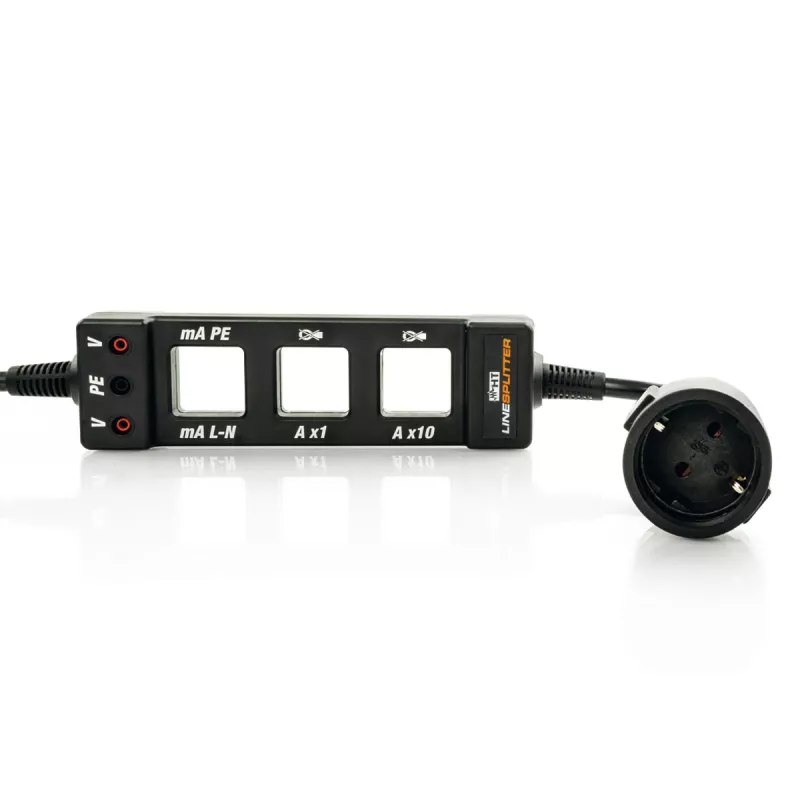

HT Instruments Line Splitter Measuring Adapter 2009680

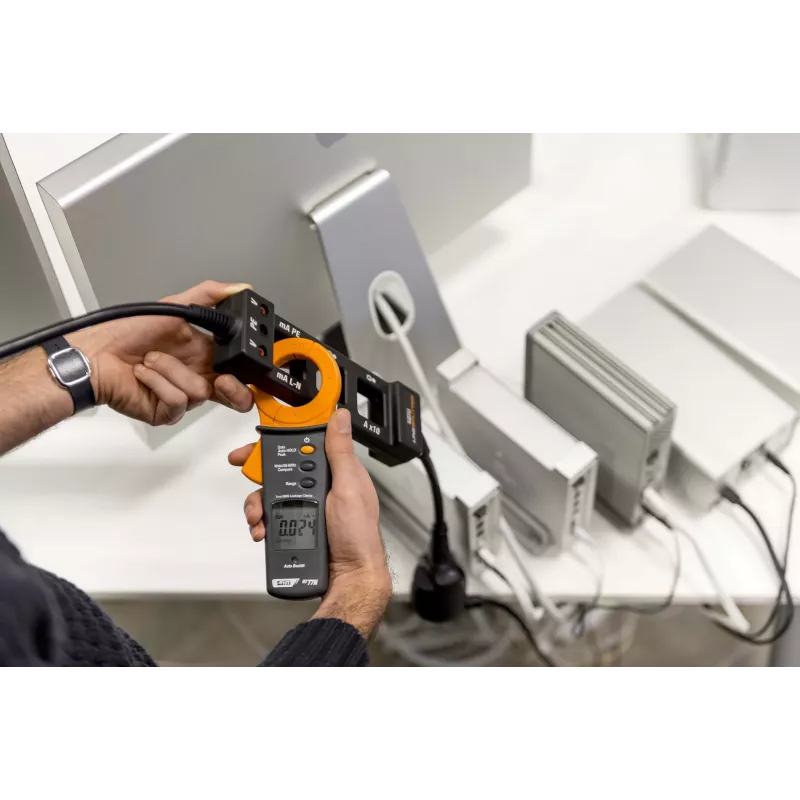

Electricians and maintenance technicians often need to measure current and voltage on a live circuit without interrupting power. The HT Instruments Line Splitter Measuring Adapter 2009680 plugs into a standard Schuko socket and separates the line and neutral conductors, allowing a clamp meter to safely measure current at a 1:10 ratio while providing 4mm safety sockets for direct voltage measurement.

Key specifications

• Input: Schuko plug (CEE 7/4)
• Output: Schuko socket (CEE 7/4)
• Current measurement ratio: 1:1 direct, 1:10 for clamp meter
• Voltage measurement via 4mm safety sockets
• Maximum operating current: 16 A AC
• Maximum operating voltage: 250 V AC
• Frequency: 50/60 Hz
• Safety category: CAT II 250V
• Double insulation
• Single-phase
• Housing: high-impact plastic
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Relative humidity: <80% RH (non-condensing)
• Safety standard: EN 61010-1

Why choose it

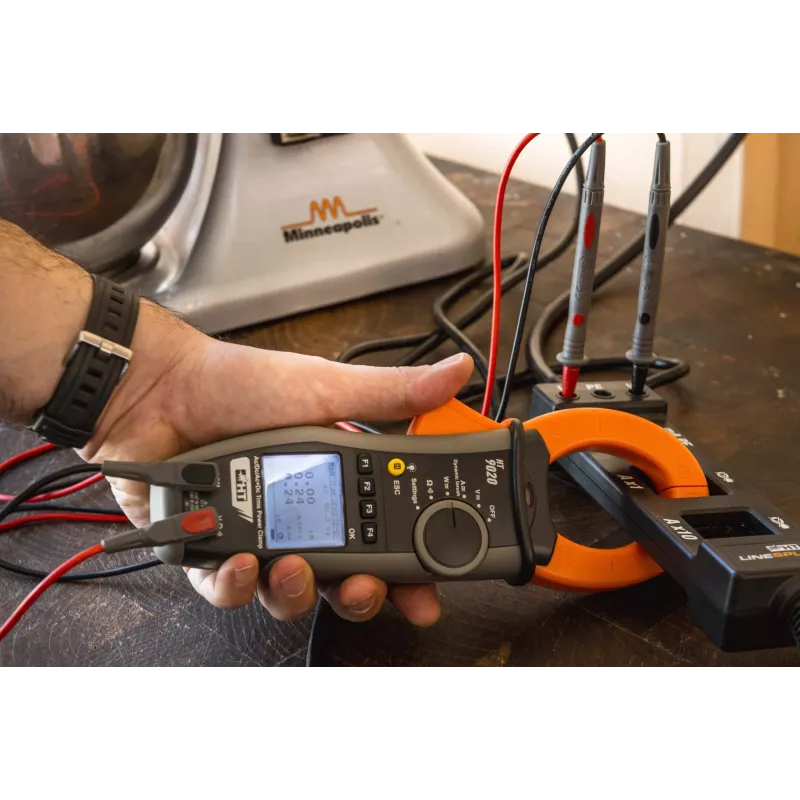

This line splitter enables non-invasive current measurement with a clamp meter, eliminating the need to break the circuit or use risky test leads. The 1:10 ratio improves accuracy for low currents, and the 4mm sockets allow simultaneous voltage checks with a multimeter.

Ideal use cases

• Measuring current draw of appliances in residential or commercial settings
• Verifying voltage presence at a socket
• Performing load studies or energy audits
• Testing circuits for troubleshooting without disconnection

Good to know

The adapter is designed for single-phase systems up to 16 A and 250 V. It complies with EN 61010-1 and provides double insulation for user safety. Always follow local electrical safety regulations when working on live circuits.
