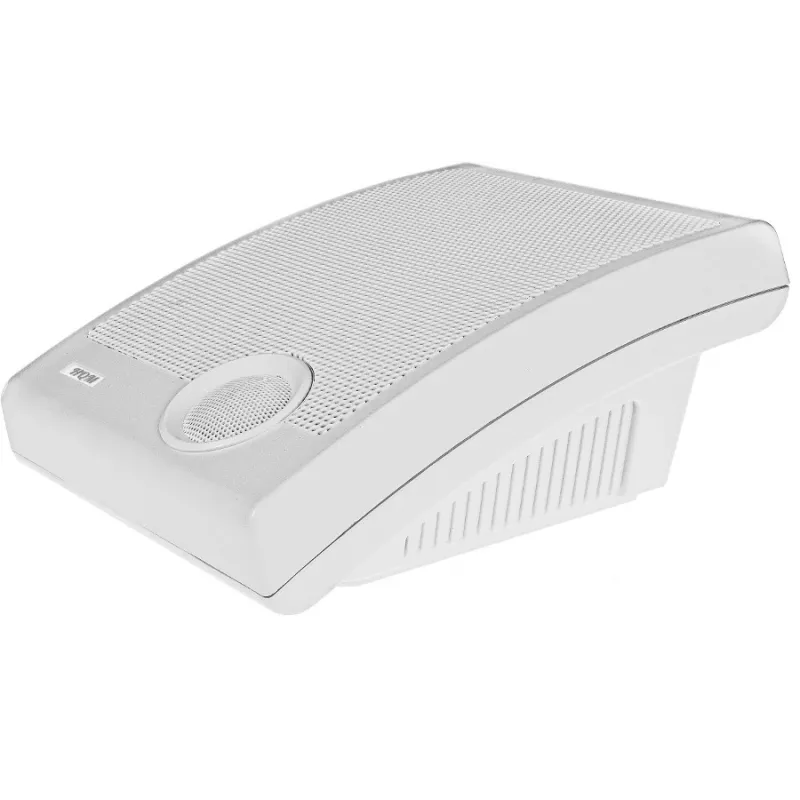

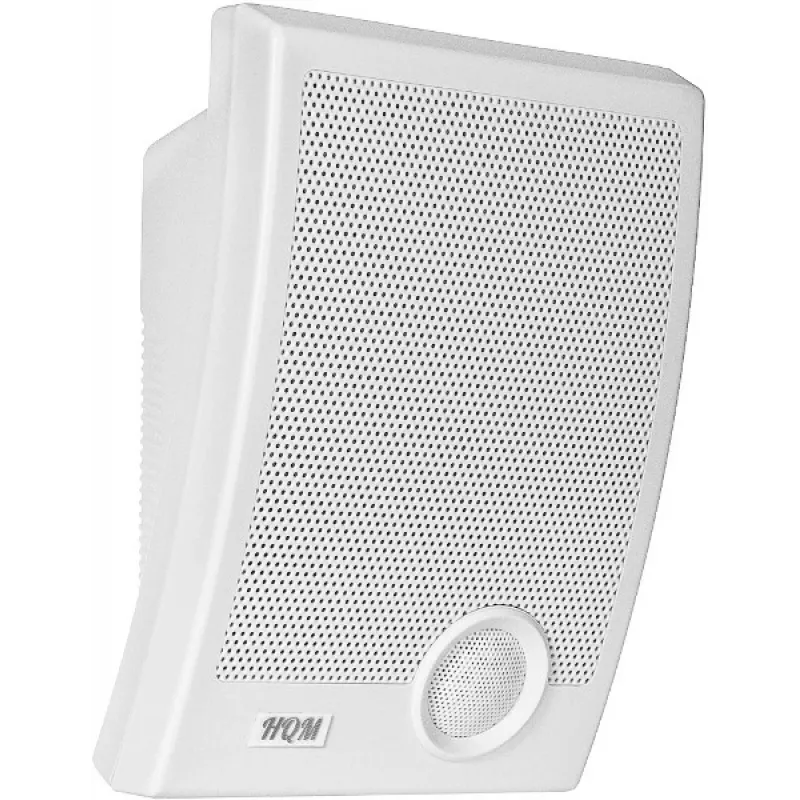

HQM Wall Speaker HQM-N10165 10W 100V White

The HQM HQM-N10165 is a professional wall-mounted speaker designed for 100V line public address systems. With a 10W RMS power output and a 6.5-inch full-range driver, it delivers clear and reliable audio for commercial installations such as retail stores, offices, schools, and hospitality venues. The speaker features multiple power taps (10W, 5W, 2.5W, 1.25W) for flexible volume adjustment and includes a built-in transformer for constant voltage systems. Its durable ABS plastic enclosure and metal grille ensure long-lasting performance, while the white finish blends seamlessly into any interior.

Advantages

This speaker offers easy surface wall mounting with screw terminals for secure connections. The 100V line technology allows multiple speakers to be connected in parallel without significant power loss, making it ideal for large-scale audio distribution. The wide frequency response (100 Hz - 18 kHz) ensures natural sound reproduction for both speech and background music.

Suitable for

• Public address systems in commercial buildings
• Background music in retail stores, restaurants, and hotels
• School and office announcements
• Indoor installations requiring reliable, high-impedance speakers

Key specifications

• Speaker Type: Wall-mounted
• Audio Technology: 100V Line (Constant Voltage)
• Rated Power Output: 10W RMS
• Power Taps: 10W, 5W, 2.5W, 1.25W
• Frequency Response: 100 Hz - 18 kHz
• Sensitivity (1W/1m): 90 dB
• Driver Size: 6.5 inches (Full-range)
• Nominal Impedance: 1 kΩ (at 10W, 100V)
• Enclosure Material: ABS Plastic
• Grille Material: Metal
• Colour: White
• Mounting Type: Surface Wall Mount
• Input Connection: Screw Terminals
• Built-in Transformer: Yes
• Installation Environment: Indoor

Recommendations

For optimal performance, use with a compatible 100V line amplifier and ensure proper impedance matching. This speaker is designed for indoor use only and should be installed by a qualified professional.
