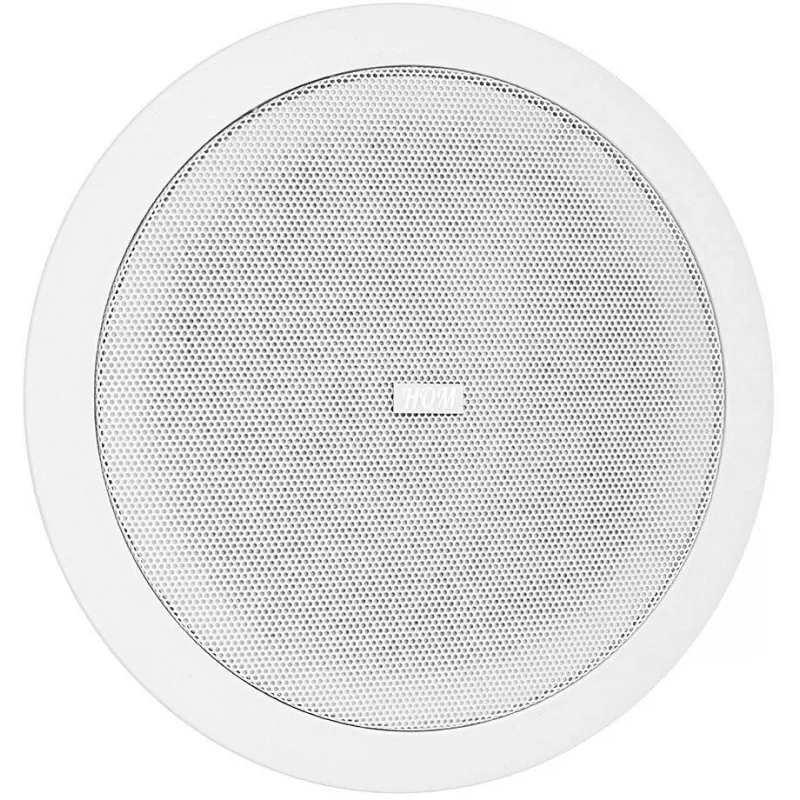

HQM Ceiling Speaker HQM-SO2026 20W 100V White

The HQM Ceiling Speaker HQM-SO2026 is a high-performance 20W 100V line speaker designed for professional public address and background music systems. With a built-in transformer and multiple power taps, it offers flexible installation and reliable audio delivery in commercial environments.

Advantages

This ceiling speaker delivers clear, balanced sound with a frequency response of 80 Hz - 18 kHz and a sensitivity of 90 dB. Its recessed mounting design ensures a discreet appearance, while the metal grille and ABS plastic housing provide durability and long-lasting performance. The built-in 100V line transformer allows easy integration into existing PA systems.

Suitable for

• Public address systems in retail stores, offices, and schools
• Background music in restaurants, hotels, and lobbies
• Commercial audio installations requiring 100V line speakers

Key specifications

• Speaker Type: Ceiling Speaker
• Audio System: 100V Line
• Rated Power (RMS): 20W
• Power Taps: 20W, 10W, 5W
• Frequency Response: 80 Hz - 18 kHz
• Sensitivity: 90 dB (1W/1m)
• Driver Size: 6.5 inches (165 mm)
• Mounting: Recessed
• Cutout Diameter: 200 mm
• Overall Diameter: 230 mm
• Mounting Depth: 85 mm
• Grille Material: Metal
• Housing Material: ABS Plastic
• Color: White
• Connectivity: Screw Terminals
• Transformer: Built-in 100V Line Transformer

Recommendations

For optimal performance, pair with a compatible 100V amplifier and ensure proper cutout dimensions. Ideal for ceiling installations where space and aesthetics are important.
