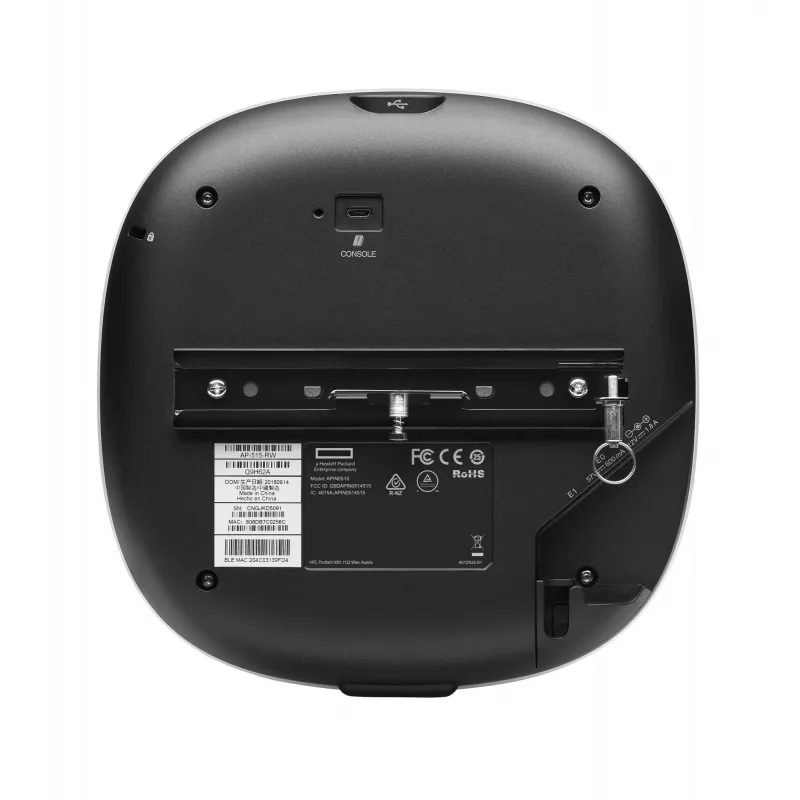

Wireless access point HP Enterprise Aruba AP-515 (RW) Dual Radio 4x4/2x2 Wi‑Fi 6, 2.4/5 GHz, pack of 10

The HP Enterprise Aruba AP-515 (RW) is a Wi‑Fi 6 dual‑radio campus access point kit (pack of 10) designed for medium‑density indoor environments such as offices, classrooms, training and meeting facilities, and hospitals. Each AP supports 2.4 GHz and 5 GHz bands with combined data rates up to 2.69 Gbps, multi‑gigabit Ethernet for fast wired connectivity, and an integrated IoT radio for Bluetooth 5 and Zigbee devices. The AP-515 supports 802.11ax features including OFDMA, Target Wake Time (TWT), WPA3 and Enhanced Open, and can be deployed using Zero Touch Provisioning (ZTP). The series includes a limited lifetime warranty.

Advantages

The AP-515 kit provides high‑performance Wi‑Fi 6 connectivity with up to 2.69 Gbps combined throughput and multi‑gigabit wired ports (2.5 Gbps and 1 Gbps) for backhaul or wired devices. Built‑in IoT radio support (Bluetooth 5 and Zigbee) and OFDMA/TWT support improve multi‑user efficiency and IoT battery life. Dynamic Segmentation and policy enforcement firewalls enable consistent security and access policies across wired and wireless networks. Available in optional eco‑friendly 10‑packs for simplified procurement and deployment.

Suitable for

• Office spaces and open-plan work areas
• Classrooms, training rooms and meeting facilities
• Healthcare facilities and hospitals (non-clinical wireless access)
• Public indoor spaces and medium‑density campus environments

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6)
• Radios: Dual radio (4x4 on one band, 2x2 on the other)
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum combined data rate: up to 2.69 Gbps
• Ethernet: 2.5 Gbps and 1 Gbps ports (multi‑gigabit support)
• IoT: Bluetooth 5 and Zigbee support
• Deployment: Zero Touch Provisioning (ZTP) supported
• Warranty: Limited lifetime warranty
• Kit: Pack of 10 access points (HP Enterprise Aruba AP‑515, MPN S3J29A)
• Unit weight: 0.81 kg (per AP)

How to use

Install each AP in recommended indoor locations to ensure full coverage for the target area, mount according to the included hardware and local building codes, and connect to the network using the multi‑gigabit Ethernet port. Use Zero Touch Provisioning (ZTP) for remote or bulk deployments to streamline initial configuration. Configure SSIDs, security settings (WPA3 or Enhanced Open as appropriate), and Dynamic Segmentation policies from the Aruba management platform or controller to enforce consistent access and firewall rules across wired and wireless networks. Enable IoT radio features where Bluetooth or Zigbee endpoints are used and apply OFDMA/TWT settings to optimise multi‑user performance and IoT battery life.

Recommendations

Place access points to avoid coverage overlap and RF interference: perform a site survey for optimal AP placement, prioritise multi‑gigabit uplinks for high‑traffic locations, and use Dynamic Segmentation to separate IoT, guest and corporate traffic for improved security and manageability.
