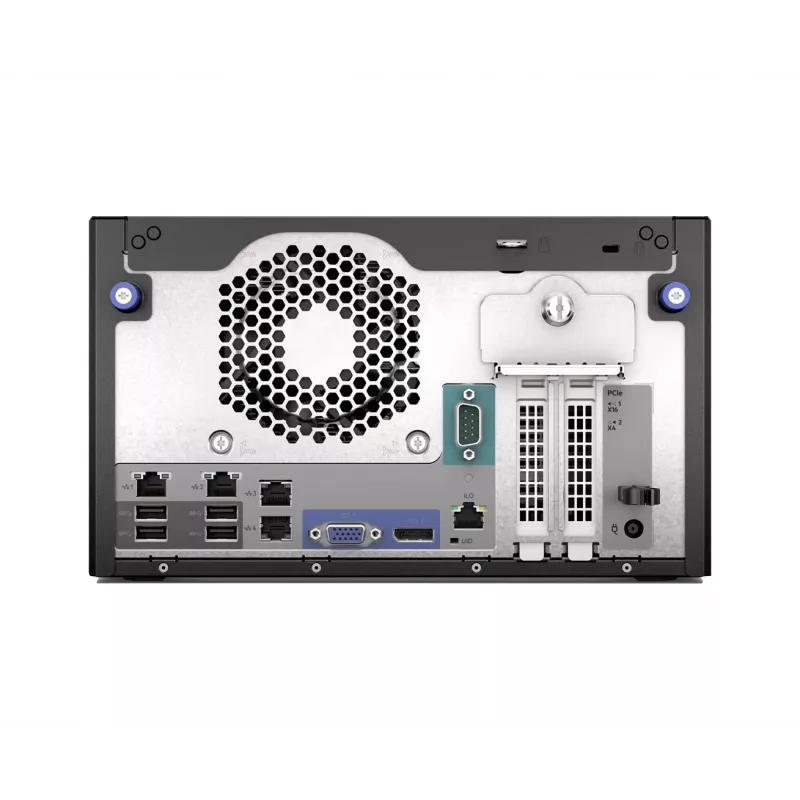

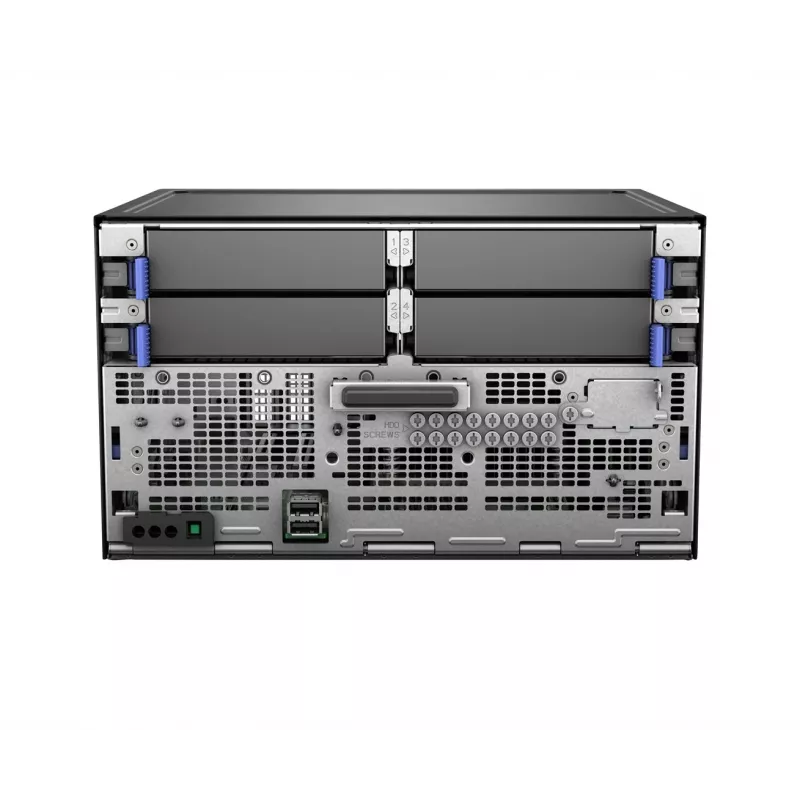

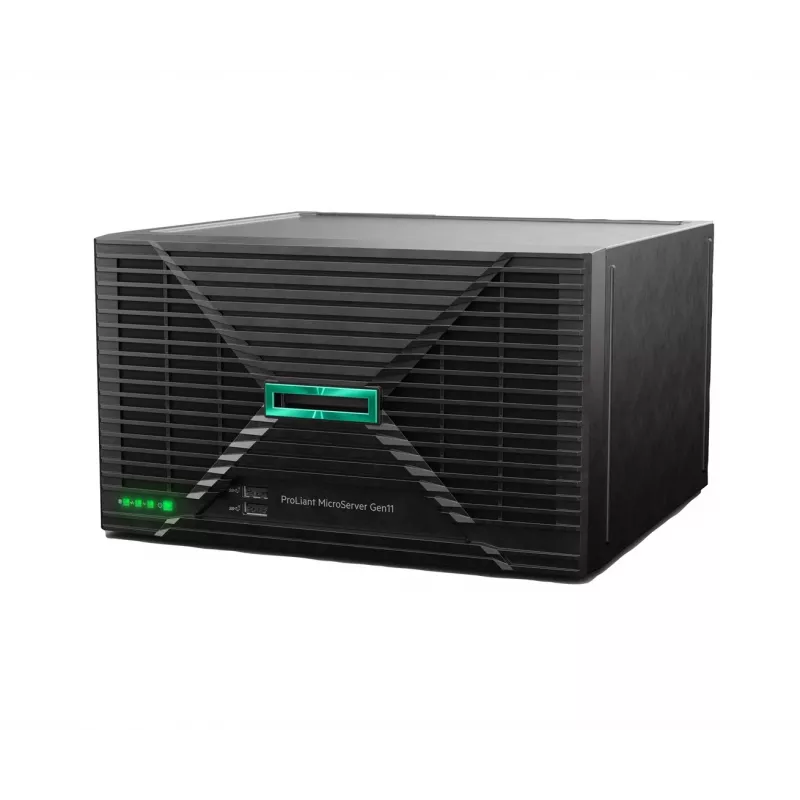

HPE ProLiant MicroServer Gen11 server Ultra Micro Tower Intel Xeon E-2414 2.6 GHz 16 GB DDR5-SDRAM 180 W

The HPE ProLiant MicroServer Gen11 is an ultra micro tower server designed for small offices and small businesses that need an affordable, compact, and configurable on‑premises or hybrid-capable server. It ships with an Intel Xeon E-2414 2.6 GHz processor, 16 GB DDR5 memory (expandable up to 128 GB across four DIMM slots), support for up to four 3.5" drives, and a 180 W power supply. The chassis can be placed flat, vertically, or wall mounted to fit constrained spaces.

Advantages

The MicroServer Gen11 combines enterprise-class features with a small footprint: support for modern Intel Xeon E and Pentium processors, DDR5 memory at 4400 MT/s, PCIe expansion including PCIe 5.0 lanes, and integrated security and remote management through HPE iLO with silicon root of trust and TPM 2.0. It offers flexible deployment options, quiet operation, and a low entry price that suits growing branch offices or remote sites.

Suitable for

• Small office file, print and collaboration servers
• Branch office and remote-site infrastructure
• Lightweight virtualization and container hosts
• On-premises hybrid cloud gateway or edge compute

Key specifications

• Processor: Intel Xeon E-2414, 2.6 GHz
• Internal memory: 16 GB DDR5 (4x DIMM slots, up to 128 GB, 4400 MT/s)
• Storage bays: supports up to 4 x 3.5" HDD
• Total storage capacity (as configured): 0 GB
• RAID support: Yes
• Power supply: 180 W
• Chassis type: Ultra Micro Tower (flat, vertical or wall mountable)
• Weight: 7.97 kg

How to use

Position the MicroServer Gen11 in the preferred orientation (flat, vertical or wall mounted) appropriate to your site. Install additional memory modules or storage drives as required using the four DIMM slots and up to four 3.5" bays. Configure RAID if needed, install your operating system or hypervisor, and enable HPE iLO for remote management. Follow standard rack or site wiring for network and power connections and verify firmware and iLO settings during initial setup.

Recommendations

For best performance and manageability, populate memory in matched DDR5 modules across DIMM slots to reach appropriate capacity (up to 128 GB), use enterprise-grade 3.5" drives with RAID for redundancy, and enable HPE iLO and TPM 2.0 for secure remote administration. Choose the optional wall mount kit when space is constrained.
