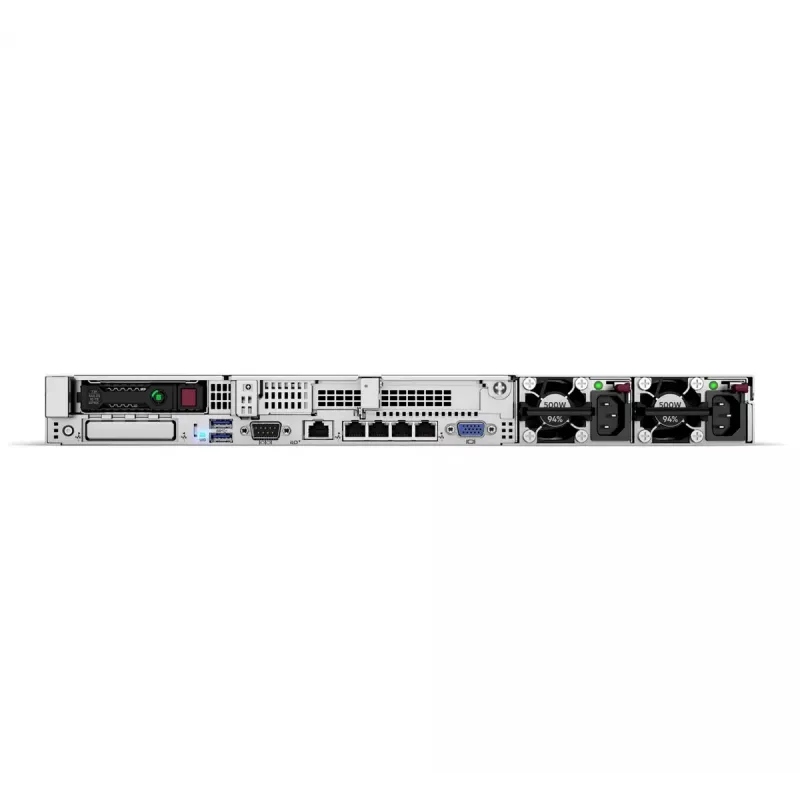

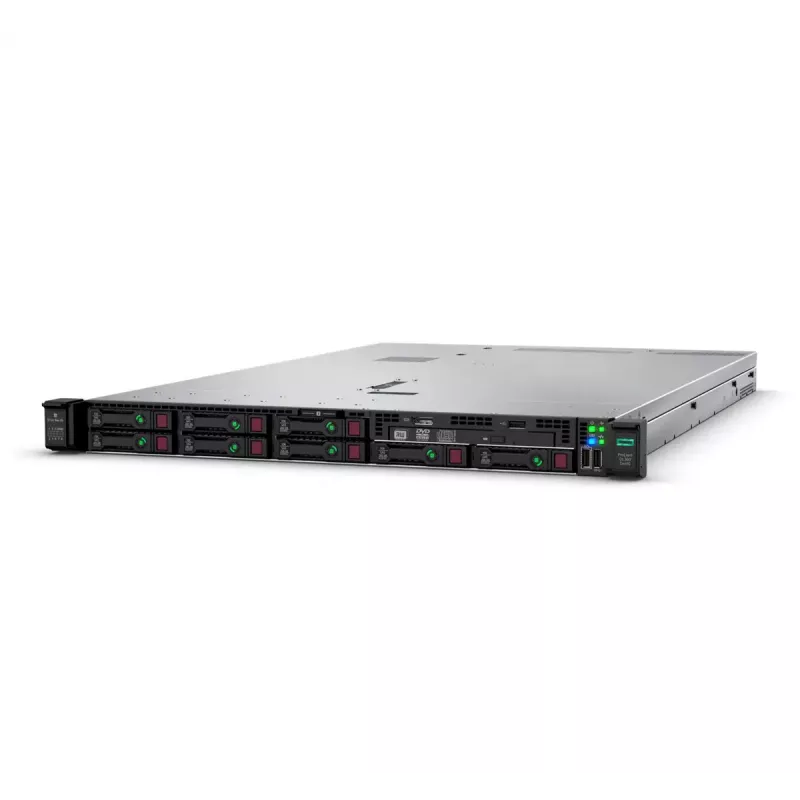

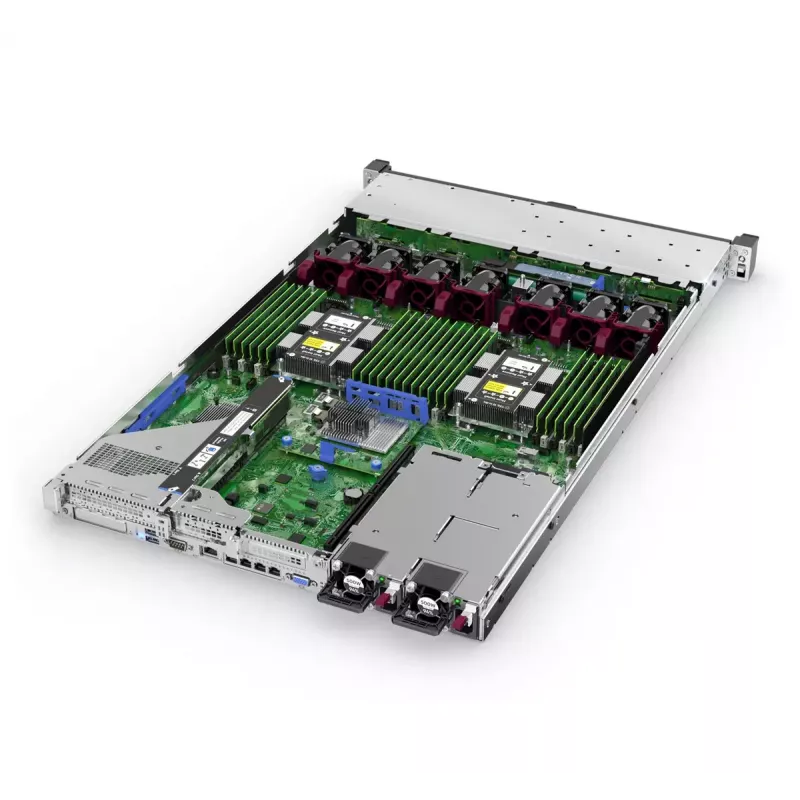

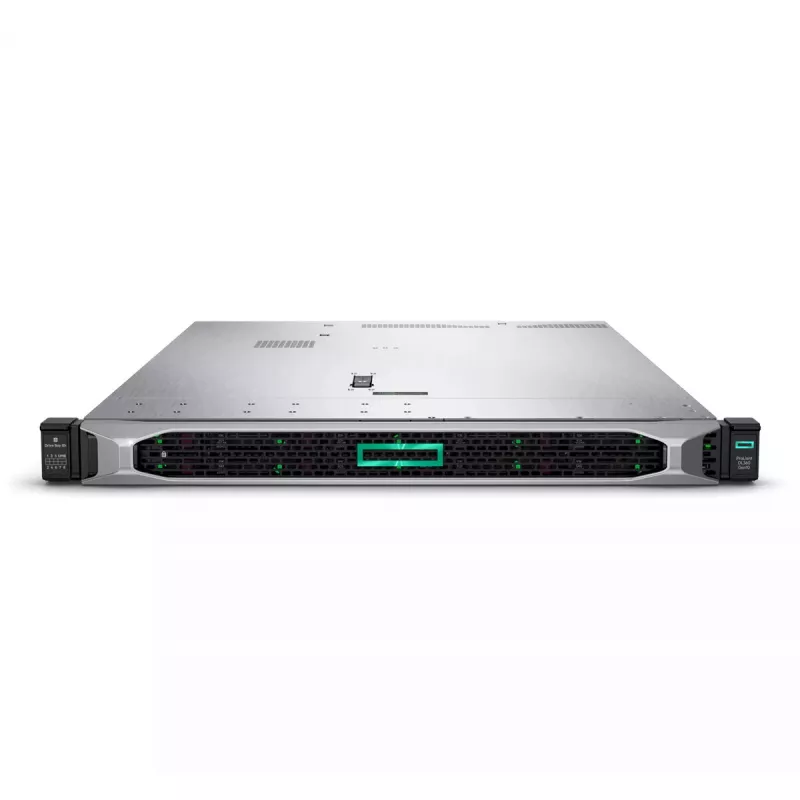

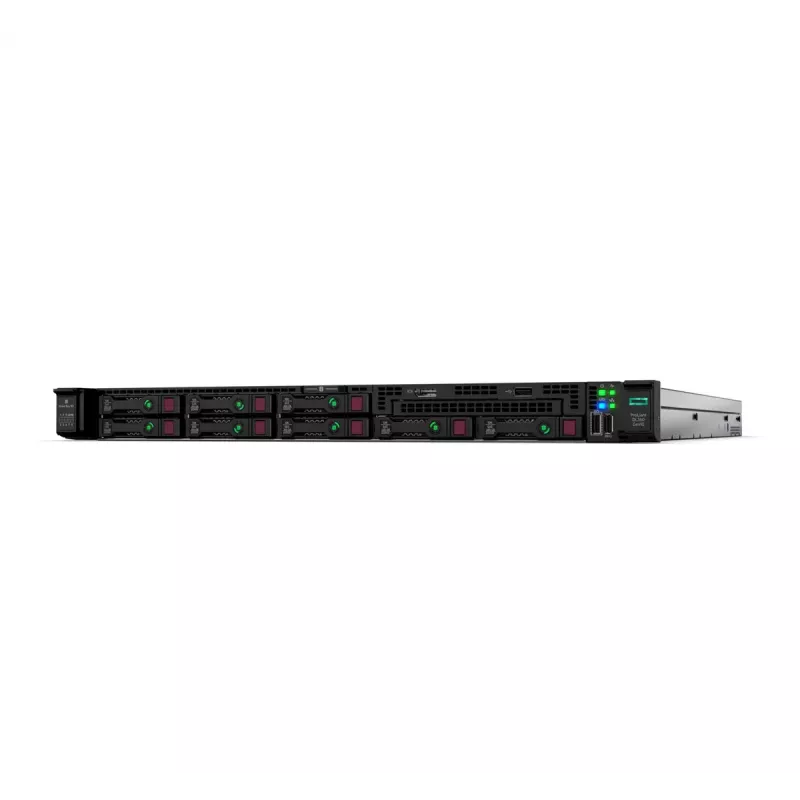

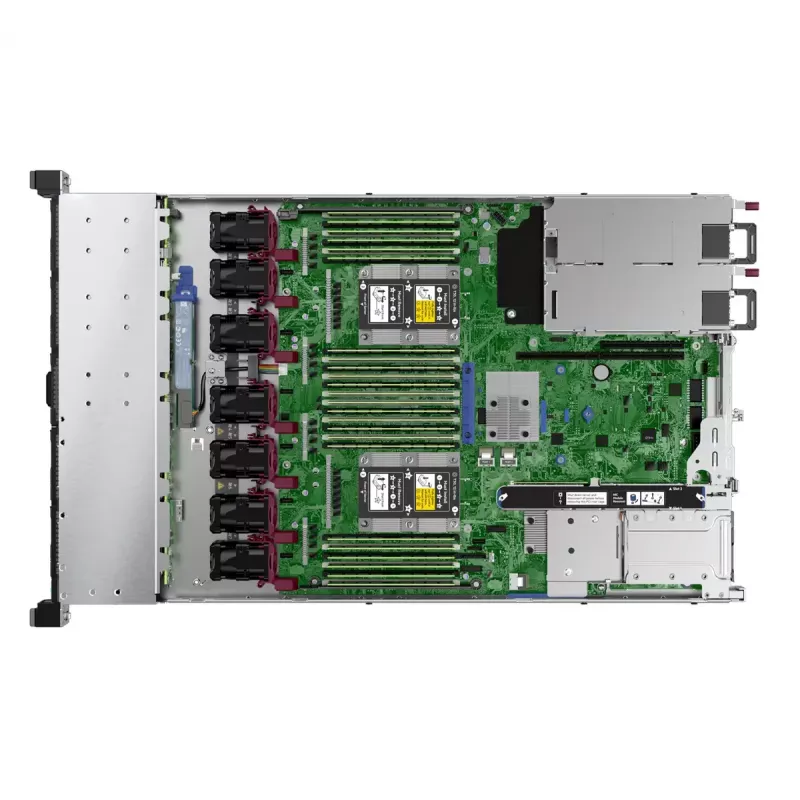

HPE ProLiant DL360 Gen10 server Rack 1U Intel Xeon Gold 5218 32 GB DDR4

The HPE ProLiant DL360 Gen10 is a 1U rack server engineered for secure, high-density compute in space-constrained data centers. This configuration includes an Intel Xeon Gold 5218 processor (2.3 GHz), 32 GB DDR4 memory and an 800 W power supply. The platform supports the Intel Xeon Scalable family, up to 24 DIMM slots and up to 3.0 TB of HPE DDR4 SmartMemory, multiple drive form factors and NVMe options to meet virtualization, database and high-performance computing needs.

Advantages

The server combines industry-standard Intel Xeon Scalable processing with a dense 1U design that supports up to 24 DIMMs, 12 NVDIMMs, and flexible storage choices including SFF, LFF and up to ten NVMe SSDs. Security features include Silicon Root of Trust, runtime firmware validation and secure recovery. Management and lifecycle automation are available through HPE OneView and HPE iLO 5. Serviceability and deployment are supported by HPE Technology Services and HPE Pointnext offerings.

Suitable for

• Virtualization and hyperconverged infrastructure
• Relational databases and in-memory analytics
• High-performance computing (HPC) and technical workloads
• Consolidated enterprise applications and web services

Key specifications

• Processor: Intel Xeon Gold 5218, 2.3 GHz (Intel Xeon Scalable family supported)
• Memory (installed): 32 GB DDR4; maximum supported: up to 1536 GB (24x DIMM slots)
• Persistent memory support: up to 12 NVDIMMs (HPE Persistent Memory)
• Storage: supports 2.5" drives (SFF); flexible drive bay options including up to ten SFF or four LFF and NVMe support
• RAID: supported (controller options available)
• Power supply: 800 W
• Chassis: 1U rack
• Expansion: up to three PCIe 3.0 slots
• Networking: embedded 4x1GbE plus FlexibleLOM or PCIe adapters (1GbE, 10GbE or 25GbE options)

How to use

Install the HPE ProLiant DL360 Gen10 into a standard 19" 1U rack space and connect redundant power and network interfaces according to your data center cabling plan. Populate memory and storage according to workload requirements—use available DIMM slots and NVDIMMs for database or in-memory workloads and NVMe drives for high I/O performance. Configure RAID through the supported controller if required. Use HPE iLO 5 and HPE OneView for initial provisioning, firmware updates, monitoring and routine lifecycle automation.

Recommendations

For best performance in virtualization, databases or analytics, balance CPU cores, memory capacity and storage type: use larger memory configurations or NVDIMMs for in-memory databases and NVMe SSDs for latency-sensitive storage. Keep firmware and iLO components updated and enable runtime firmware validation and Secure Recovery to help maintain platform integrity.
