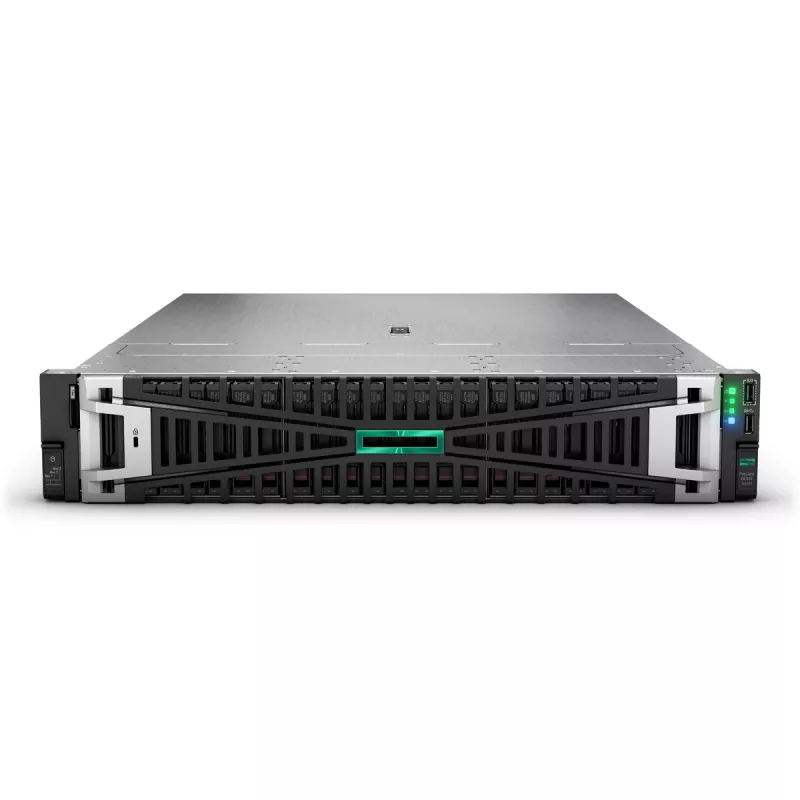

HPE ProLiant DL345 Gen11 9015 3.5GHz 8c 64GB 1.92TB Rack Server

The HPE ProLiant DL345 Gen11 9015 is a 2U single-socket rack server built for data‑intensive, virtualized and large‑capacity storage workloads. It is powered by an AMD EPYC processor (4th/5th Gen family) and configured here with an AMD EPYC 9015 3.6 GHz CPU, 64 GB DDR5 memory and 1.92 TB internal storage. The platform supports high memory capacity and bandwidth, PCIe Gen5 I/O, multiple drive bay layouts and up to four front GPUs, delivering a balance of compute performance and flexible storage at single‑processor economics.

Advantages

This server offers increased memory bandwidth and support for large DDR5 configurations, PCIe Gen5 expansion for higher throughput, and a variety of drive options including SFF, LFF and EDSFF to scale storage density. Enhanced firmware security with a silicon root of trust and the AMD Secure Processor helps validate safe boot. Integrated Lights‑Out (iLO 6) provides remote management for configuration, monitoring and updates. The supplied configuration includes a 1000 W power supply suitable for 2U rack installation.

Suitable for

• Virtualized server environments and hyperconverged infrastructure
• Software‑defined storage and high‑capacity data repositories
• Data‑intensive workloads such as analytics and database services
• Edge and branch installations requiring a single‑socket 2U server

Key specifications

• Processor family: AMD EPYC (configured with AMD EPYC 9015, 3.6 GHz)
• Memory: 64 GB DDR5 (2 x 32 GB), supports up to 3 TB DDR5 6400 MT/s on platform
• Storage: 1.92 TB total internal capacity (2 drives installed in this configuration)
• Drive bays: up to 20 LFF / 34 SFF / 36 EDSFF depending on chassis option
• Expansion: PCIe Gen5 (multiple x16 lanes and OCP 3.0 options)
• Form factor: Rack 2U
• Power supply: 1000 W
• Management: HPE Integrated Lights‑Out 6 (iLO 6)
• Weight: 39 kg

How to use

Install the server into a standard 19‑inch rack using the 2U mounting rails and connect power and network cabling according to rack design. Use iLO 6 for remote setup, firmware updates and hardware monitoring. Configure storage and RAID using the available hot‑pluggable drive bays or M.2 RAID boot options as required by your workload. Populate memory and PCIe expansion slots following HPE installation guidelines to achieve the desired performance and capacity.

Recommendations

For data‑intensive and virtualized deployments, use higher‑capacity DDR5 modules and populate available drive bays with appropriate NVMe or SATA/SAS devices to align with performance and capacity targets. Keep firmware and iLO up to date and follow HPE guidance for power and cooling in a 2U rack environment.
