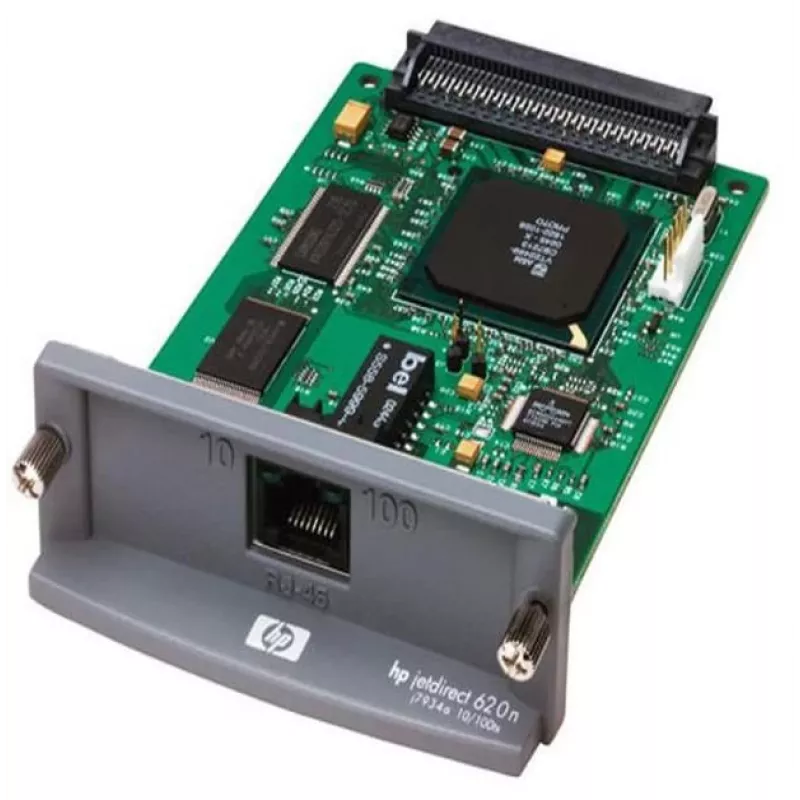

Printserver HP Jetdirect 620 EIO J7934GB-RFB — Ethernet print server card with USB

The HP Jetdirect 620 EIO is an EIO-format Ethernet print server card with a USB interface that enables a compatible printer to join a wired office or workgroup network. Installed into an HP device that supports EIO expansion, the card provides a stable Ethernet connection and USB device access so the printer can be shared, managed centrally and accessed remotely over the LAN. The design fits into the expansion slot of supported HP hardware and is intended for environments where a fixed wired network connection and reliable print delivery are required.

Advantages

The built-in Ethernet interface ensures consistent network connectivity and low-latency job delivery. The USB port allows straightforward connection to the printer’s host interface without additional adapters. Being an EIO expansion card, it integrates directly into compatible HP devices for a neat, secure installation that does not occupy external ports or USB hubs. The Jetdirect implementation supports standard network printing protocols for compatibility with common operating systems and print management tools.

Suitable for

• Small and medium office environments requiring shared printer access
• Workgroups that need centralized print management and queue control
• Installations where a fixed wired Ethernet connection is preferred over wireless
• IT environments that use standard network printing protocols and infrastructure

Key specifications

• Form factor: EIO expansion card for compatible HP printers
• Network interface: 10/100 Mbps Ethernet port for wired LAN connection
• Printer interface: USB device connector for direct connection to printer electronics
• Supported network protocols: standard TCP/IP-based printing protocols and Jetdirect-compatible services
• Installation: fits into the device’s EIO slot; internal mounting with external network cable connection

How to use

Power off the compatible HP device, install the EIO card into the designated expansion slot and secure it according to the device’s service instructions. Connect an Ethernet cable from the LAN to the card’s RJ-45 port and attach the printer’s USB interface if required. Power on the device and configure the network settings via the printer control panel or the network administration interface. Install or update drivers on client computers as needed and add the network printer using the operating system’s standard printer installation workflow or your print management software.

Recommendations

Use the HP Jetdirect 620 EIO in wired networks with stable Ethernet infrastructure and assign a static or reserved IP address for consistent discoverability. Keep firmware and drivers up to date to maintain compatibility and security. For multi-vendor networks, verify that the printing protocols required by client systems are enabled on both the card and the print server configuration.
