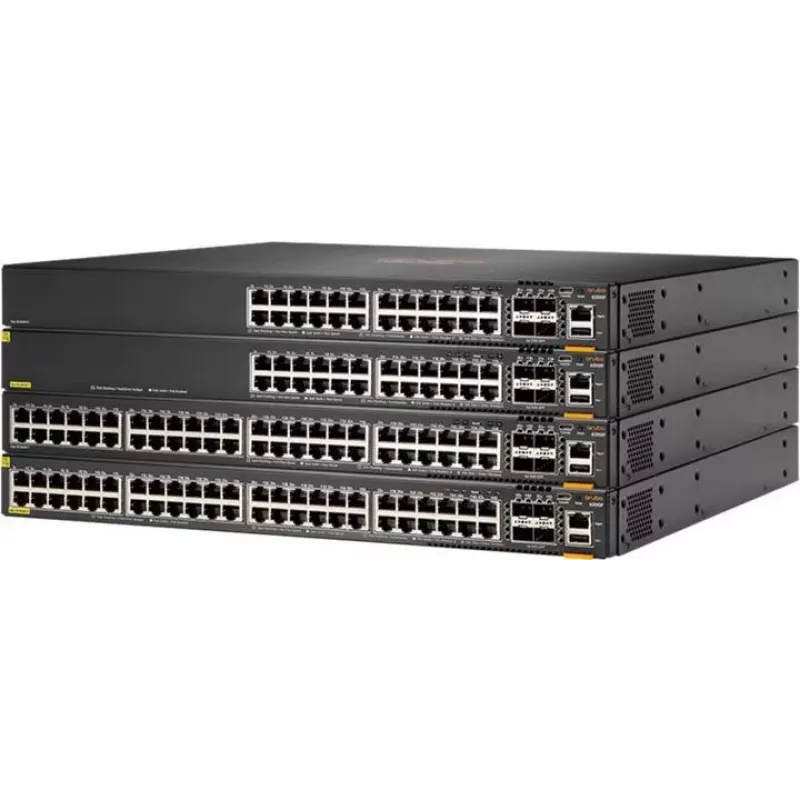

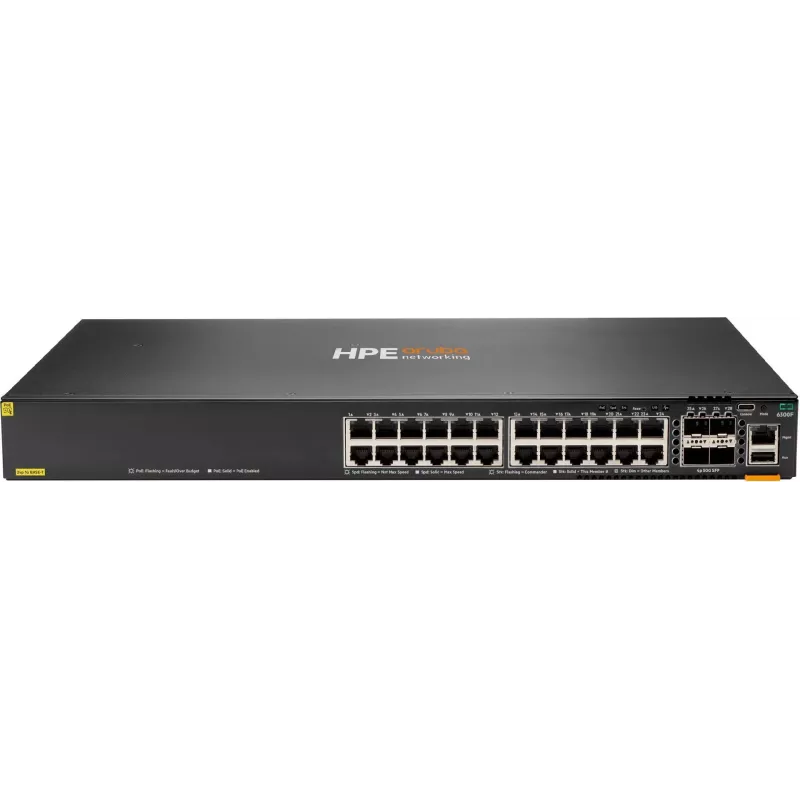

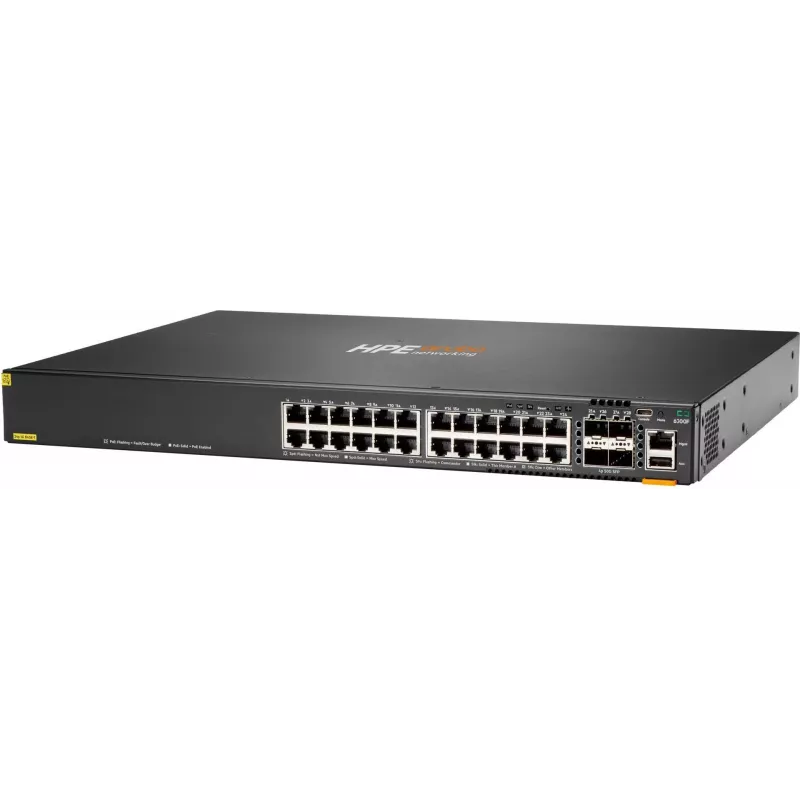

HPE Aruba 6300F Switch L3 Managed 24x 10/100/1000 PoE+ 4x 50GbE SFP56 Front-to-Back Airflow

The HPE Aruba 6300F is a high-performance, managed Layer 3 switch designed for enterprise edge and branch deployments. With 24 PoE+ ports and 4 uplink ports supporting up to 50 Gigabit Ethernet, it delivers robust connectivity and power for modern networks. The front-to-back airflow ensures efficient cooling in rack environments.

Advantages

This switch offers advanced security features, virtual stacking (VSF) for scalability, and comprehensive management options including Aruba Central and CLI. Its 740W PoE budget supports devices like IP cameras and wireless access points.

Suitable for

• Enterprise edge networks requiring high-density PoE+
• Branch offices needing reliable Layer 3 switching
• Deployments requiring front-to-back airflow

Key specifications

• 24 x 10/100/1000Base-T PoE+ ports (Class 4)
• 4 x 1/10/25/50 Gigabit SFP56 uplink ports
• Switching capacity: 336 Gbps
• Throughput: 250 Mpps
• PoE power budget: 740 W
• Form factor: 1U rack-mountable
• Management: Aruba Central, NetEdit, CLI, Web GUI, SNMP
• Security: ACLs, DHCP Snooping, Port Security, RADIUS/TACACS+, MACsec
• Virtual Stacking (VSF) up to 8 units
• Jumbo frame support up to 9198 bytes
• MAC address table: 32,768 entries
• Routing table: 32,768 entries (IPv4/IPv6)
• Flash memory: 8 GB, DRAM: 4 GB
• Operating temperature: 0 to 45 °C

Recommendations

Ideal for organizations seeking a future-proof, high-performance switch with advanced management and security features. The 50GbE uplinks provide investment protection for growing bandwidth needs.
