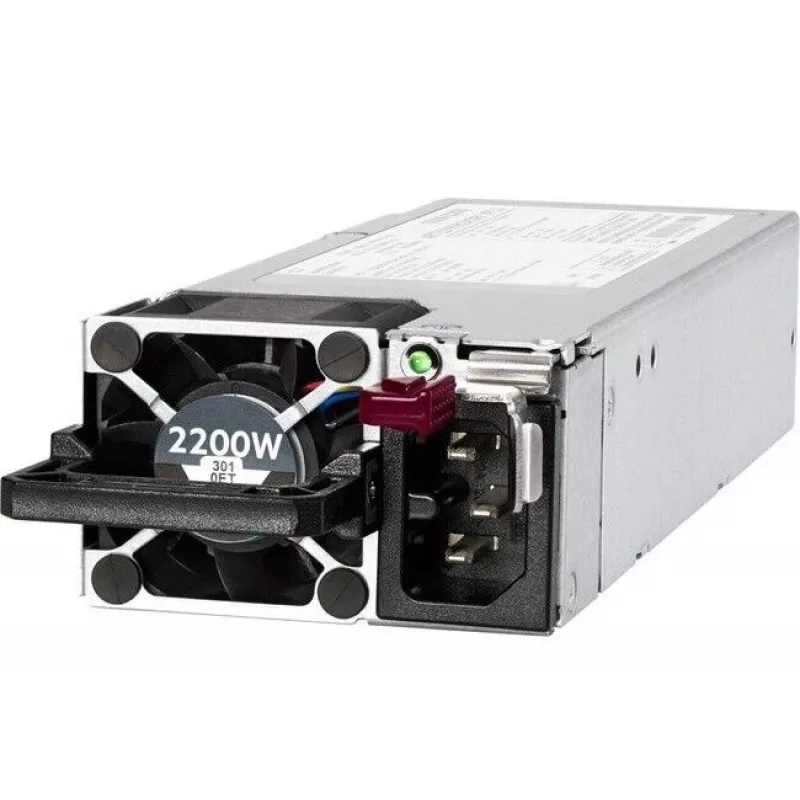

HPE 2200W Titanium Hot Plug Power Supply for Synergy 12000 Frame (P47163-001)

The HPE 2200W Titanium Hot Plug Power Supply (P47163-001) is a high-efficiency AC power supply designed for the HPE Synergy 12000 Frame. With 80 PLUS Titanium certification and up to 96% energy efficiency, it reduces power consumption and operational costs while delivering reliable 2200W output. Its hot-plug design enables easy replacement without system downtime, and active PFC ensures stable performance across varying input voltages.

Advantages

This power supply offers exceptional energy savings, hot-swap capability for continuous operation, and robust build quality backed by HPE's reliability. It supports redundancy configurations to maximize uptime in critical environments.

Suitable for

• HPE Synergy 12000 Frame enclosures
• Enterprise data centers requiring high-efficiency power
• Mission-critical applications needing hot-plug redundancy

Key specifications

• Power Output: 2200 W
• Efficiency: 80 PLUS Titanium (up to 96%)
• Form Factor: Hot-plug
• Input Voltage: 200-240 VAC
• Input Frequency: 50/60 Hz
• Input Connector: IEC 60320 C20
• Compatibility: HPE Synergy 12000 Frame
• Hot Swap: Yes
• Redundancy Support: Yes
• Power Factor Correction: Active PFC
• Operating Temperature: 5°C to 40°C
• Humidity: 5% to 95% (non-condensing)
• Certifications: CE, FCC Class A, UL, CSA, TUV, VCCI, C-Tick, BSMI, CCC, KCC, EAC, WEEE, RoHS

Recommendations

For optimal performance and redundancy, pair this power supply with compatible HPE Synergy components and ensure proper ventilation in the rack.
