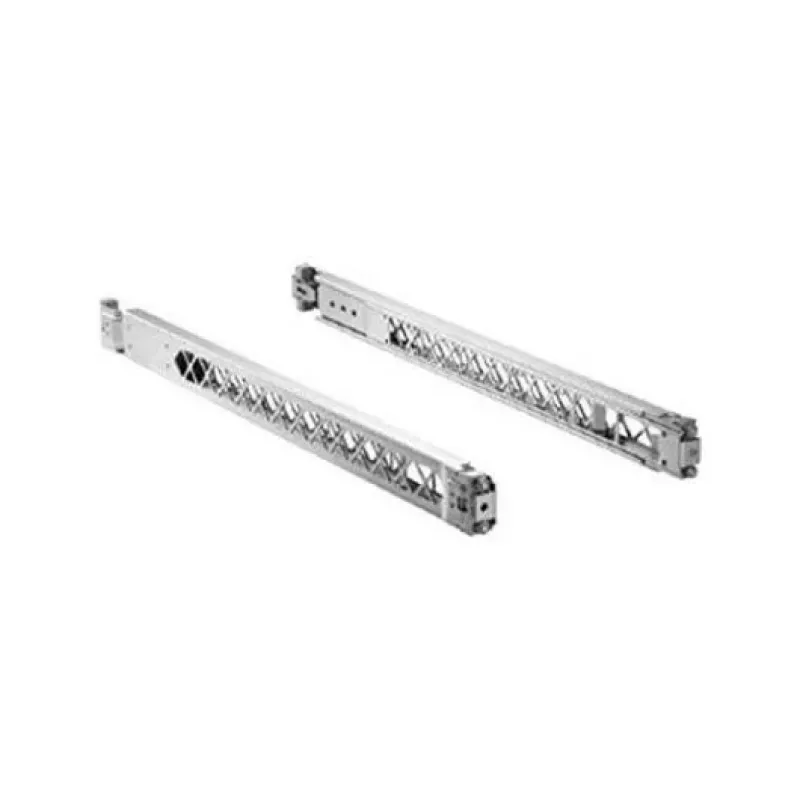

1U Short Friction Rail Kit Hewlett Packard Enterprise 775612-B21

The 1U Short Friction Rail Kit Hewlett Packard Enterprise 775612-B21 is a rack-mount rail system designed to install and support 1U HPE servers. The kit provides a compact, stable mounting solution for server chassis, facilitating efficient use of rack space and allowing controlled front-to-back sliding of the server for access and maintenance.

Advantages

The friction rail design enables smooth, tool-less sliding and holds the server securely in position without additional locking hardware. The short 1U form factor reduces required rail depth, making the kit suitable for racks with limited rear clearance. Built to HPE specifications, it offers compatibility with supported HPE server models and a consistent mounting interface for repeatable installations.

Suitable for

• Mounting 1U HPE servers in standard 19-inch racks
• Racks with limited rear clearance where short rails are required
• Data center and server room environments requiring easy access for service

Key specifications

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model / MPN: 775612-B21
• Form factor: 1U short friction rail
• Compatibility: Designed for compatible HPE 1U server models (refer to HPE compatibility documentation)
• Mounting type: Front-to-back rack rails for 19-inch racks

How to use

Install the rail assemblies to the rack uprights at the required unit positions, following rack and server manufacturer instructions. Slide the server into the rails until the chassis seats against the front mounting points; the friction mechanism will provide retention. For removal, support the server weight, disengage the friction hold by following the server-specific release procedure, and slide the chassis out on the rails.

Recommendations

Verify the server model compatibility with HPE documentation before installation, confirm rack depth and available clearance, and follow ESD and safety procedures during mounting and service operations.
