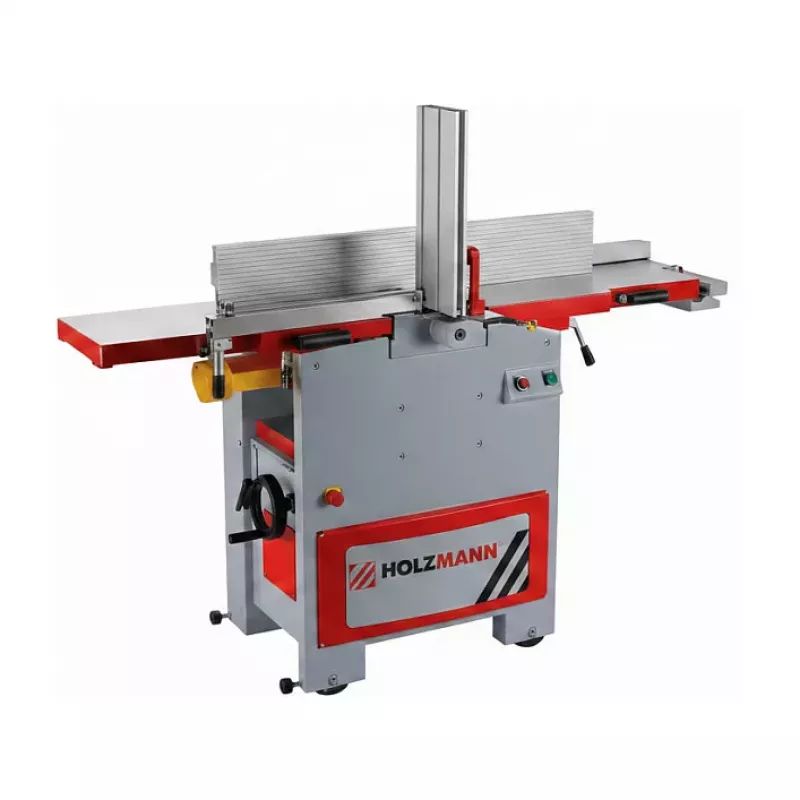

HOLZMANN MASCHINEN HOB305PRO 400V Combined Planer and Thicknesser

The HOLZMANN MASCHINEN HOB305PRO 400V is a professional combined planer and thicknesser designed for precision woodworking. With a powerful 3.0 kW (S1) motor and 400V three-phase power, this machine delivers reliable performance for planing and thicknessing operations. It features a maximum planing width of 305 mm and a thicknessing capacity up to 220 mm, making it ideal for workshops and joinery.

Advantages

Robust construction with a 70 mm cutter block running at 5500 rpm ensures smooth finishes. The fence tilts from 90° to 45° for bevel cuts, and the large planing table (1520 x 305 mm) provides stability. Dust extraction via a 100 mm port keeps the workspace clean.

Suitable for

• Professional carpenters and joiners
• Woodworking workshops requiring precise planing and thicknessing
• Processing solid wood up to 305 mm width

Key specifications

• Motor Power (S1): 3.0 kW
• Motor Power (S6): 4.2 kW
• Voltage: 400 V / 3 Phase
• Max. Planing Width: 305 mm
• Max. Planing Depth: 3 mm
• Planing Table Dimensions: 1520 x 305 mm
• Thicknessing Width: 305 mm
• Thicknessing Height: 5 - 220 mm
• Max. Thicknessing Depth: 3 mm
• Feed Speed (Thicknesser): 5.5 m/min
• Cutter Block Diameter: 70 mm
• Number of Planer Knives: 3
• Cutter Block Speed: 5500 rpm
• Dust Port Diameter: 100 mm
• Fence Tilt: 90° - 45°
• Fence Dimensions: 1100 x 155 mm

Recommendations

For optimal results, use sharp planer knives and ensure proper dust extraction. This machine is a reliable workhorse for demanding woodworking tasks.
