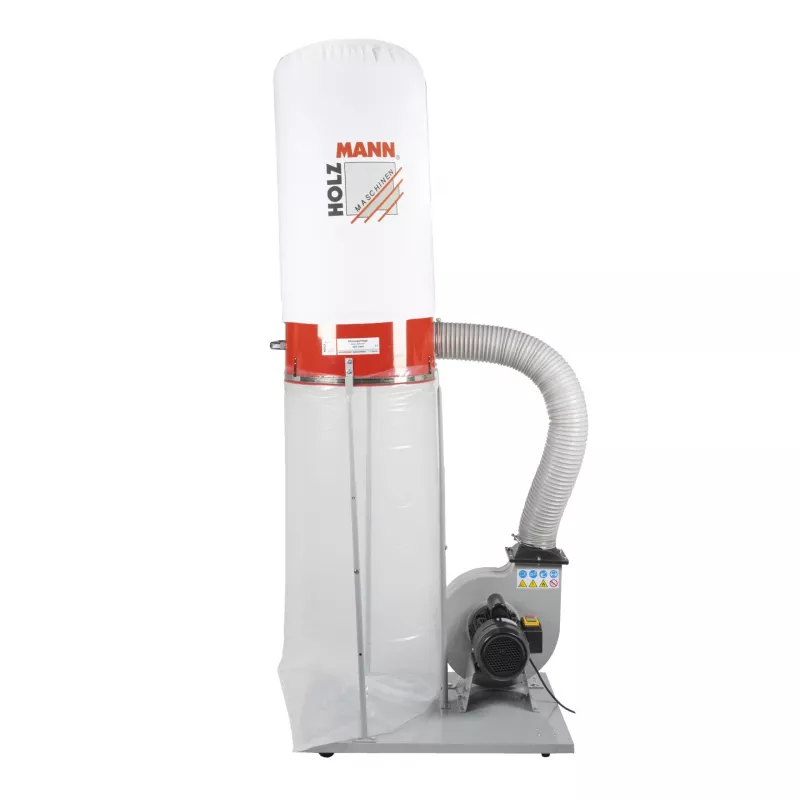

HOLZMANN MASCHINEN ABS2480 230V Extraction System with Connection Distributor

The HOLZMANN MASCHINEN ABS2480 230V Extraction System is a powerful and versatile dust extraction solution designed for professional workshops and industrial environments. With a robust 1.5 kW motor and an impressive airflow capacity of 2480 m³/h, this system efficiently removes dust and debris, ensuring a cleaner and safer workspace. The integrated connection distributor allows for simultaneous connection of up to three machines, making it an ideal central extraction unit.

Advantages

High-performance extraction with 2480 m³/h airflow and 1800 Pa vacuum pressure. Durable metal impeller and fine dust filter bag ensure long-lasting operation. Mobile design with integrated castors for easy positioning. Three 100 mm inlets provide flexibility for connecting multiple machines.

Suitable for

• Woodworking shops and joinery
• Industrial production facilities
• DIY enthusiasts with multiple machines
• Centralized dust extraction systems

Key specifications

• Motor Power: 1.5 kW (2.0 HP)
• Voltage: 230 V
• Frequency: 50 Hz
• Airflow Capacity: 2480 m³/h
• Max. Vacuum Pressure: 1800 Pa
• Hose Connection Diameter: 100 mm
• Number of Inlets (with distributor): 3 x 100 mm
• Collection Bag Volume: 160 L (2 x 80 L)
• Filter Surface Area: 2.8 m²
• Fan Diameter: 230 mm
• Noise Level: 87 dB(A)
• Impeller Material: Metal
• Filter Type: Fine dust filter bag
• Mobility: Integrated castors
• Motor Speed: 2950 rpm
• Protection Class: IP20

Recommendations

For optimal performance, use with 100 mm hoses and ensure regular cleaning of the filter bag. Suitable for continuous operation in professional settings.
