Dust Extraction System Bosch GDE 230 FC-S Professional

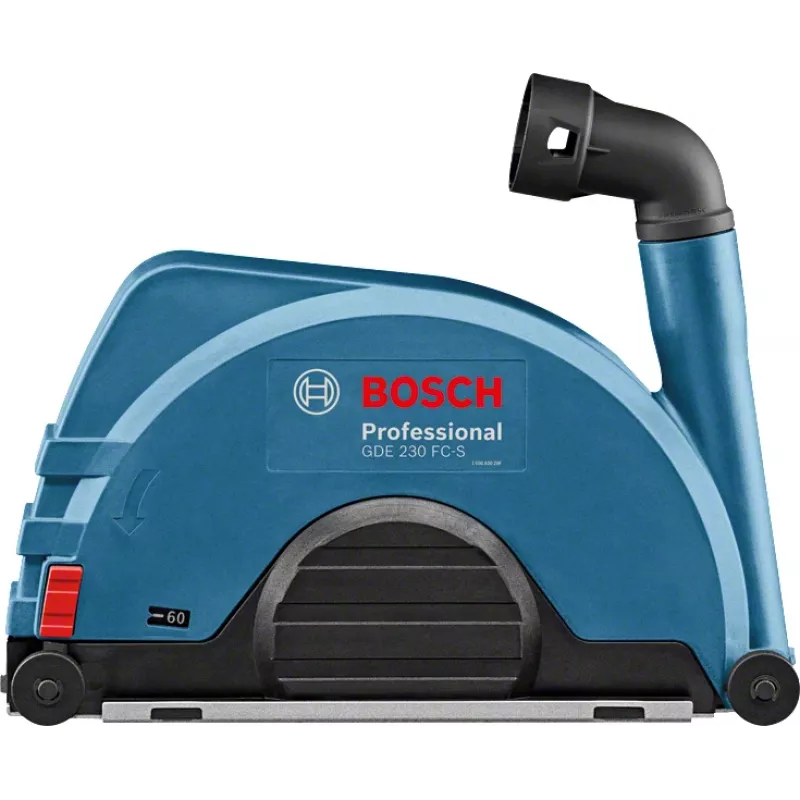

The Bosch GDE 230 FC-S Professional is a full-cover dust guard designed for angle grinders with 230 mm disc diameters and standard protective guards. It improves dust extraction during cutting tasks by enclosing the cutting area and directing dust toward a connected extractor. The guard is lightweight and compact, compatible with the Bosch Click & Clean system and many angle grinders featuring standard protective guards.

Advantages

The full-cover shape provides enhanced dust extraction for cleaner work and better visibility. A 360° connection between the angle grinder and the dust extractor allows flexible handling and quick alignment. Adjustable cutting depth and integrated wheels enable precise, controlled cuts. Compatibility with Bosch Click & Clean and a wide range of angle grinders ensures broad usability.

Suitable for

• Dust-reduced cutting of metal and masonry with 230 mm angle grinders
• Worksites where improved visibility and cleaner air are required
• Applications requiring adjustable cutting depth and guided cuts

Key specifications

• Model: GDE 230 FC-S Professional
• Disc diameter compatibility: 230 mm

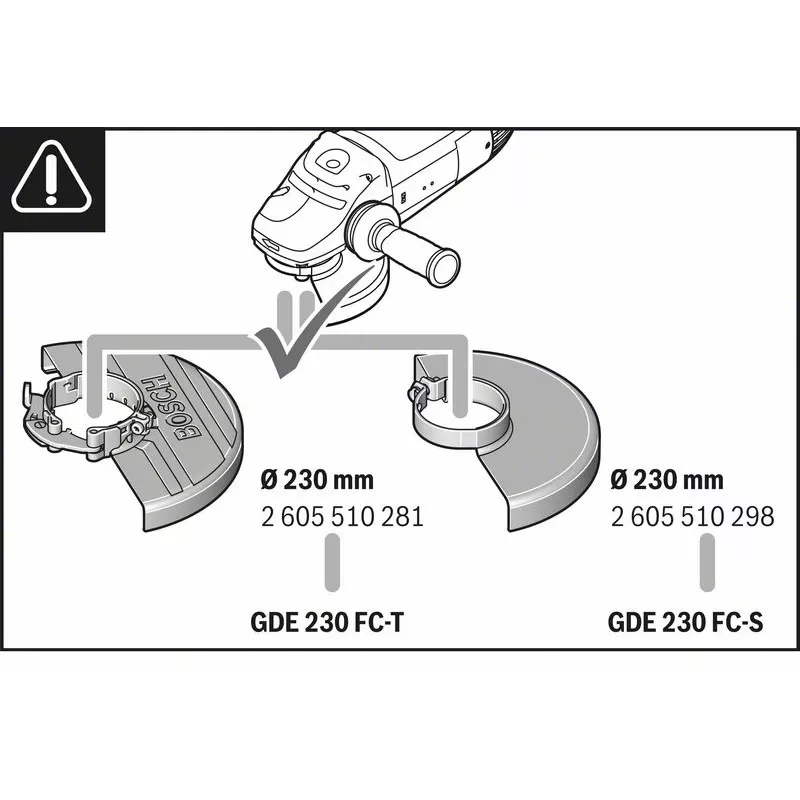

• Compatibility: Bosch Click & Clean system and many angle grinders with standard protective guards
• Weight (approx.): 2.1 kg
• Manufacturer part number (MPN): 1600A003DL
• EAN: 3165140800594

How to use

Fit the GDE 230 FC-S to an angle grinder with a standard protective guard and attach a compatible dust extractor to the 360° connection. Adjust the guard to the required cutting depth and rest the integrated wheels on the workpiece to guide the cut. Operate the grinder and extractor together to ensure dust is drawn away from the cutting zone.

Recommendations

Use the dust extractor with suitable filters and maintain regular cleaning of the guard. Verify compatibility with your angle grinder’s protective guard before use and follow the angle grinder and dust extractor safety instructions.
