Hinge drill bit set wolfcraft GmbH 4656000 3 pcs suitable for wood

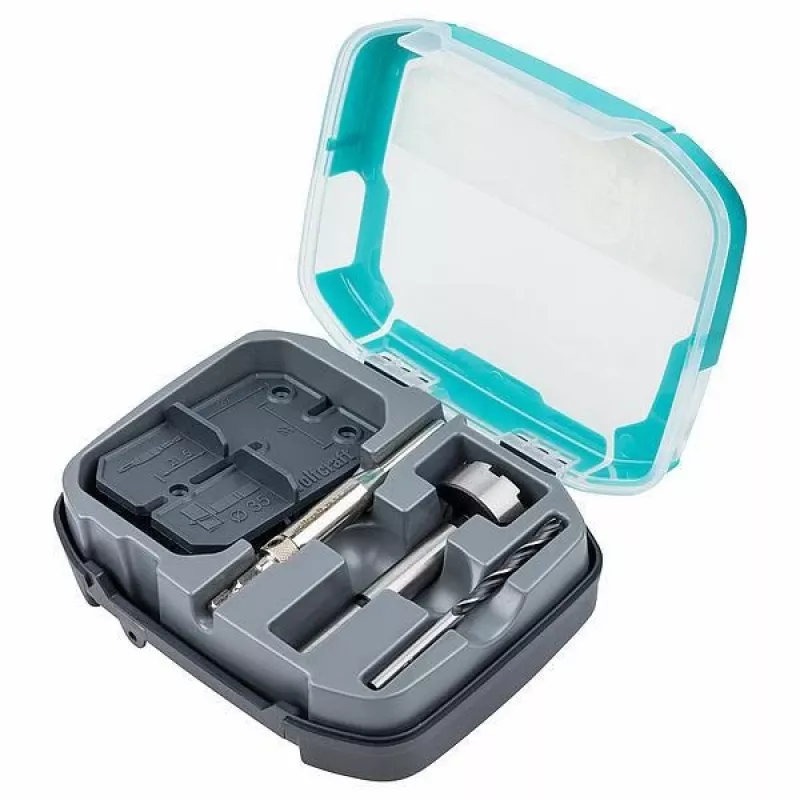

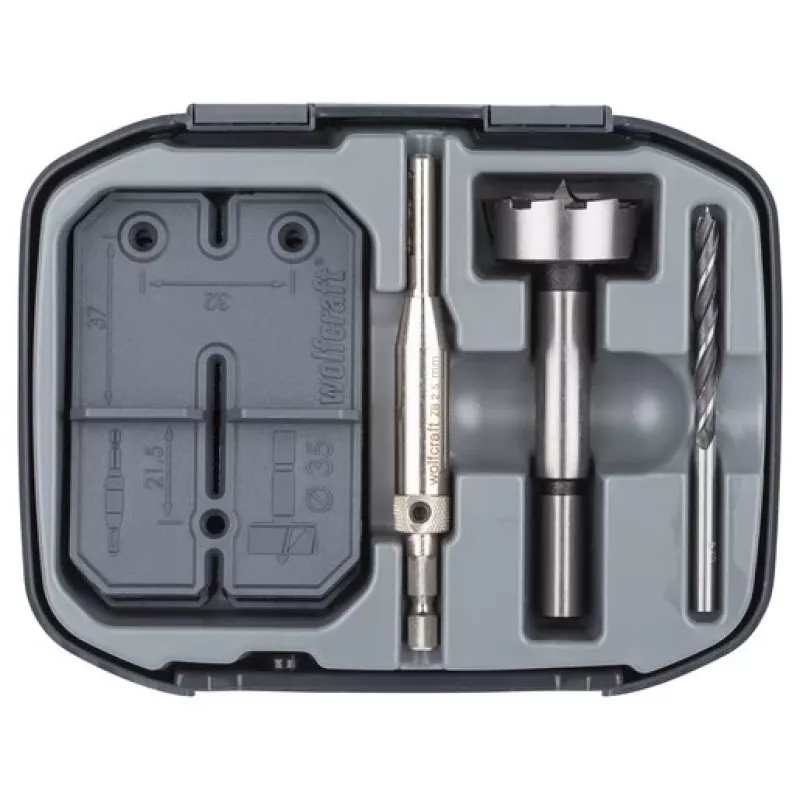

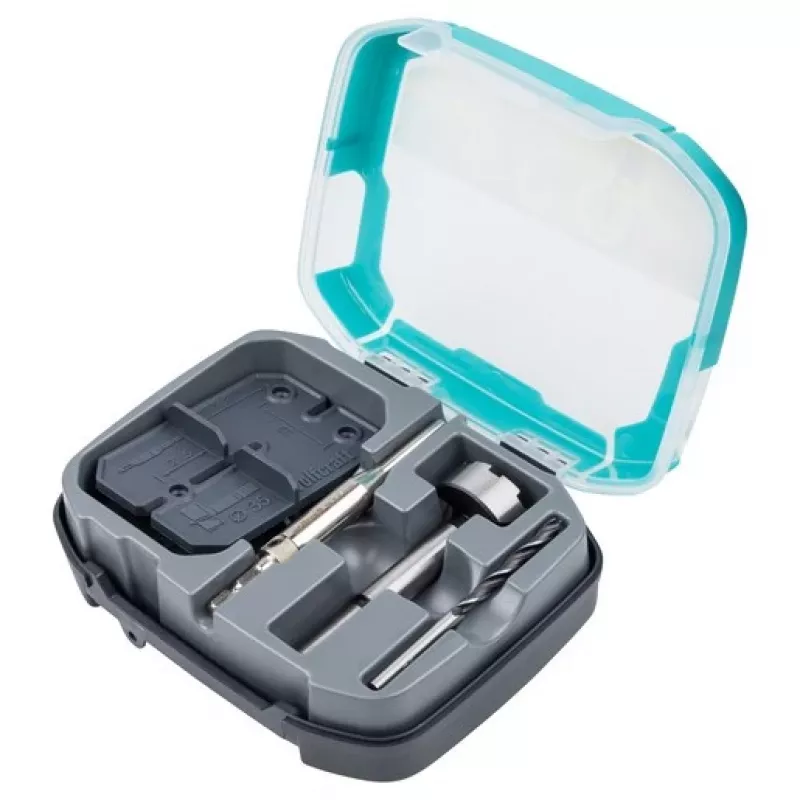

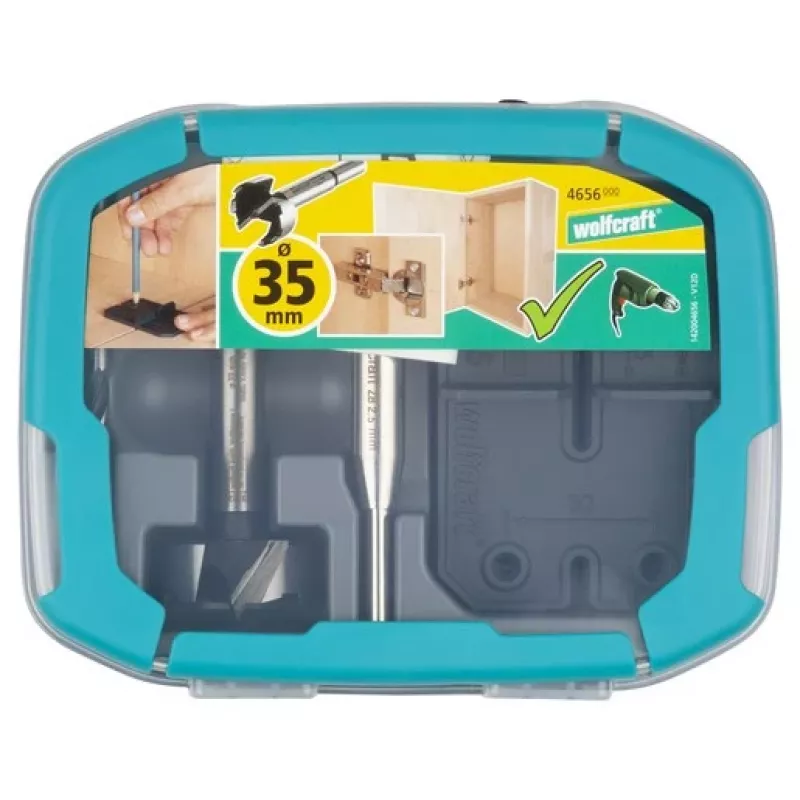

This 5-piece set for installing concealed hinges contains two drilling templates with integrated stop, a Ø 35 x 90 mm Forstner bit, a Ø 2.5 mm centring bit and a Ø 5 x 86 mm wood twist bit. The set lets you determine and mark hinge positions, centre and pilot-drill screw holes, and bore the hinge cup hole to the correct size so hinges can be fitted accurately. All parts store neatly in a two-component case for safe transport and storage.

Advantages

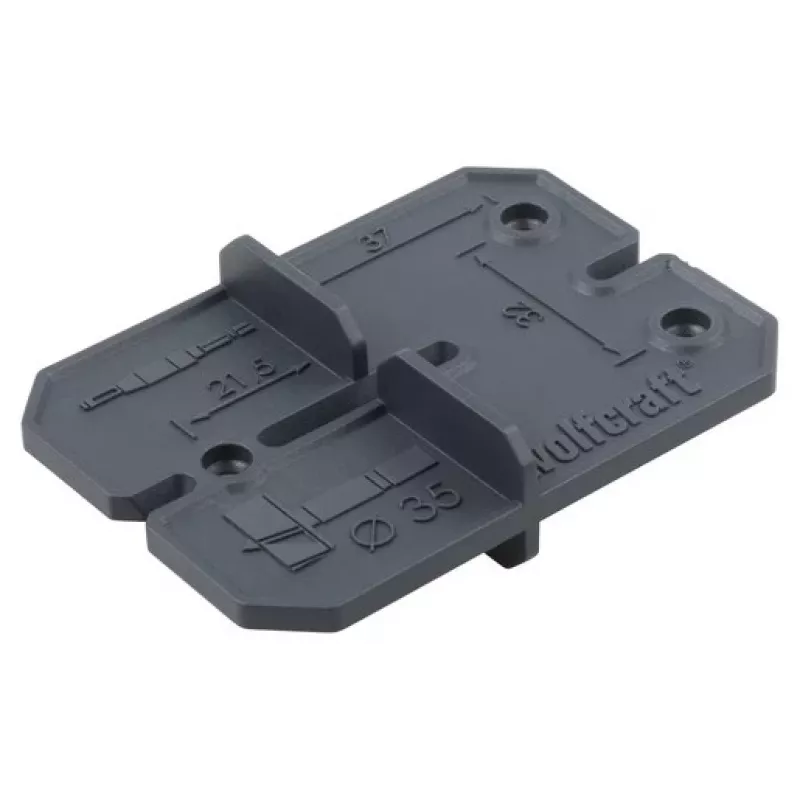

The two drilling templates clamp between door and carcass to ensure parallel alignment and include markings to set the correct distance from the outer edge for Ø 35 mm concealed hinges. The Ø 2.5 mm centring bit ensures accurate positioning before using the Forstner bit to create a clean, correctly sized cup hole. The Ø 5 mm wood twist bit produces pilot holes for splinter-free screw insertion. The included case protects components and keeps them organised.

Suitable for

• Installing Ø 35 mm concealed hinges in wooden doors and cabinet fronts
• Furniture making and repair where precise hinge positioning is required
• Workshop and on-site carpentry tasks

Key specifications

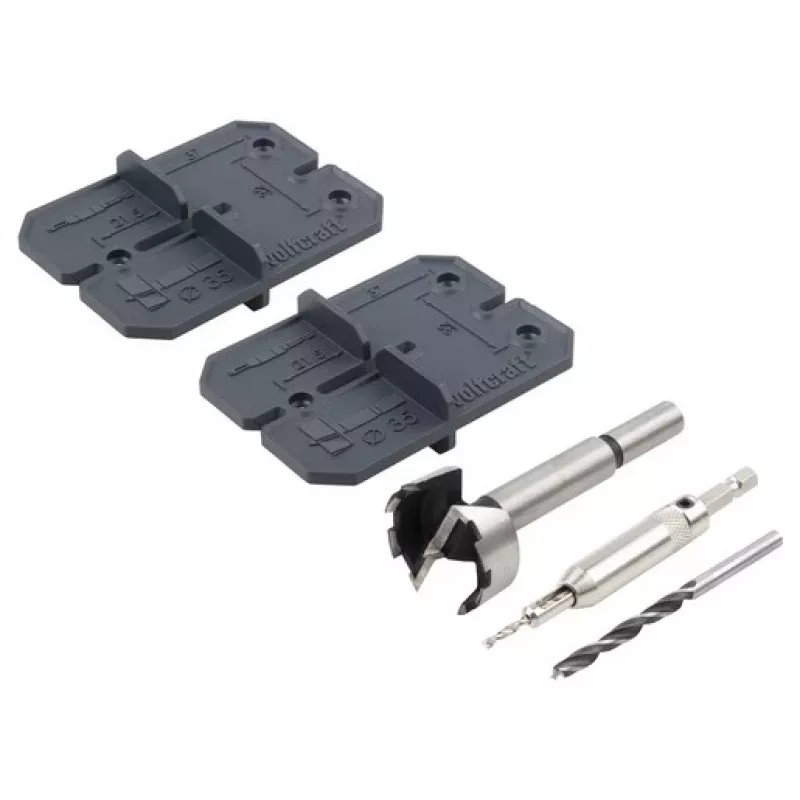

• Contents: 2 drilling templates with stop, Ø 35 x 90 mm Forstner bit, Ø 2.5 mm centring bit, Ø 5 x 86 mm wood twist bit
• Suitable material: wood
• Brand: Wolfcraft
• MPN: WF4656000
• EAN: 4006885465602

How to use

Clamp the drilling templates between the door and the cabinet carcass to align both parts parallel and mark the hinge positions using the template designations. Use the Ø 2.5 mm centring bit to make centre pilot marks. Bore the hinge cup with the Ø 35 mm Forstner bit to the required depth, then drill Ø 5 mm pilot holes for the hinge screws. Fit the hinge and secure it with screws, checking alignment and function before final tightening.

Recommendations

For clean results, use a drill press or guide where possible and clamp workpieces securely. Select drilling speeds appropriate for the wood species and clear chips frequently when using the Forstner bit. Store bits in the supplied case to protect cutting edges.
