Hikvision iDS-7204HTHI-M1/XT/4A+4/1ALM 4-Channel 5MP AcuSense Surveillance Kit with 4 Cameras

The Hikvision iDS-7204HTHI-M1/XT/4A+4/1ALM is a comprehensive 4-channel 5MP AcuSense surveillance kit designed for professional security applications. This kit includes a high-performance DVR and four 5MP HDTVI bullet cameras, providing exceptional image quality and advanced AI features for reliable monitoring.

Advantages

AcuSense technology enables human and vehicle classification, reducing false alarms and improving security efficiency. The H.265 Pro+ compression saves bandwidth and storage space without compromising video quality. The kit supports up to 10 TB storage capacity, ensuring long-term recording capabilities.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Residential properties
• Small to medium-sized businesses

Key specifications

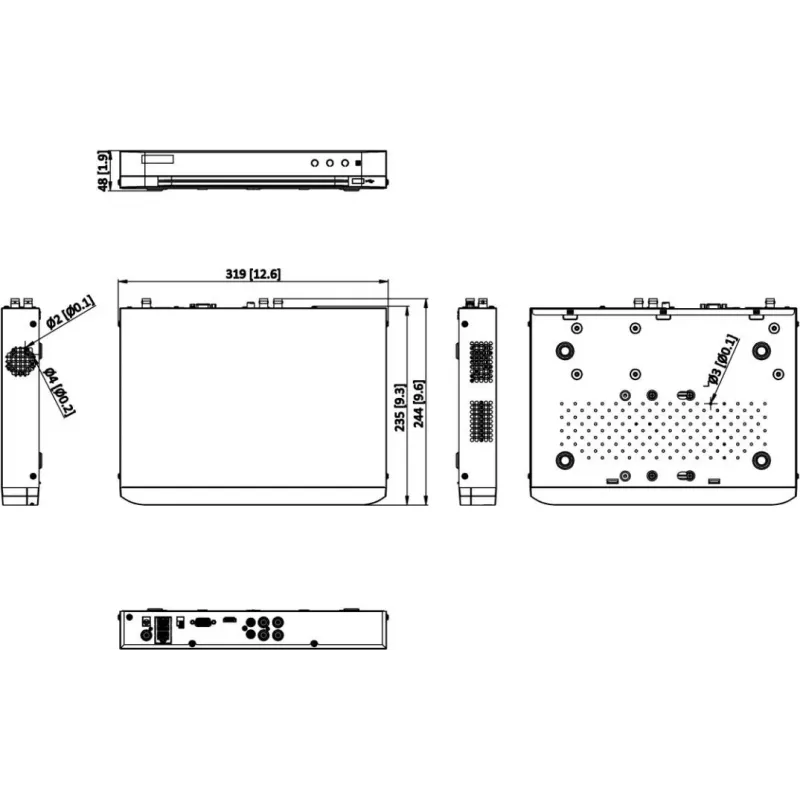

• DVR Model: iDS-7204HTHI-M1/S
• Number of Cameras: 4
• Camera Resolution: 5 Megapixel (2560 x 1944)
• Camera Type: HDTVI Bullet
• Analog Video Input: 4-ch BNC (TVI/AHD/CVI/CVBS)
• IP Video Input: Up to 8-ch (max 6 MP)
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• AI Features: AcuSense (Human/Vehicle Classification, Perimeter Protection)
• Video Output: 1x HDMI, 1x VGA (up to 1080p)
• Audio Input/Output: 1-ch RCA / 1-ch RCA
• Alarm Input/Output: 4-ch / 1-ch
• Storage: 1 SATA interface, up to 10 TB (HDD not included)
• Network Interface: 1x RJ45 10/100M Ethernet
• USB Interface: 2x USB 2.0
• Camera IR Range: Up to 20 meters (EXIR 2.0)
• Camera Weather Rating: IP67
• DVR Power Supply: 12 VDC

Recommendations

For optimal performance, use Hikvision certified hard drives and ensure proper cable connections. The system is easy to set up and can be expanded with additional IP cameras if needed.
