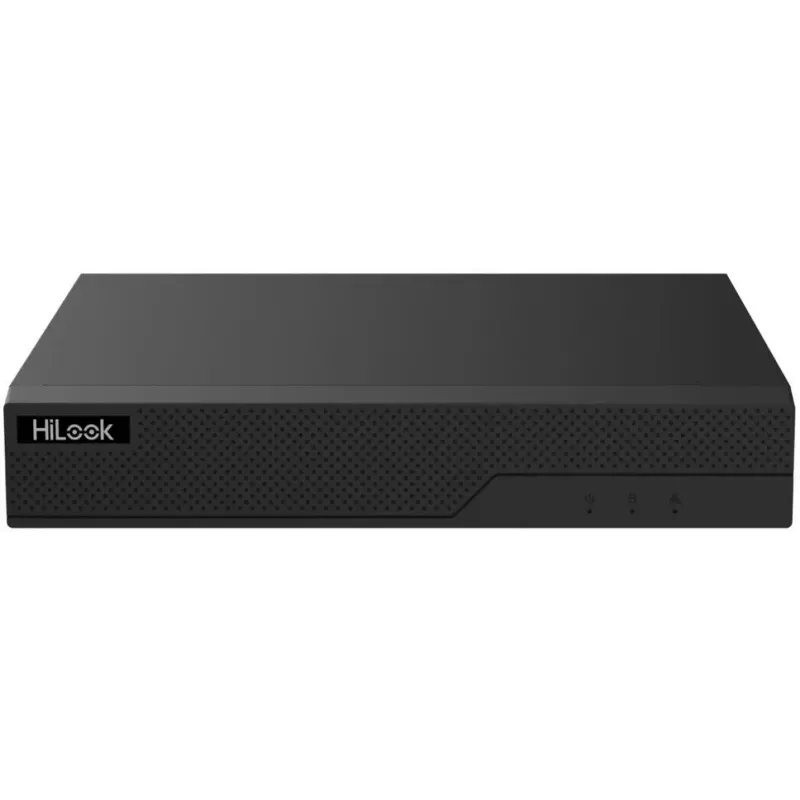

Hikvision HiLook NVR-108MH-C(E) 8-Channel 8MP Network Video Recorder

The Hikvision HiLook NVR-108MH-C(E) is a high-performance 8-channel network video recorder designed for small to medium-sized surveillance systems. Supporting up to 8 IP cameras with a maximum resolution of 8 megapixels, this NVR delivers crisp and detailed video footage. With H.265+ compression technology, it optimizes storage and bandwidth without compromising image quality. The device features a single SATA interface supporting up to 8 TB of storage, ensuring ample space for continuous recording. Its compact design and low power consumption make it an ideal choice for retail stores, offices, and residential applications.

Advantages

• Supports up to 8 IP channels with 8MP resolution for high-definition surveillance.
• H.265+/H.265/H.264+/H.264 compression reduces storage requirements.
• 80 Mbps incoming and outgoing bandwidth ensures smooth data transmission.
• HDMI output up to 4K resolution for clear live viewing and playback.
• 1 SATA port supports up to 8 TB HDD for extended recording.
• Low power consumption (≤10 W without HDD) saves energy.
• Plug-and-play setup with HiLook cameras for easy installation.

Suitable for

• Small to medium-sized businesses (retail, offices, warehouses)
• Residential surveillance systems
• Remote monitoring applications
• Upgrading analog systems to IP-based security

Key specifications

• Video Input: 8 IP channels
• Max Recording Resolution: 8 MP
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming/Outgoing Bandwidth: 80 Mbps
• HDMI Output: Up to 3840 × 2160 @ 30 Hz
• VGA Output: Up to 1920 × 1080 @ 60 Hz
• Synchronous Playback: 8 channels
• Decoding Capability: 1-ch @ 8 MP (30 fps) / 5-ch @ 1080p (30 fps)
• HDD Interface: 1 SATA, up to 8 TB
• Network Interface: 1 RJ-45 10/100 Mbps
• USB: 2 × USB 2.0
• Audio: 1-ch RCA input, 1-ch RCA output
• Power Supply: 12 VDC
• Power Consumption: ≤ 10 W (without HDD)
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity: 10% to 90%

Recommendations

For optimal performance, pair this NVR with HiLook IP cameras and use high-quality CAT5e or CAT6 Ethernet cables. Ensure the HDD is rated for 24/7 surveillance use. The device supports remote access via the HiLook app or web browser for convenient monitoring.
