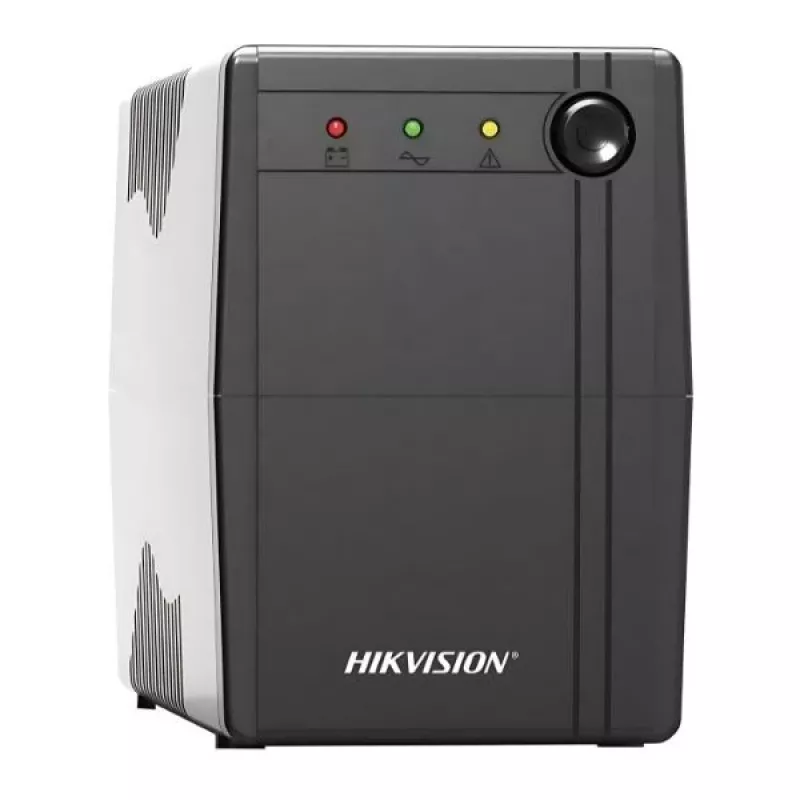

Hikvision DS-UPS1000 Emergency Power Supply 1000VA 600W

The Hikvision DS-UPS1000 is a reliable line-interactive UPS designed to provide emergency backup power for security systems, network equipment, and other critical devices. With a capacity of 1000 VA / 600 W, it ensures continuous operation during power outages and protects against surges and brownouts.

Advantages

This UPS offers automatic voltage regulation, simulated sine wave output, and fast transfer time (2-6 ms typical). It features two universal outlets, LED status indicators, and audible alarms for battery mode, low battery, overload, and fault conditions. The sealed lead-acid batteries provide long service life and recharge to 90% capacity in 6-8 hours.

Suitable for

• Security cameras and DVRs/NVRs
• Network switches, routers, and access points
• Small office servers and workstations
• Point-of-sale systems and other sensitive electronics

Key specifications

• Capacity: 1000 VA / 600 W
• Input Voltage: 220-240 VAC
• Output Voltage (AC Mode): 220-240 VAC
• Output Voltage (Battery Mode): 220-240 VAC ± 10%
• Output Frequency (Battery Mode): 50/60 Hz ± 1 Hz
• Waveform: Simulated Sine Wave
• Transfer Time: Typical 2-6 ms, Max 10 ms
• Battery: 2 x 12V/9Ah Sealed Lead-Acid
• Recharge Time: 6-8 hours to 90%
• Outlets: 2 x Universal Sockets
• Protection: Overload, Discharge, Overcharge, Short Circuit
• Indicators: LED (AC Mode, Battery Mode, Fault)
• Alarms: Battery Mode, Low Battery, Overload, Fault
• Operating Temperature: 0°C to 40°C
• Humidity: 0% to 90% RH (Non-condensing)
• Noise Level: < 40 dB

Recommendations

For optimal performance, place the UPS in a well-ventilated area away from direct sunlight and moisture. Regularly test the battery and replace every 3-5 years depending on usage. This UPS is ideal for Hikvision surveillance systems and other critical applications requiring reliable backup power.
