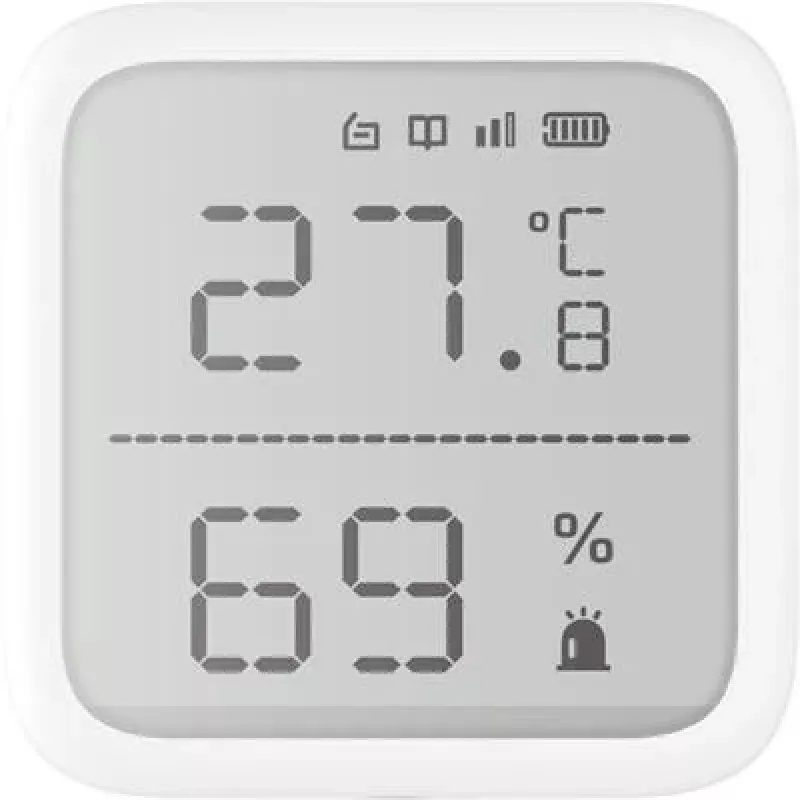

Hikvision DS-PDTPH-E-WE AX PRO Temperature and Humidity Sensor

The Hikvision DS-PDTPH-E-WE is a wireless temperature and humidity sensor designed for the AX PRO alarm system. It provides accurate environmental monitoring with a built-in LCD display, ensuring reliable detection of temperature and humidity changes in residential and commercial settings.

Advantages

High accuracy of ±0.5°C for temperature and ±3% RH for humidity, long battery life of up to 2 years, and secure wireless communication with 128-bit AES encryption and frequency hopping. The sensor features front and rear tamper protection for enhanced security.

Suitable for

• Home automation and security systems
• Warehouses, server rooms, and storage facilities
• Greenhouses and climate-controlled environments
• Integration with Hikvision AX PRO alarm systems

Key specifications

• Detection Type: Temperature & Humidity
• Temperature Range: -20°C to +60°C (-4°F to +140°F)
• Temperature Accuracy: ±0.5°C (±0.9°F)
• Humidity Range: 0% to 99% RH
• Humidity Accuracy: ±3% RH
• Wireless Technology: Tri-X Wireless at 868 MHz
• Wireless Range: Up to 1200m (open area)
• Power Supply: 1x CR2450 Battery
• Battery Life: Up to 2 years
• Display: LCD Screen
• Operating Temperature: -10°C to +60°C (14°F to +140°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Compatibility: Hikvision AX PRO Alarm Systems
• Installation: Wall Mounted
• Security: 128-bit AES Encryption, Frequency Hopping
• Tamper Protection: Front and Rear Tamper
• Status Indicator: LED Indicator

Recommendations

For optimal performance, install the sensor in a location away from direct sunlight, heat sources, and drafts. Ensure the AX PRO control panel is within the specified wireless range. Regularly check battery status via the LCD display or system interface.
