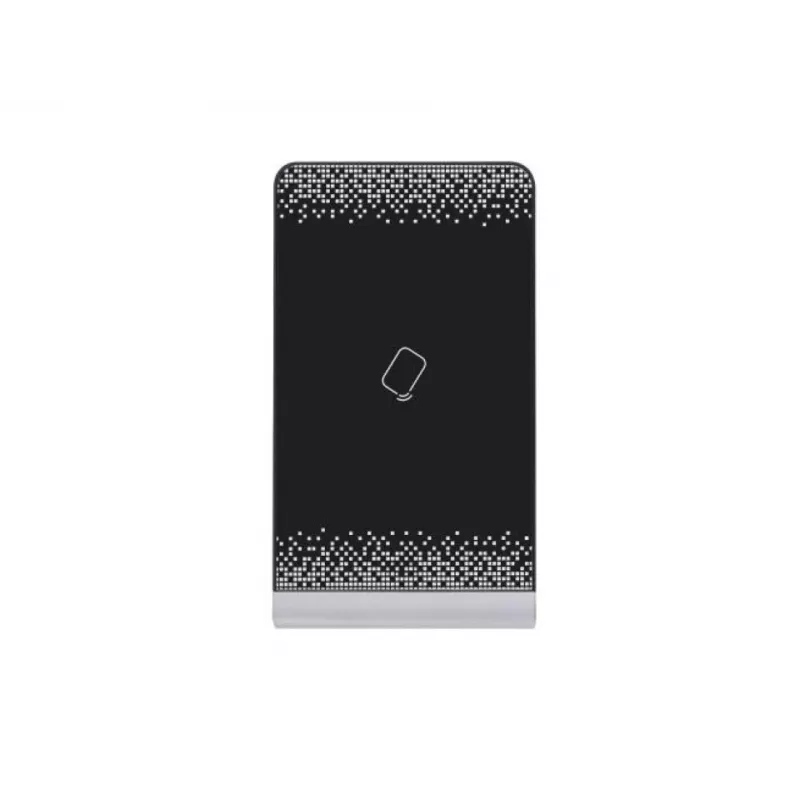

Hikvision DS-K1F100-D8E Card Registration Station – USB Dual Frequency Card Reader for Mifare/EM/CPU, Black

The Hikvision DS-K1F100-D8E Card Registration Station is a high-performance USB reader engineered for secure and efficient card enrollment. With dual-frequency support for 13.56 MHz and 125 kHz, it reads Mifare, EM, and CPU card formats, making it a versatile tool for access control systems that require reliable credential management.

Overview

Designed for fast, accurate card registration, the DS-K1F100-D8E simplifies the process of issuing and managing access cards. Whether you are setting up a new system or expanding an existing one, this registration station ensures that each card is properly encoded and ready for use. Its compact, desktop-friendly form factor integrates easily into any workstation via a standard USB 2.0 connection.

What stands out

• Dual-frequency reading: Compatible with 13.56 MHz (Mifare, CPU) and 125 kHz (EM) cards
• Plug-and-play USB 2.0 interface – no additional power adapter required, powered directly via USB
• Ultra-low power consumption (≤ 1 W) for continuous operation
• Built-in LED indicators and buzzer provide immediate visual and audible feedback
• Supports Windows XP/7/8/10 and Linux operating systems, with SDK access for custom integrations

Technical details

• Brand: Hikvision
• Model: DS-K1F100-D8E
• Card Reading Frequency: 13.56 MHz (Mifare, CPU) & 125 kHz (EM)
• Supported Card Types: Mifare Card, EM Card, CPU Card
• Interface: USB 2.0
• Power Supply: 5V DC (USB Powered)
• Power Consumption: ≤ 1 W
• Indicator Type: LED (Power, Status)
• Built-in Buzzer: Yes
• Operating System Support: Windows XP/7/8/10, Linux
• Material: ABS
• Operating Temperature: -20°C to +65°C (-4°F to +149°F)
• Operating Humidity: 10% to 90% (Non-condensing)
• Maximum Read Range: 0-50 mm (depending on card type and environment)
• Application: Card Enrollment, Card Issuing, Card Management
• Certifications: CE, FCC, RoHS
• Color: Black

Our verdict

The DS-K1F100-D8E is a dependable, cost-effective solution for any organisation needing to issue or update access cards. Its dual-frequency compatibility, broad OS support, and SDK availability make it a future-proof investment for access control setups of all sizes.
