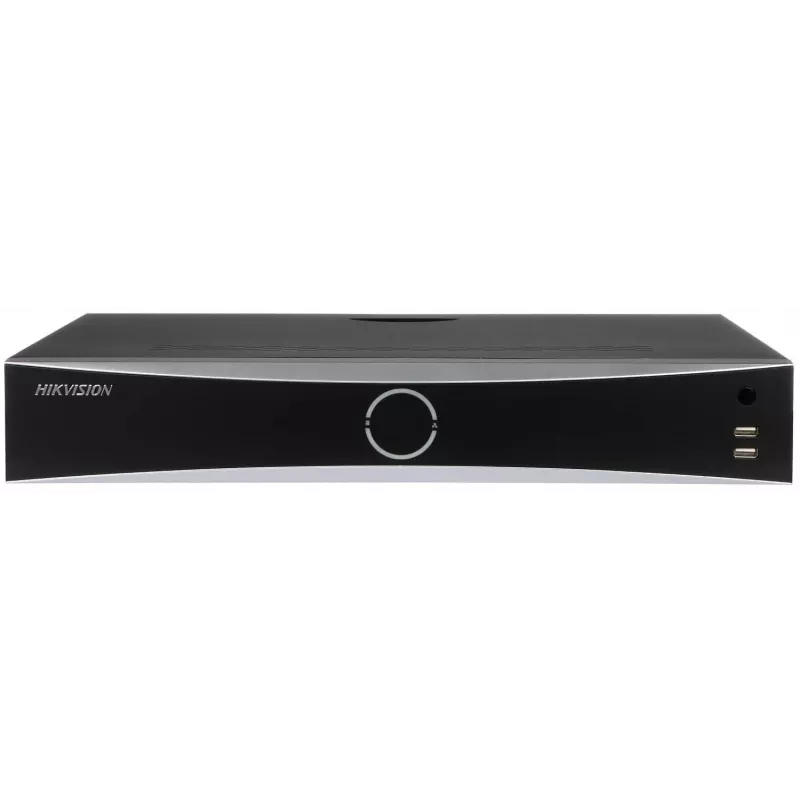

Hikvision DS-7716NXI-K4(D)/ALARM16+9/PL 16-Channel IP Recorder with AcuSense

The Hikvision DS-7716NXI-K4(D)/ALARM16+9/PL is a high-performance 16-channel IP video recorder designed for professional security systems. Featuring AcuSense technology, it delivers intelligent human and vehicle analysis, reducing false alarms and enhancing security efficiency. With support for up to 12 MP resolution recording and 4K HDMI output, this NVR ensures crystal-clear video surveillance.

Advantages

AcuSense AI technology enables accurate detection of humans and vehicles, minimizing nuisance alerts. The recorder supports H.265+ compression to save storage space without compromising image quality. With 16 alarm inputs and 9 alarm outputs, it integrates seamlessly with external sensors and alarms. Dual Gigabit Ethernet ports provide network redundancy and load balancing.

Suitable for

• Medium to large-scale surveillance installations
• Retail stores, warehouses, and office buildings
• Perimeter security with alarm integration
• Applications requiring intelligent video analytics

Key specifications

• 16 IP camera channels with up to 160 Mbps incoming bandwidth
• Max recording resolution: 12 MP
• Video compression: H.265+/H.265/H.264+/H.264
• HDMI output up to 4K (3840×2160), VGA up to 1920×1080
• 4 SATA interfaces, each supporting up to 10 TB HDD
• 2x RJ-45 10/100/1000 Mbps Ethernet ports
• 1 USB 2.0 (front), 1 USB 3.0 (rear)
• 16 alarm inputs, 9 alarm outputs
• 1-ch RCA audio input, 1-ch RCA audio output
• AcuSense: 4-ch human/vehicle analysis or 1-ch facial recognition
• Synchronous playback of up to 16 channels
• Power supply: 100 to 240 VAC

Recommendations

For optimal performance, pair with Hikvision AcuSense cameras and use high-quality CAT6 cabling. Ensure adequate ventilation and use enterprise-grade hard drives for 24/7 recording.
