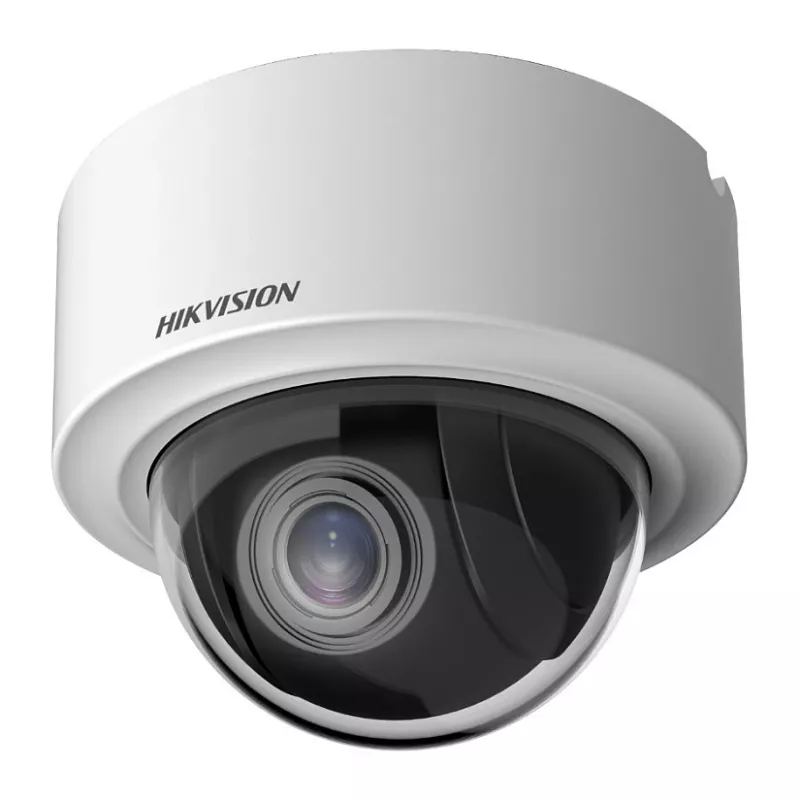

Hikvision DS-2DE3404W-DE(T5) 4MP PTZ Dome Network Camera with AcuSense, 4x Optical Zoom, IR up to 50m, IP66, IK10

The Hikvision DS-2DE3404W-DE(T5) is a high-performance 4MP PTZ dome network camera designed for indoor and outdoor surveillance. Featuring AcuSense technology for human and vehicle classification, it delivers intelligent alerts and reduces false alarms. With 4x optical zoom, 120 dB WDR, and IR night vision up to 50 meters, this camera ensures clear imaging in challenging lighting conditions. Its robust IP66 and IK10 ratings guarantee reliable operation in harsh environments.

Advantages

AcuSense smart detection minimizes false alarms by distinguishing humans and vehicles from other motion. The 4x optical zoom (2.8–12 mm) allows flexible monitoring of wide areas or specific details. 120 dB true WDR provides clear images in high-contrast scenes. The camera supports H.265+ compression to save bandwidth and storage. With IP66 weatherproof and IK10 vandal-resistant housing, it is built for demanding outdoor installations.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Parking lots, warehouses, and retail stores
• Smart city and traffic monitoring
• Residential outdoor security

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 2560 × 1440 (4 MP)
• Optical Zoom: 4x (2.8–12 mm)
• Digital Zoom: 16x
• IR Range: Up to 50 m
• Pan Range: 0° to 330°
• Tilt Range: 0° to 90°
• Video Compression: H.265+/H.265/H.264+/H.264
• WDR: 120 dB
• Smart Features: AcuSense (Human/Vehicle Classification)
• Local Storage: MicroSD/SDHC/SDXC up to 256 GB
• Network Interface: 1x RJ45 10M/100M Ethernet
• Audio I/O: 1/1
• Alarm I/O: 1/1
• Power Input: 12 VDC, PoE (802.3af)
• Power Consumption: Max. 12 W
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Operating Temperature: -30 °C to 65 °C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Pair with Hikvision NVRs for seamless integration and advanced analytics. Ensure the mounting surface can support the camera's weight and provide a stable network connection.
