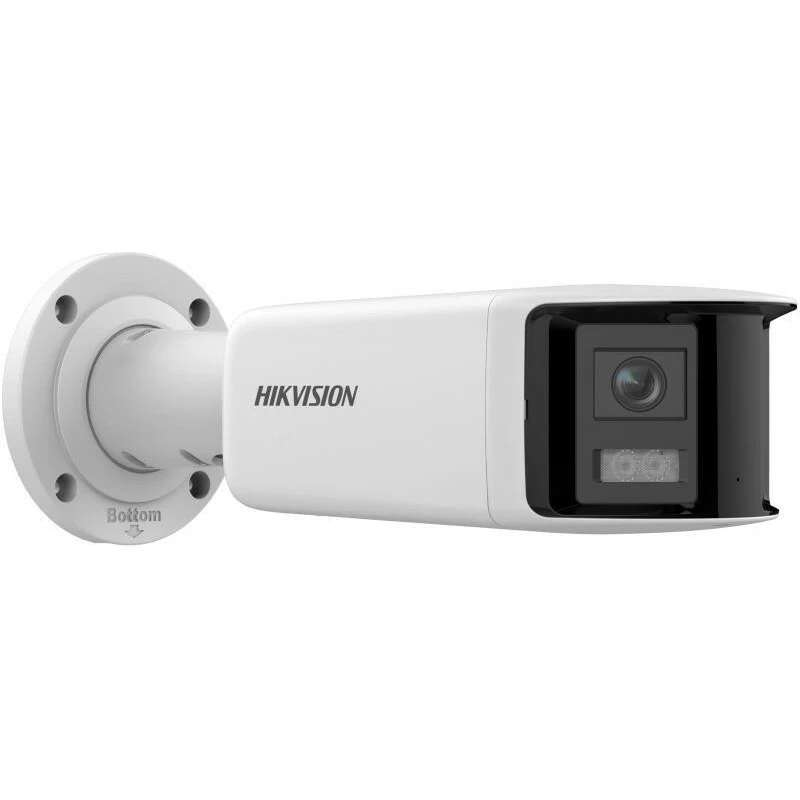

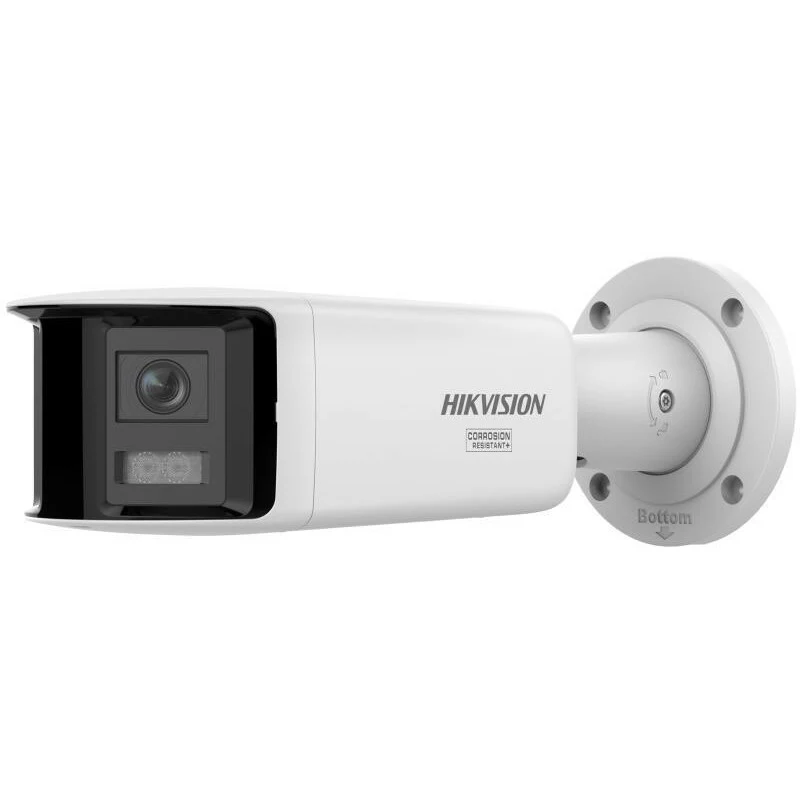

Hikvision DS-2CD2T127G3P-LIS2UY/SL 12MP 180° Panoramic Bullet Network Camera

Monitoring wide outdoor areas often requires multiple cameras, creating blind spots and complex installations. The Hikvision DS-2CD2T127G3P-LIS2UY/SL solves this with a single 12MP bullet camera that delivers a full 180° panoramic view, ensuring complete coverage without gaps. Its dual-lens design stitches two images seamlessly, providing high-resolution surveillance for parking lots, building perimeters, and large open spaces.

Who is it for

This camera is ideal for businesses and institutions needing comprehensive perimeter security: logistics centers, retail parks, school campuses, and industrial facilities. It suits security integrators and IT administrators who want to reduce camera count while maintaining detailed oversight of expansive zones.

Main features

• 12MP resolution with 180° panoramic field of view for edge-to-edge coverage
• Dual-lens design with image stitching for a seamless ultra-wide image
• EasyIP 4.0 Plus technology for enhanced imaging and efficient compression
• Built-in IR illumination for clear night vision up to 30 meters
• IP67 weatherproof and IK10 vandal-resistant housing for outdoor durability
• Power over Ethernet (PoE) support for simplified single-cable installation
• H.265+ compression to reduce bandwidth and storage requirements
• Smart event detection: intrusion, line crossing, and region entrance/exiting

Specifications

• Image sensor: 2 × 1/2.7" progressive scan CMOS
• Effective resolution: 12 megapixels (4000 × 3000)
• Lens: dual fixed 2.8mm lenses, horizontal FOV 180°
• Minimum illumination: Color: 0.005 lux @ (F1.6, AGC ON), B/W: 0 lux with IR
• IR range: up to 30 m
• Video compression: H.265+/H.265/H.264+/H.264/MJPEG
• Frame rate: 20 fps @ 12MP, 25/30 fps @ 8MP and lower
• WDR: 120 dB true WDR
• Audio: built-in microphone, audio I/O via terminal block
• Alarm I/O: 1 input, 1 output
• Network: 1 RJ45 10M/100M/1000M Ethernet port
• Storage: microSD/SDHC/SDXC slot, up to 256 GB
• Power: 12 VDC ± 25%, PoE (802.3at, class 4)
• Power consumption: max 14 W
• Operating conditions: -30°C to 60°C, humidity 95% or less (non-condensing)
• Protection: IP67, IK10
• Dimensions: 353.6 × 101.5 × 98.5 mm (13.9" × 4.0" × 3.9")
• Weight: approx. 1.6 kg (3.5 lb)

Tips

Mount the camera at a height of 3–5 meters for optimal panoramic coverage. Use a PoE+ switch to power the camera and avoid separate power cabling. For large areas, position the camera at a corner to maximize the 180° view. Regularly clean the lens cover to maintain image clarity, especially in dusty environments.
