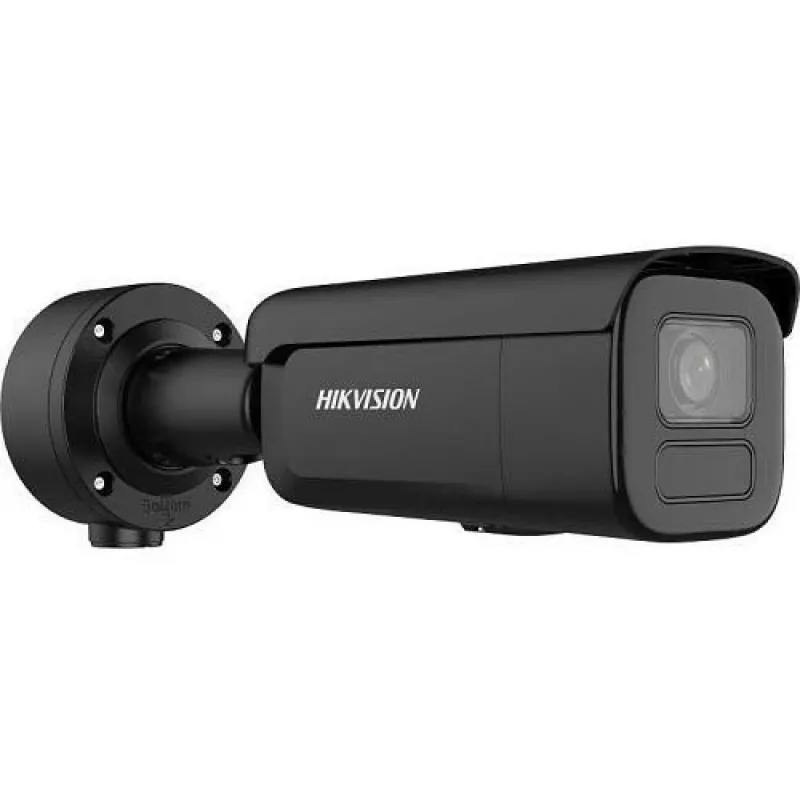

Hikvision DS-2CD2686G2HT-IZS(2.8-12)/eF/BLK PL 8MP IR Network Bullet Camera

The Hikvision DS-2CD2686G2HT-IZS(2.8-12)/eF/BLK PL is a high-performance 8MP IR network bullet camera designed for demanding security applications. Featuring AcuSense technology for accurate human and vehicle target classification, this camera delivers exceptional image quality with 3840x2160 resolution at 25fps. Its motorized varifocal lens (2.8-12mm) provides flexible viewing angles from 108° to 30°, while the built-in IR illuminator ensures clear monitoring up to 60m in complete darkness. With IP67 and IK10 ratings, it withstands harsh outdoor conditions. The camera supports H.265+ compression to save bandwidth and storage, and includes a microSD slot for local recording up to 256GB.

Advantages

AcuSense technology reduces false alarms by distinguishing humans and vehicles from other moving objects. The motorized zoom lens allows remote adjustment of field of view, eliminating the need for manual repositioning. With 120dB true WDR, the camera handles challenging backlight scenes, ensuring clear images even in high-contrast environments. The robust metal housing and IP67/IK10 protection guarantee reliable operation in extreme weather and vandalism-prone areas.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Parking lots, warehouses, and logistics centers
• Retail stores and shopping malls
• Critical infrastructure protection
• Outdoor areas requiring high-resolution monitoring

Key specifications

• 8MP (3840x2160) resolution at 25fps
• 1/2.8" Progressive Scan CMOS sensor
• Motorized varifocal lens 2.8-12mm (F1.6)
• IR range up to 60m
• H.265+/H.265/H.264+/H.264 video compression
• 120dB Wide Dynamic Range (WDR)
• IP67 and IK10 protection
• AcuSense: human and vehicle classification
• 1-ch audio input, 1-ch audio output
• 1-ch alarm input, 1-ch alarm output
• Built-in microSD slot up to 256GB
• Power: 12VDC or PoE (802.3af)
• Operating temperature: -30°C to 60°C
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted securely on a solid surface using the included bracket. For outdoor installations, verify that all cable connections are properly sealed to maintain IP67 integrity. The camera is compatible with Hikvision NVRs and third-party systems supporting ONVIF Profile S/G/T.
