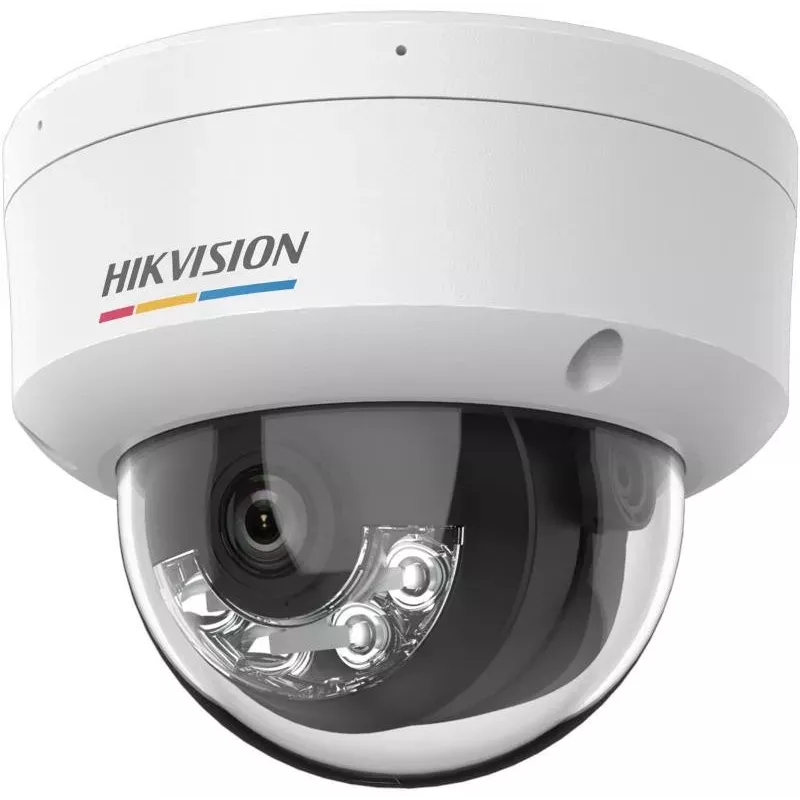

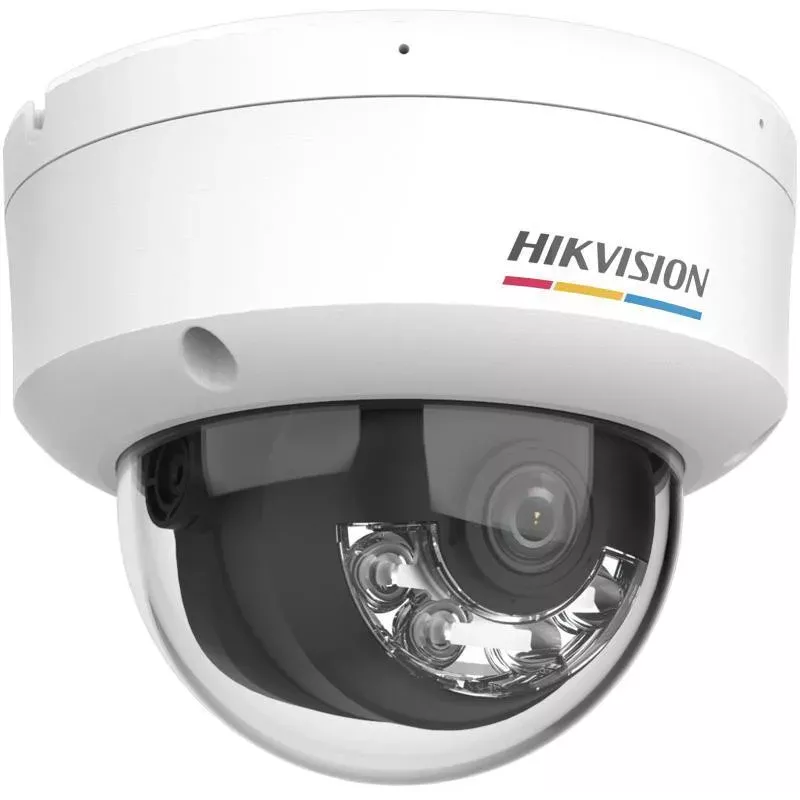

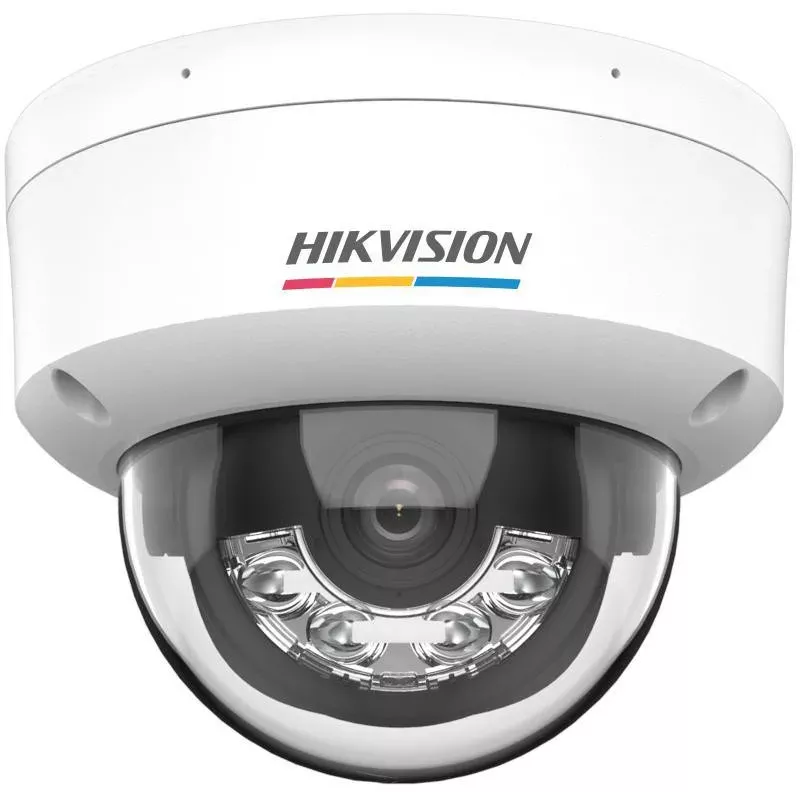

Hikvision DS-2CD1147G3-LIU(2.8mm) 4MP IP Camera with Built-in Microphone, 2.8mm Fixed Lens, IR & White Light, IP67, IK10

The Hikvision DS-2CD1147G3-LIU(2.8mm) is a high-performance 4MP IP camera designed for reliable surveillance in demanding environments. Featuring a 1/3" Progressive Scan CMOS sensor, it delivers crisp 2560×1440 resolution at up to 30 fps. Equipped with a 2.8mm fixed lens, it offers a wide 98° horizontal field of view, making it ideal for monitoring entrances, corridors, and open areas. The camera integrates both IR LEDs and white light illumination, each with a range of up to 30 meters, ensuring clear images day and night. With built-in audio via a microphone, H.265+ compression, and smart features like motion detection and tampering alarm, this camera is a versatile choice for indoor and outdoor security.

Advantages

Dual illumination (IR and white light) provides flexibility for various lighting conditions. The IP67 weatherproof and IK10 vandal-resistant housing ensures durability in harsh environments. H.265+ compression reduces bandwidth and storage requirements without sacrificing image quality. Easy installation with PoE (802.3af) support simplifies cabling.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and warehouses
• Office buildings and parking lots
• Residential security

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 2560 × 1440 (4MP)
• Lens: 2.8mm fixed, F1.6
• Field of View: H: 98°, V: 53°, D: 115°
• IR Range: Up to 30m
• White Light Range: Up to 30m
• Video Compression: H.265+/H.265/H.264+/H.264
• Day/Night: IR cut filter
• Min Illumination: Color 0.005 Lux @ F1.6, B/W 0 Lux with IR/white light
• Audio: Built-in microphone
• Network: 1 RJ45 10/100M Ethernet
• Power: 12VDC ±25%, PoE (802.3af)
• Power Consumption: Max 6.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30°C to 60°C
• Smart Features: Motion detection, video tampering alarm, exception

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting surface can support the camera's weight and provide adequate weather protection. Pair with Hikvision NVRs for seamless integration and advanced analytics.
