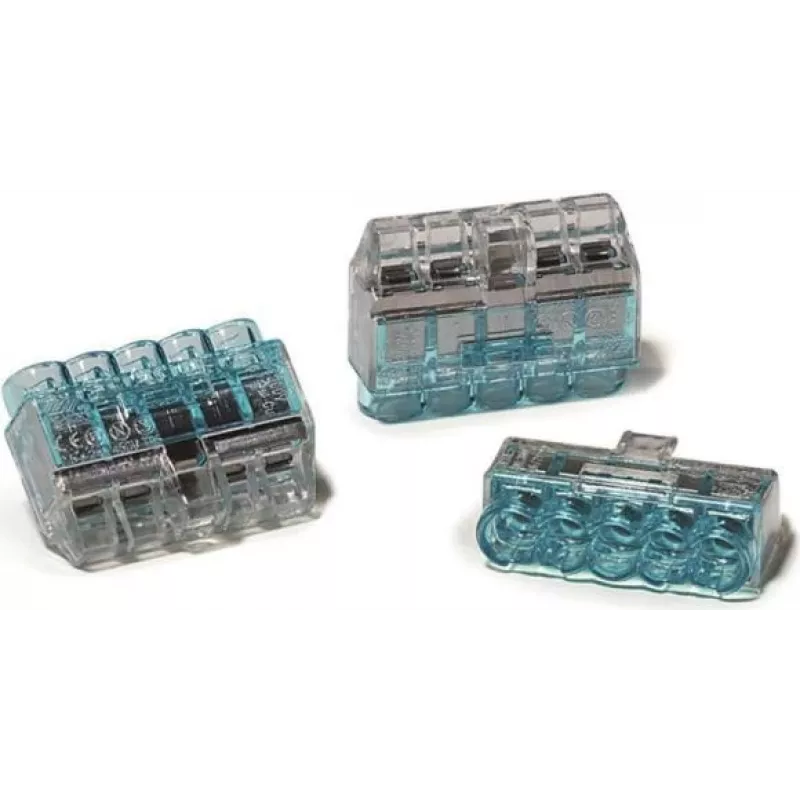

HellermannTyton HCPM-5 PC BU 75 Junction Box 5-Pole 0.5-2.5 mm² Blue Polycarbonate 23.7 mm

The HellermannTyton HCPM-5 PC BU 75 is a high-performance junction box designed for demanding industrial, railway, and public building environments. With 5 poles and a connection range of 0.5 to 2.5 mm², it provides reliable cable protection and termination. Made from polycarbonate (PC) in blue, this junction box offers exceptional durability and resistance to harsh conditions.

Advantages

This junction box features high UV and chemical resistance, making it suitable for outdoor and harsh indoor applications. It is halogen-free and silicone-free, ensuring safety in enclosed spaces. The self-extinguishing material (UL94 V0) and high crush and impact resistance provide long-lasting performance. With an IP69 rating when used with appropriate fittings, it offers protection against high-pressure water and dust ingress.

Suitable for

• Industrial cable management and protection
• Railway applications (EN 45545-2 HL3 R22, R23)
• Public building installations requiring high safety standards
• Marine and offshore environments (Lloyds Register, DNV GL approved)

Key specifications

• Brand: HellermannTyton
• Model: HCPM-5 PC BU 75
• MPN: 148-90039
• EAN: 4031026530628
• Product Type: Junction Box (Dosenklemme)
• Number of Poles: 5
• Connection Range: 0.5...2.5 mm²
• Material: Polycarbonate (PC)
• Colour: Blue
• Outer Diameter: 23.7 mm
• Nominal Diameter (NW): 17
• Operating Temperature: -40 °C to +120 °C
• Short-term Temperature: Up to +150 °C
• Flammability Rating: UL94 V0
• IP Rating: IP69 (with appropriate fittings)
• UV Resistance: High
• Chemical Resistance: Good (oils, greases, fuels, weak acids, weak alkalis)
• Halogen-free: Yes
• Silicone-free: Yes
• Self-extinguishing: Yes
• Crush Resistance: Very High
• Impact Resistance: Very High
• Flexibility: High
• Standards/Approvals: EN 45545-2 (HL3 R22, R23), UL Listed, Lloyds Register, DNV GL

Recommendations

For optimal performance, use with appropriate HellermannTyton fittings to achieve IP69 protection. Suitable for cable diameters up to 17 mm inner diameter. Ensure proper installation according to manufacturer guidelines.
