HDMI Audio Extractor DeLOCK 4K 60 Hz compact

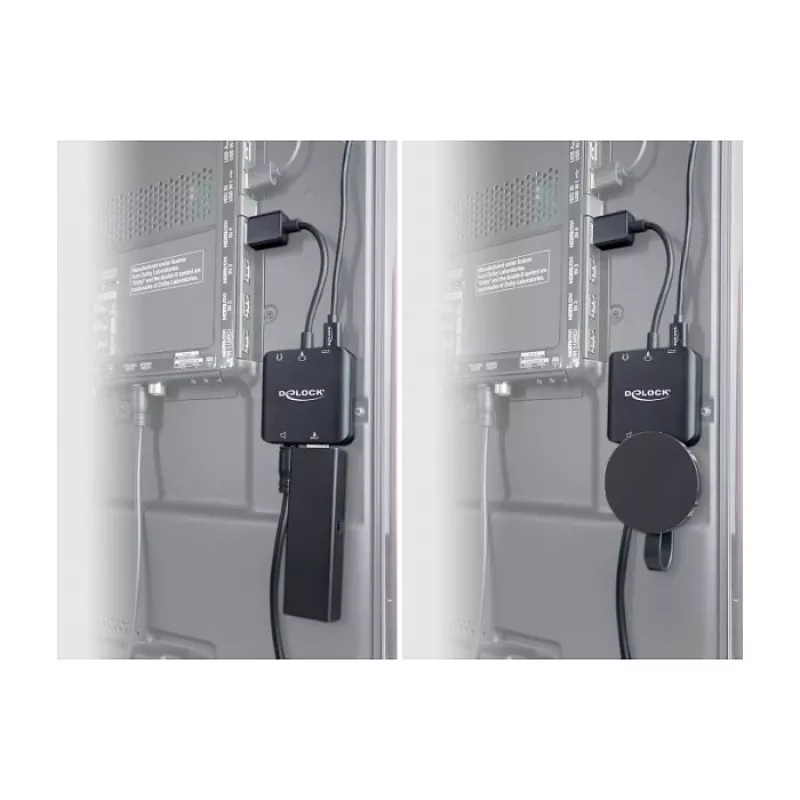

The DeLOCK HDMI Audio Extractor 4K 60 Hz compact extracts the audio signal from an HDMI transmission while the video continues to play on a connected TV or monitor. It supports digital S/PDIF output and analogue stereo output, features a Micro-USB B power input and is supplied with a USB Type-A to Micro-USB Type-B cable. The compact black housing (58 × 58 × 16 mm) and short HDMI cable make it suitable for side or recessed HDMI ports. The device supports sample rates of 32, 44.1, 48, 88.2 and 96 kHz and consumes up to 2 W of power.

Advantages

The adapter provides simultaneous video passthrough and separate audio outputs (digital S/PDIF and analogue stereo), enabling connection to headphones, soundbars or surround receivers. Its compact size and short HDMI lead allow direct connection to tight HDMI ports. Low power consumption and included USB power cable make setup straightforward.

Suitable for

• Extracting audio from streaming sticks, media players or game consoles while preserving video on a TV or monitor
• Connecting HDMI source audio to a stereo amplifier, active speakers or headphones via analogue output
• Feeding digital audio (S/PDIF) to a soundbar or AV receiver

Key specifications

• Resolution support: up to 4K at 60 Hz
• Audio outputs: S/PDIF (digital) and 3.5 mm stereo (analogue)
• Supported sample rates: 32 / 44.1 / 48 / 88.2 / 96 kHz
• Power input: Micro-USB B (USB Type-A to Micro-USB cable included)
• Dimensions: 58 × 58 × 16 mm
• Power consumption: 2 W
• Colour: Black
• Manufacturer: DELOCK, MPN 63333, EAN 4043619633333

How to use

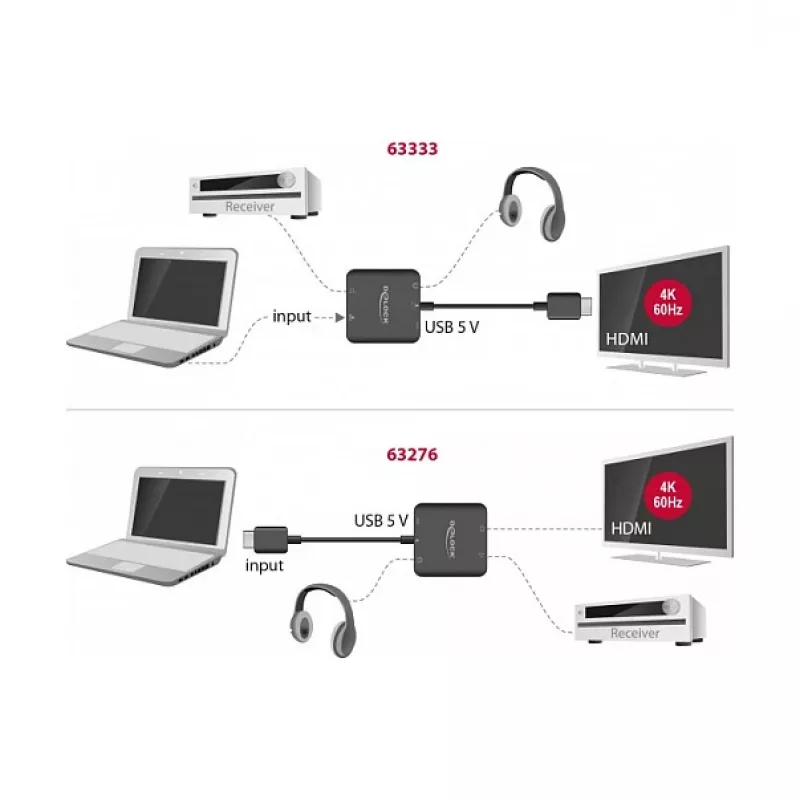

Connect the HDMI output of your source device (for example a streaming stick, media player or console) to the adapter's HDMI input using the built-in short HDMI lead. Connect the adapter's HDMI output to your TV or monitor so video continues to play. For audio, connect a device to the S/PDIF output for digital signal or to the 3.5 mm stereo jack for analogue audio. Plug the included USB Type-A to Micro-USB cable into a USB power source to power the extractor if required.

Recommendations

Place the extractor close to the display to avoid stress on HDMI ports; ensure the power source provides stable 5 V via the Micro-USB connection. If you experience audio format incompatibility with downstream equipment, switch between digital and analogue outputs or verify the source device's audio output settings.
