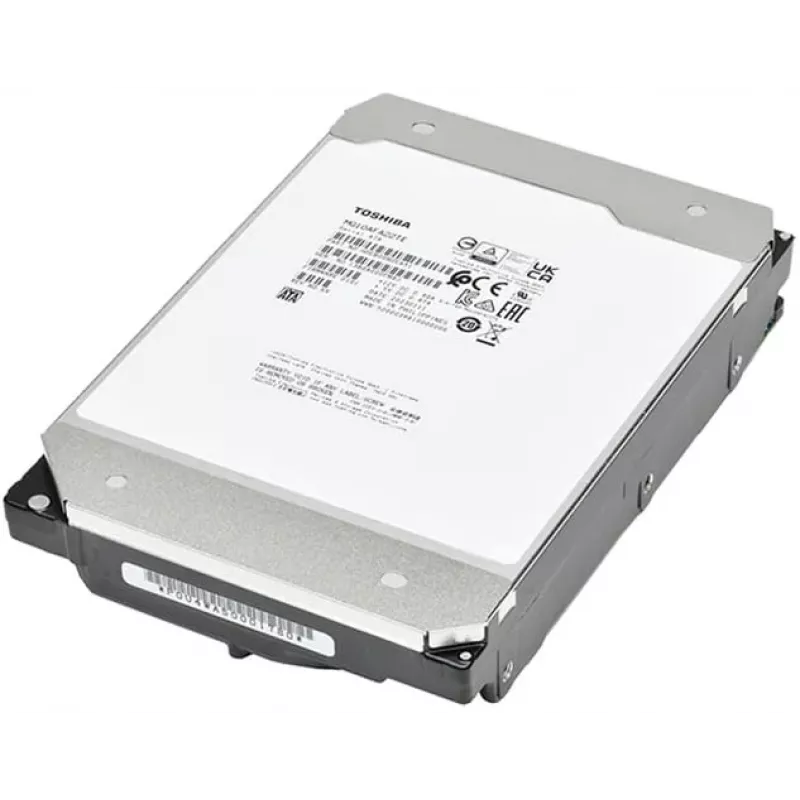

HDD Toshiba 22 TB 3.5 inch Serial ATA III MG10F Series

The Toshiba MG10F Series 22 TB 3.5" Serial ATA III MG10SFA22TE is an enterprise-class internal hard drive that delivers 22 TB of conventional magnetic recording (CMR) capacity in a standard 3.5-inch form factor. The drive operates at 7,200 RPM, includes a 512 MB buffer, and uses a 10-disk helium-sealed design to provide high-density storage suitable for cloud-scale and data-center environments. It supports a 550 TB/year workload rating and integrates into existing drive bays to minimize footprint and operational complexity.

Advantages

The MG10F Series offers a large 22 TB capacity with CMR technology for predictable performance and consistent write behavior. Its 7,200 RPM rotational speed and 512 MB cache support sustained data throughput for data-intensive tasks, while the helium-sealed 10-disk construction reduces power consumption and enables higher areal density. The 550 TB/year workload rating and 2,500,000-hour MTBF indicate suitability for enterprise use and continuous operation.

Suitable for

• Cloud-scale storage arrays and hyperscale data centers
• Enterprise backup and archival systems
• High-density NAS and SAN installations
• Data-intensive applications requiring sustained sequential throughput

Key specifications

• Capacity: 22 TB (22,000 GB)
• Interface: Serial ATA III (SATA III)
• Form factor: 3.5-inch
• Rotational speed: 7,200 RPM
• Buffer: 512 MB
• Workload rating: 550 TB/year
• MTBF: 2,500,000 hours
• Weight: 0.72 kg
• Model / MPN: MG10SFA22TE
• EAN: 8592978544737

How to use

Install the Toshiba MG10F Series drive into a compatible 3.5-inch drive bay that supports SATA III connections. Secure the drive according to your server or enclosure manufacturer instructions, connect the SATA data and power cables, and configure the drive in the system BIOS/RAID controller as needed. Initialize, partition, and format the drive using your operating system or storage management tools before placing it into production.

Recommendations

Use the MG10F Series drive in environments with adequate cooling and vibration control. For enterprise deployments, follow vendor guidelines for RAID configurations, regular firmware updates, and monitoring to maintain reliability and performance. Do not exceed the specified workload rating to ensure longevity.
