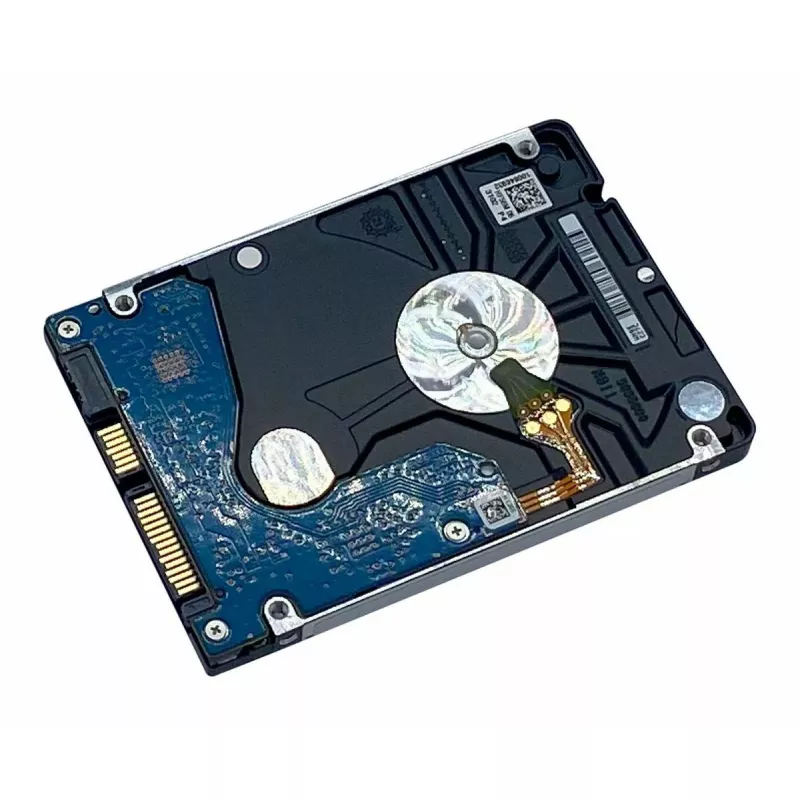

HDD HP 500GB 7MM SATA SED OPAL2 5400RPM L41606-011

The HP HDD 500GB 7mm SATA SED OPAL2 5400RPM L41606-011 is a 2.5-inch form factor hard drive designed for space-constrained systems. It provides 500GB of formatted storage capacity with a 7mm slim profile and connects via a standard SATA interface. The drive spins at 5400 RPM and incorporates Self-Encrypting Drive (SED) support compliant with the OPAL2 specification to protect stored data. Its compact design and modest rotational speed make it suitable for laptops, small form-factor desktops and embedded systems where energy efficiency and physical fit are important.

Advantages

The drive's 7mm thickness allows installation in thin notebooks and ultraportable devices that require slim storage components. OPAL2 SED support enables hardware-based encryption, reducing reliance on software encryption and simplifying data protection management. A 5400RPM spindle speed balances lower power consumption and reduced heat output with everyday data transfer needs. Using a standard SATA interface ensures wide compatibility with existing system architectures and storage controllers.

Suitable for

• Upgrading storage in laptops and ultrabooks with a 7mm drive bay
• Replacement in compact desktop or all-in-one systems
• Systems requiring hardware-based OPAL2 encryption for data security
• Low-power or thermally constrained environments where 5400RPM operation is preferred

Key specifications

• Storage capacity: 500GB
• Form factor: 2.5-inch, 7mm thickness
• Interface: SATA
• Rotational speed: 5400 RPM
• Security: Self-Encrypting Drive (SED) compliant with OPAL2

How to use

Install the drive into a compatible 2.5-inch, 7mm bay using the system manufacturer’s instructions or a suitable mounting adapter if required. Connect power and SATA data cables to the host system. On first boot, initialize the drive in the operating system disk management utility and create partitions or restore data from backups as needed. To enable hardware encryption features, configure OPAL2 SED settings through the system BIOS/UEFI or management software that supports OPAL2 drives; consult platform documentation for interaction between firmware and SED features.

Recommendations

Ensure the host system firmware and management tools support OPAL2 before relying on hardware encryption. For best reliability, use the drive within the manufacturer's specified temperature and vibration limits, maintain current backups, and perform regular health checks using diagnostic utilities compatible with SATA drives.
