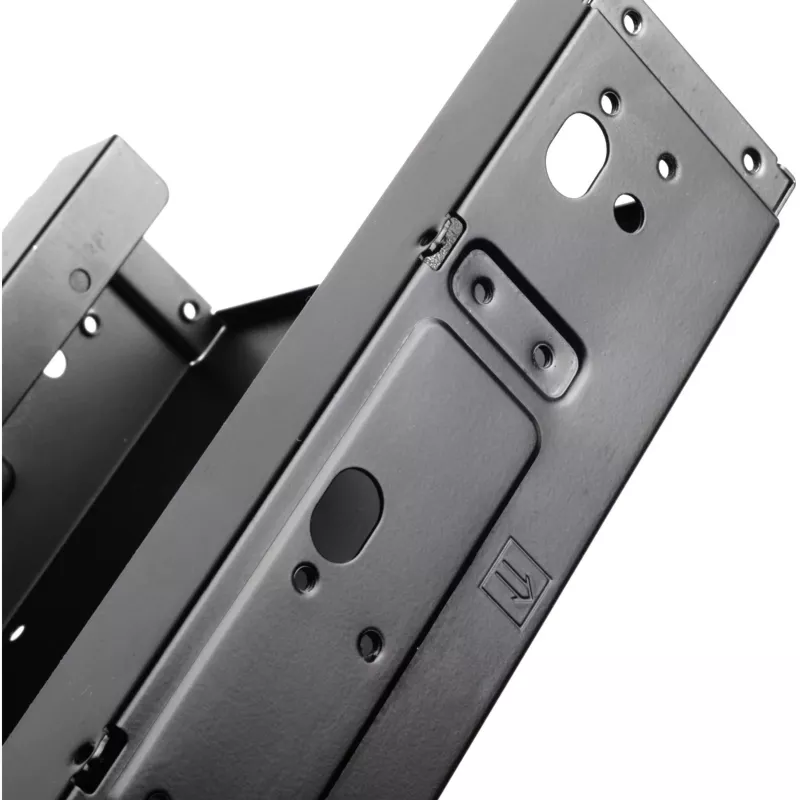

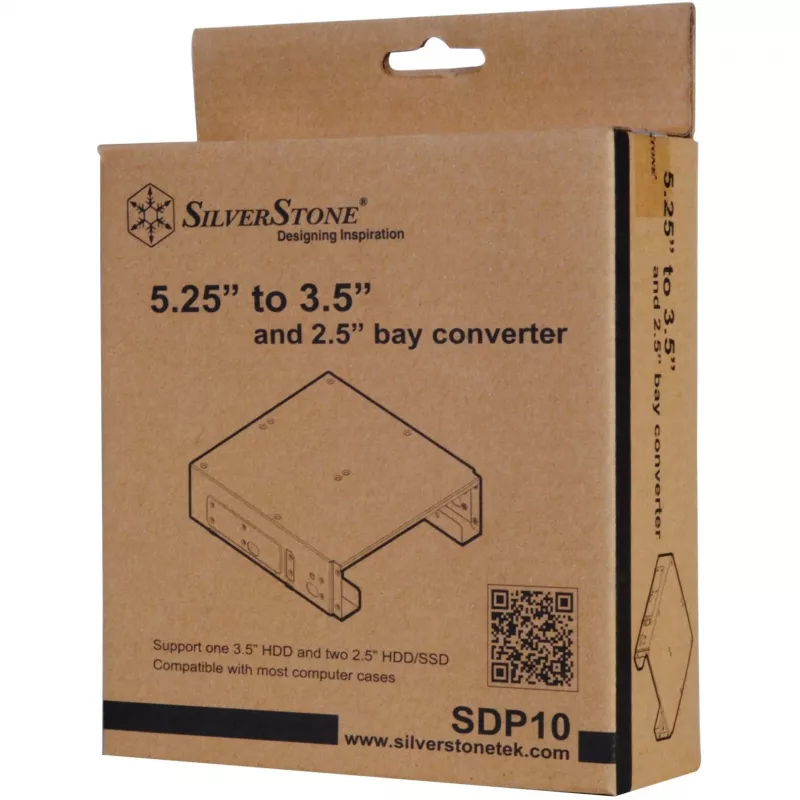

HDD Cage Silverstone SDP10

The Silverstone SDP10 HDD Cage is a 5.25" to 3.5" drive bay bracket that enables installation of one 3.5" hard drive plus up to two additional 2.5" drives or SSDs (9.5 mm thickness). Constructed from steel with a black finish and compact dimensions (148 mm W × 152.8 mm D × 41.3 mm H), it provides a secure and organized mounting solution for adding storage to systems with available 5.25" drive bays.

Advantages

The SDP10 is made of durable steel and fits in standard 5.25" bays, allowing efficient use of internal space. It supports one 3.5" drive and two 2.5" drives or SSDs, offers a compact profile for easy installation, and follows Silverstone quality standards for reliable drive mounting.

Suitable for

• Desktop PC builds with free 5.25" drive bays
• Systems requiring additional internal HDD or SSD mounting
• Home or office computers needing organized drive installation

Key specifications

• Model: Silverstone SDP10 (SST-SDP10B)
• Compatibility: converts 5.25" bay to 3.5" + two 2.5" mounts (2.5" drives up to 9.5 mm thickness)
• Material: Steel
• Colour: Black
• Dimensions: 148 mm × 152.8 mm × 41.3 mm (W × D × H)
• Weight: 0.28 kg
• EAN: 4710007220153

How to use

Mount the SDP10 into an available 5.25" bay using the case's standard mounting screws. Secure the 3.5" drive into the main bracket position, then attach up to two 2.5" drives or SSDs (maximum 9.5 mm thickness) in the designated mounting locations. Connect power and data cables to each drive and verify that the system recognizes the installed storage devices.

Recommendations

The bracket is intended for internal use in compatible computer cases; ensure drives are properly secured and cables are routed to avoid blocking airflow. Verify compatibility with your case's 5.25" bay depth before installation.
