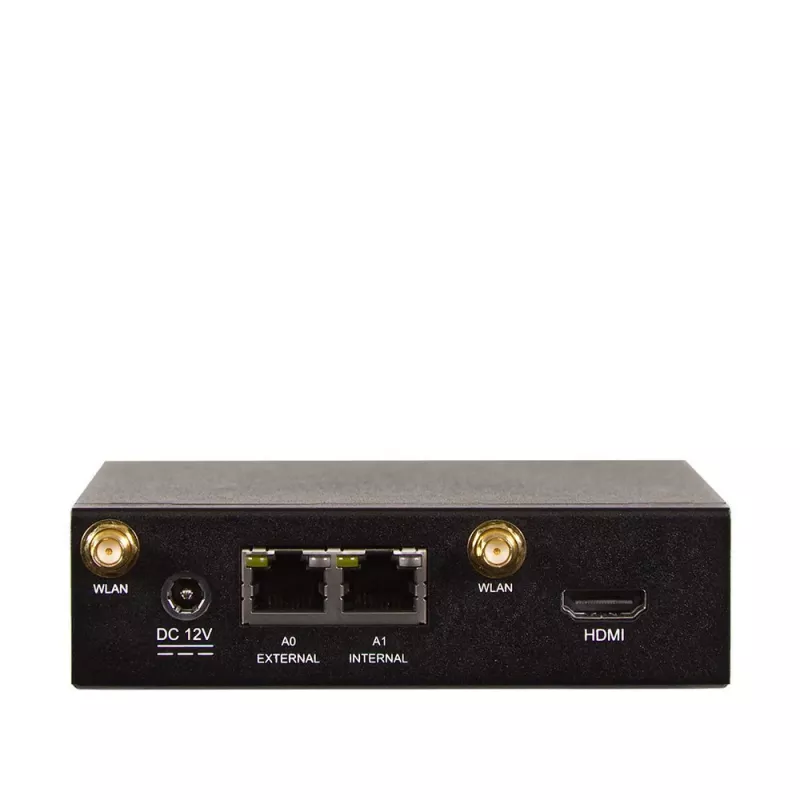

Hardware firewall Wortmann AG TERRA 6466370 Desktop — 1.85 Gbit/s throughput, dual-band Wi‑Fi, 10 users

TERRA 6466370 is a desktop hardware firewall from Wortmann AG designed for small offices and branch networks requiring combined wired and wireless perimeter protection. The appliance provides firewall throughput up to 1.85 Gbit/s and VPN throughput of 0.31 Gbit/s, supports TLS interception at up to 300 MB/s, and uses AES algorithms for secure encrypted connections. Integrated Gigabit Ethernet ports handle wired traffic while built‑in external antennas deliver dual‑band Wi‑Fi (2.4/5 GHz) compatible with 802.11b/g/n/ac/a for up to 10 concurrent users.

Advantages

The device offers high firewall throughput for a compact desktop form factor and separates VPN and TLS inspection performance metrics to help plan secure remote access and content inspection. Dual‑band Wi‑Fi eliminates the need for a separate access point in small deployments, and AES-based encryption ensures compatibility with common security standards. The combination of wired Gigabit connectivity and wireless coverage supports flexible network layouts and simplifies perimeter control for small teams and branch locations.

Suitable for

• Small office networks and home offices with up to 10 users
• Branch offices requiring secure VPN tunnels to central sites
• Environments needing TLS interception for content inspection and compliance
• Deployments where combined wired Gigabit and dual‑band Wi‑Fi connectivity is required

Key specifications

• Firewall throughput: up to 1.85 Gbit/s
• VPN throughput: 0.31 Gbit/s
• TLS interception/transparency: up to 300 MB/s
• Encryption: AES algorithms supported
• Ethernet: wired Gigabit Ethernet connectivity
• Wireless: dual‑band Wi‑Fi (2.4 / 5 GHz), 802.11b/g/n/ac/a
• Maximum users (wireless): up to 10 concurrent users
• Form factor: desktop

How to use

Install the desktop appliance in a secure, ventilated location near your network gateway. Connect WAN and LAN links to the Gigabit Ethernet ports and power up the unit. Use the vendor web interface or management console to configure firewall rules, VPN profiles, and TLS inspection policies according to your security requirements. Enable and configure the dual‑band Wi‑Fi with SSIDs, encryption settings, and user limits to provide wireless access for up to 10 users. Monitor throughput and inspection statistics to balance performance and inspection depth.

Recommendations

For optimal performance, separate heavy TLS inspection jobs from large VPN tunnels where possible and monitor CPU/throughput metrics. Use AES-based VPN profiles and keep firmware up to date. In environments with more than 10 concurrent wireless users, consider deploying an additional access point or upgrading to a higher-capacity appliance.
