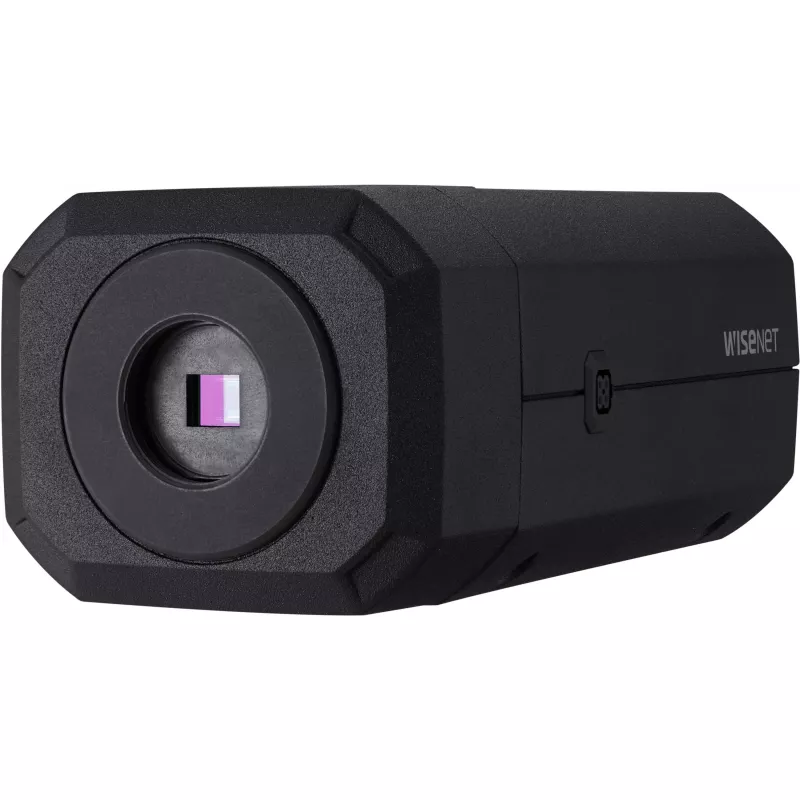

HANWHA TECHWIN Hanwha Wisenet XNB-6003 2MP Box IP Camera with 150dB WDR, H.265, PoE

The Hanwha Wisenet XNB-6003 is a high-performance 2MP box IP camera from the X-Series PLUS line, designed for professional surveillance applications. Featuring a 1/2.8" CMOS sensor, it delivers Full HD 1920x1080 resolution at up to 60fps with exceptional image quality. With 150dB true WDR, WiseStream II compression, and advanced video analytics, this camera ensures reliable monitoring in challenging lighting conditions.

Advantages

Exceptional low-light performance with 0.008 Lux color and 0.0008 Lux B/W minimum illumination. The camera supports H.265/H.264 dual codec for bandwidth efficiency, and includes intelligent analytics such as defocus detection, directional detection, fog detection, virtual line, enter/exit, loitering, motion detection, object detection, tampering, audio detection, and shock detection. Built-in gyro-based digital image stabilization (DIS) and SSNRV noise reduction further enhance video clarity.

Suitable for

• Retail stores and shopping malls
• Office buildings and corporate facilities
• Warehouses and logistics centers
• Educational institutions and campuses
• Critical infrastructure and perimeter security

Key specifications

• Image Sensor: 1/2.8" 2MP CMOS
• Max Resolution: 1920x1080 (Full HD)
• Max Frame Rate: 60fps at all resolutions (H.265/H.264)

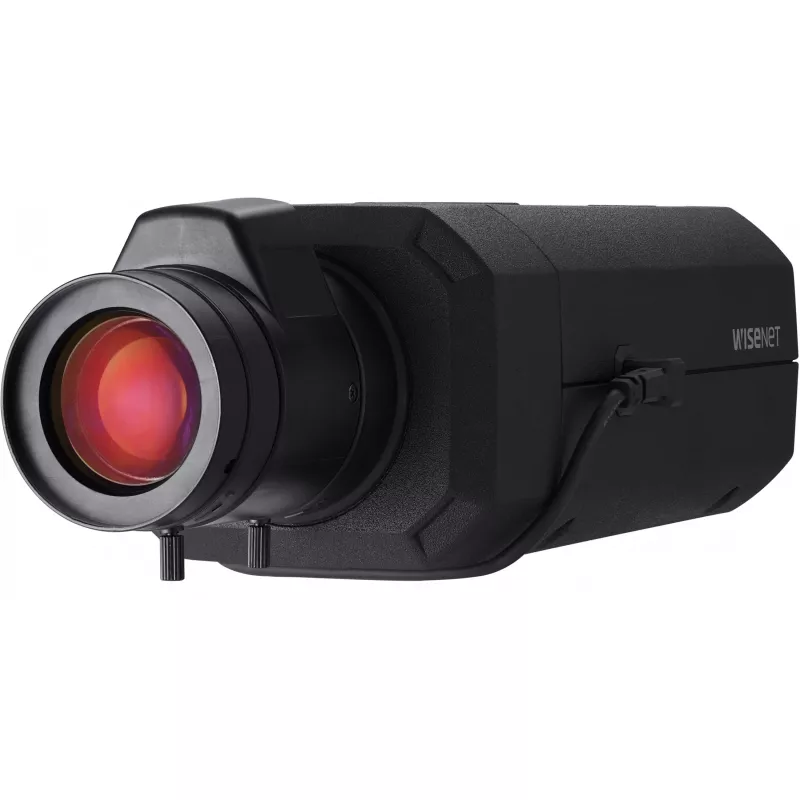

• Lens Mount: C/CS-mount (lens not included)
• Video Compression: H.265, H.264, MJPEG
• Wide Dynamic Range: 150dB
• Minimum Illumination: Color 0.008 Lux (F1.2, 30IRE), B/W 0.0008 Lux (F1.2, 30IRE)
• Day & Night: Auto (ICR)

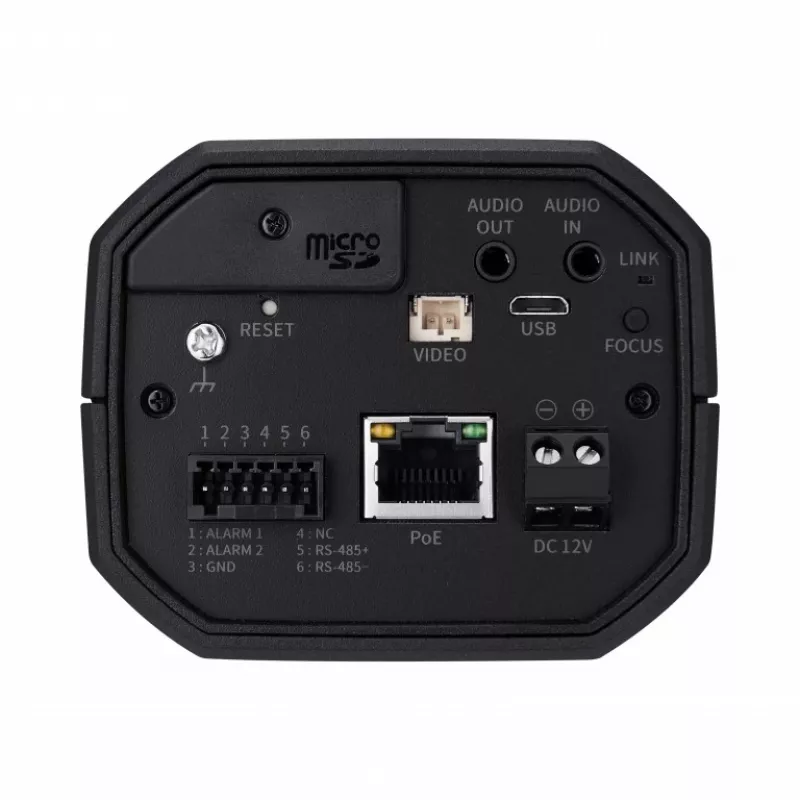

• Audio: Two-way (Mic in/Line in, Line out)
• Local Storage: SD/SDHC/SDXC slot (Max. 256GB)
• Network Interface: RJ-45 (10/100Base-T)
• Power Input: PoE (IEEE802.3af, Class3), 12V DC
• Power Consumption: Max 8.5W (PoE), Max 7.5W (12V DC)
• Operating Temperature: -10°C to +55°C (14°F to +131°F)
• Digital Noise Reduction: SSNRV (2D+3D)
• Digital Image Stabilization: Yes (Gyro sensor)
• WiseStream: WiseStream II
• Hallway View: Yes (90°/270° rotation)
• Cyber Security: TPM (FIPS 140-2 Level 2)

Recommendations

For optimal performance, pair with a compatible C/CS-mount lens and use a PoE switch for simplified installation. The camera is ideal for indoor and outdoor use with appropriate housing.
