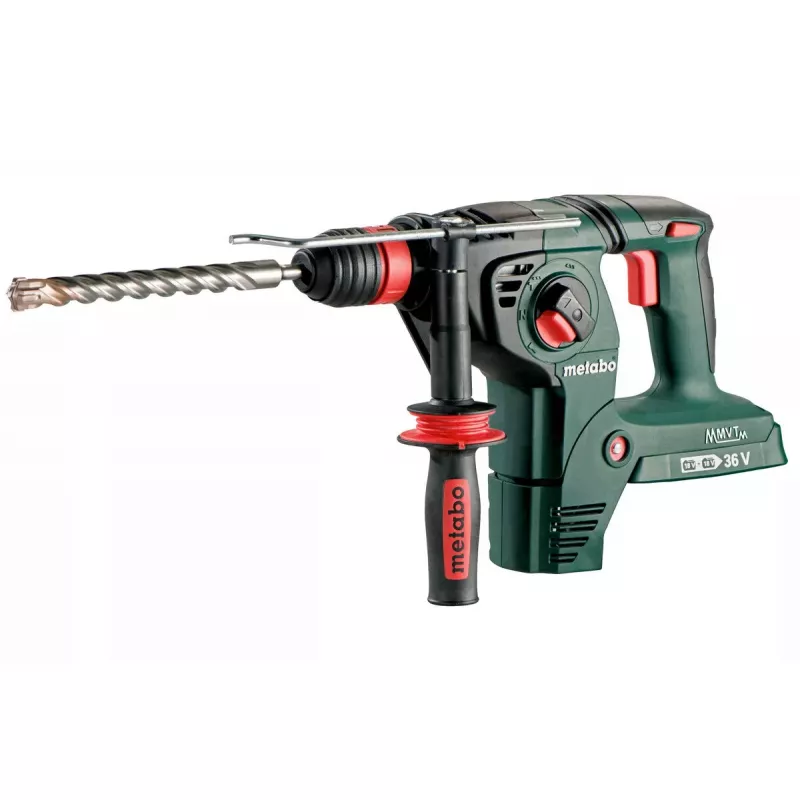

Hammer Drill Metabo KHA 36-18 LTX 32 1100 RPM 3.1 J 18 V

The Metabo KHA 36-18 LTX 32 is a cordless combination hammer for hammer drilling, drilling without impact and chiselling. It delivers up to 3.1 J impact energy, a rated speed of 1100 RPM and is compatible with Metabo 18 V battery packs operated in pairs (36 V). The tool is designed for heavy-duty drilling in concrete (max drilling diameter up to 68 mm) and for general drilling in wood and metal using the quick-change chuck system.

Advantages

The hammer drill offers Metabo VibraTech (MVT) with an integrated damping system and side handle to reduce vibrations, an ergonomic housing shape that allows chiselling without the side handle, and Metabo Quick for rapid switching between SDS Plus hammer chuck and keyless chuck. Variospeed (V) electronics enable adjustable speeds for different materials, while the Metabo S-automatic safety clutch mechanically decouples the drive if the tool binds. Battery packs include a capacity display to check the remaining charge.

Suitable for

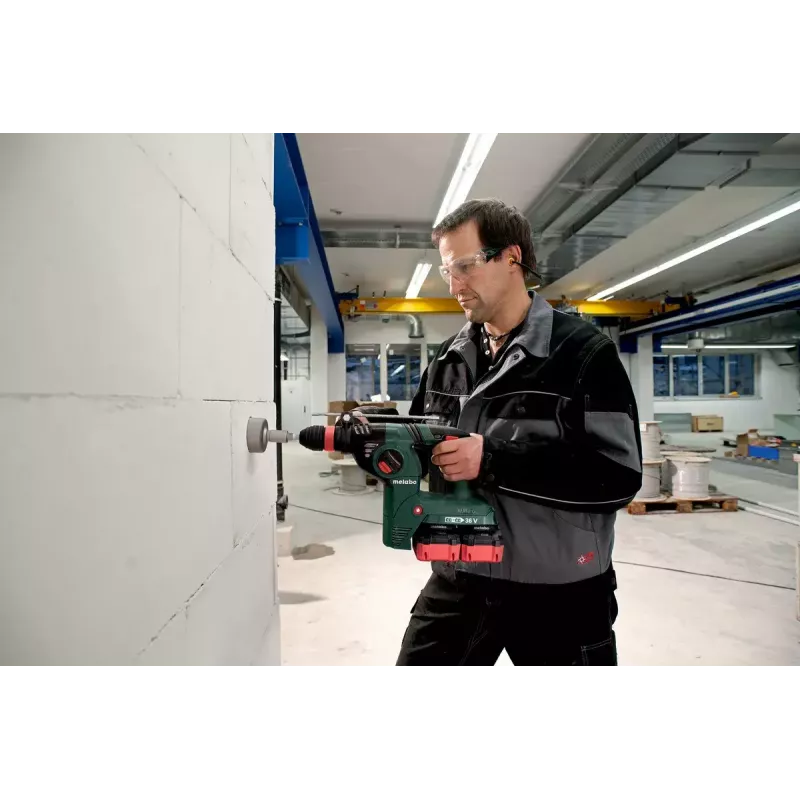

• Hammer drilling in concrete and masonry
• Drilling in wood and metal (with keyless chuck)
• Chiselling and light demolition work
• Applications on sites where cordless operation and portability are required

Key specifications

• Brand: Metabo
• Model: KHA 36-18 LTX 32
• MPN: 600796840
• EAN: 4007430318053
• Rated speed: 1100 RPM
• Impact energy: 3.1 J
• Power supply: Two 18 V Li‑Ion battery packs (36 V operation)
• Max drilling diameter in concrete: 68 mm
• Weight: 4.7 kg

How to use

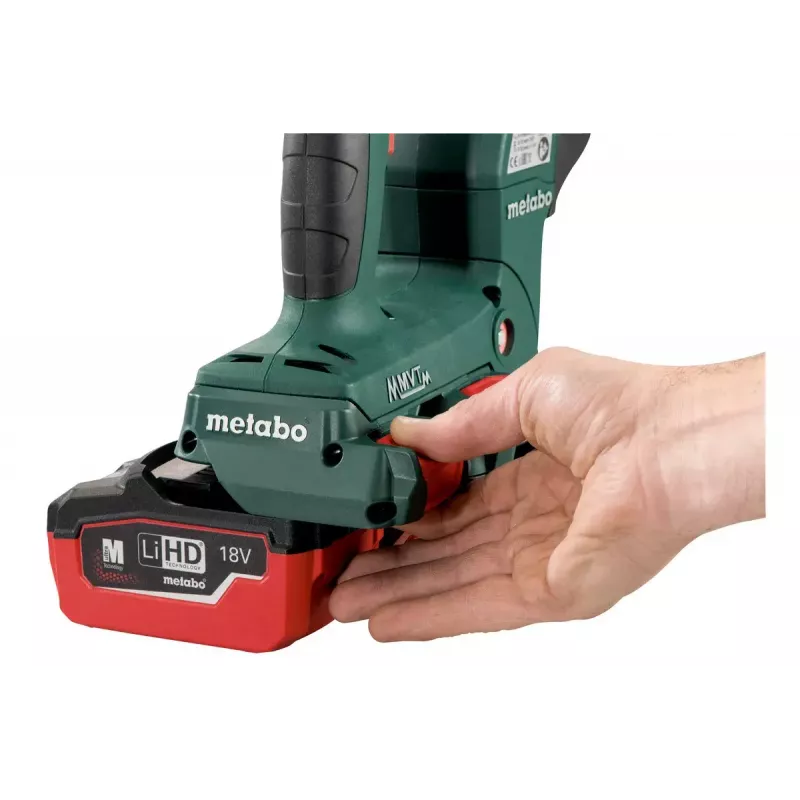

Fit two compatible Metabo 18 V battery packs and select the appropriate chuck: SDS Plus for hammer drilling or the keyless chuck for drilling in wood and metal. Use Variospeed to set a suitable speed for the material and engage the hammer function for masonry; switch to percussion-off for drilling without impact. Hold the tool with both hands and use the side handle when performing hammer drilling to reduce vibration and maintain control. Observe the Metabo S-automatic safety clutch behaviour: if the drill jams, the drive will decouple mechanically.

Recommendations

Use appropriate drill bits for concrete, wood or metal, wear eye and hearing protection, and select the correct speed and hammer setting for the material. For prolonged chiselling, use the side handle and take breaks to reduce vibration exposure. Verify battery charge via the capacity display before starting work.
